120
E
Fuses
The electric system components are protected by eight
fuses located in the fusebox. Only six fuses are connected to
the system, two are spares.
Refer to the table below to identify the circuits protected by
the various fuses and their ratings.

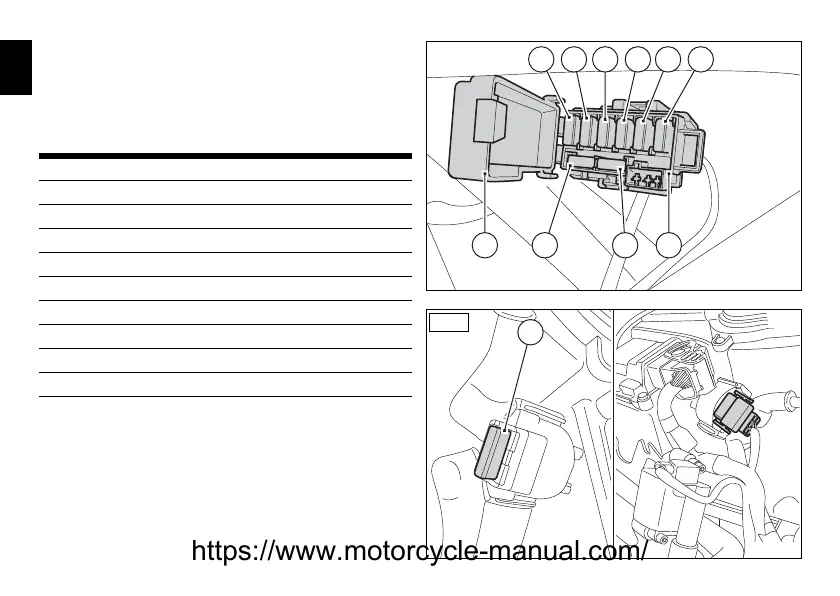

The main fuse box (9) is located on the right side of the
frame.
Remove the protective cover (A) to access the fuses.
In addition to the fuse box, the two ABS fuses (10) are
located near the regulator fuse.
KEY TO THE FUSEBOX
Pos. El. item Rating
1 Key ON 10 A
2 Side lights, high/low beam 15 A
3 El. item 15 A
4 Instrument panel 5 A
5 Injection 20 A
6ECU 5 A
7 Spare 20 A
8 Spare 15 A
10A
15A
15A
15A
20A
20A
5
A
5A
A 97 8
1 2 3 4 5 6
fig. 109
11
fig. 110
