Seat lock
Opening

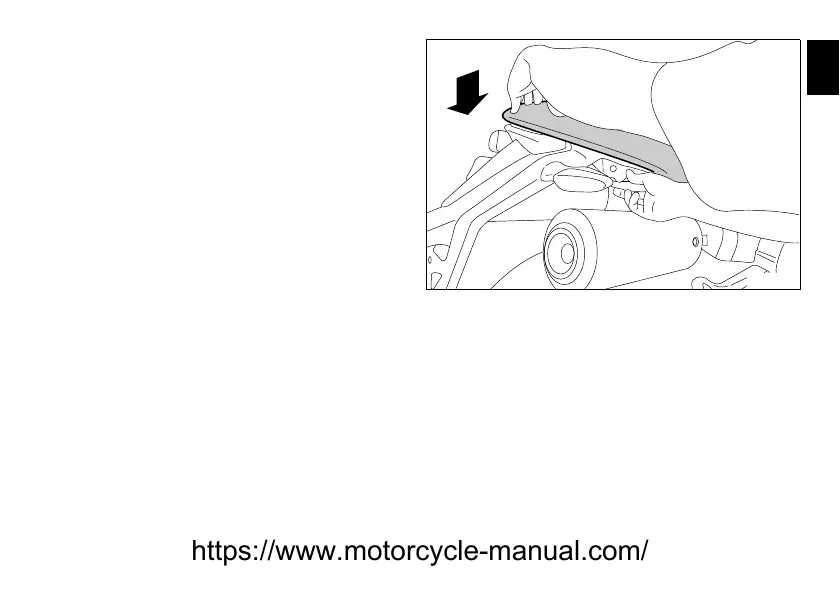

Insert the key in the lock and simultaneously apply
downward pressure in the area of the catch to release the
pin. Pull the seat backwards to release it from the front
catches.
Closing
Make sure all parts are correctly arranged and secured in the
underseat compartment. Insert the front ends of the seat
base under the U bolt in the frame, then push the rear end of
the seat until you hear the bolt in the lock click into place.
Make sure that the seat is firmly secured to the frame and
remove the key from the lock.
