Instrument panel (Dashboard)
Instrument panel

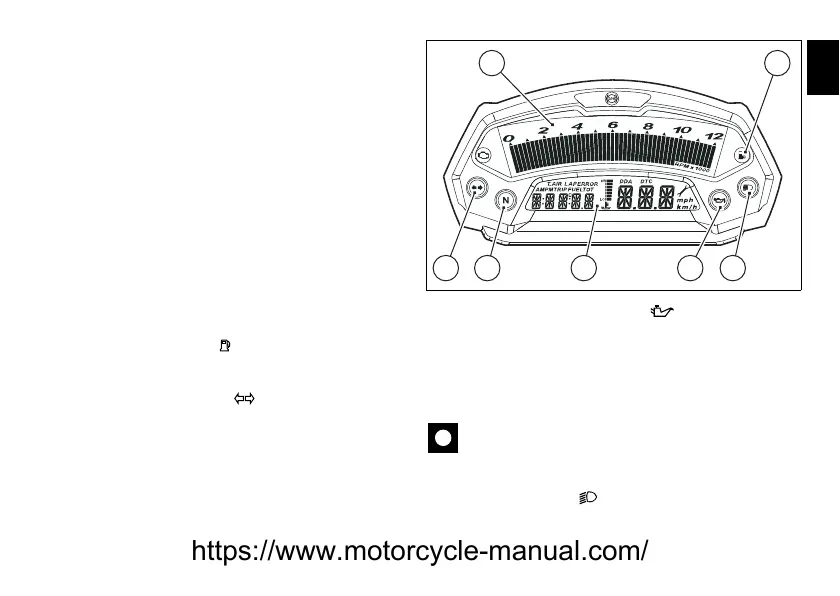

1) LCD, (see page14)
2) REVOLUTION COUNTER (rpm).
Indicates engine revs per minute.
3) Neutral light N
(green).
Illuminates when the gearbox is in neutral.
4) FUEL WARNING LIGHT (AMBER).
Comes on when fuel is low and there are about 3.5 litres of
fuel left in the tank.
5) TURN INDICATOR LIGHTS (GREEN).
Illuminates and flashes when the turn indicator is in
operation.
If a turn indicator does not work (ex. burnt out bulb) its
incorrect operation is signalled by making the light flash
twice as fast as in comparison to correct operation.
6) ENGINE OIL PRESSURE LIGHT (RED).
Illuminates when engine oil pressure is too low. It briefly
comes on when the ignition is switched to ON and normally
goes out a few seconds after engine starts. It may come on
briefly if the engine is very hot, but should go out again as
engine speed increases.
Important
If this light (6) stays on, stop the engine to avoid
serious damage.
7) HIGH BEAM LIGHT (BLUE).
Illuminates when the high beam headlight is on.
