12
E

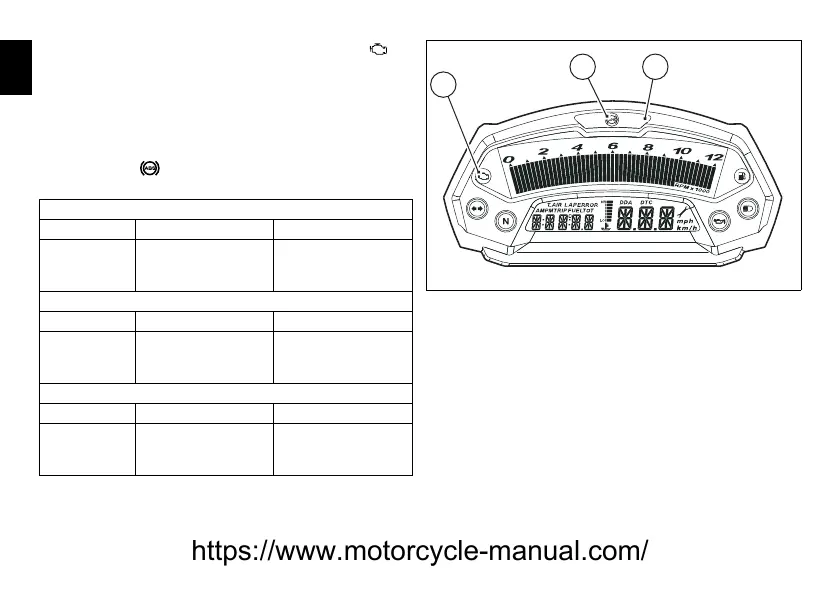

8) “VEHICLE/ENGINE DIAGNOSIS - EOBD” LIGHT
(AMBER YELLOW).
It turns on in the case of an engine or motorcycle error; in
some cases the engine will be locked.
9) OVER REV. INDICATOR LIGHTS
It comes on steady when the first rev limiter threshold (*) is
reached. Starts flashing when the rev limiter is reached.
10) ABS LIGHT (AMBER YELLOW) (for Monster 796
ABS only).
(*) depending on the model, each calibration of the Engine
Control Unit may have a different “setting“ for the
thresholds that precede the rev limiter and the rev limiter
itself.
(**) The ABS should be considered actually disabled only if
the light continues to flash after starting the engine.
Engine off / speed below 5 Km/h
Light off Light flashing Light steady
-
ABS disabled with the
menu function
“DISAB ABS” (**)
ABS enabled but not
functioning yet
Engine on / speed below 5 Km/h
Light off Light flashing Light steady
-
ABS disabled with the
menu function
“DISAB ABS”
ABS enabled but not
functioning yet
Engine on / speed above 5 Km/h
Light off Light flashing Light steady
ABS enabled
and functioning
ABS disabled with the
menu function
“DISAB ABS”
ABS disabled and not
functioning due to a
problem.
