2.19 Change-over to Cutting Before or After Sewing
Caution Risk of Injury !
Pull the mains plug.
Conduct the change-over to "cutting before" or "cutting
after sewing" only with the machine turned off vornehmen.
The change-over from "cutting before" to "cutting after sewing" is only possible with
sub-classes with the appropriate sewing device (E no.) (see Device Table in Chapter
1.4).

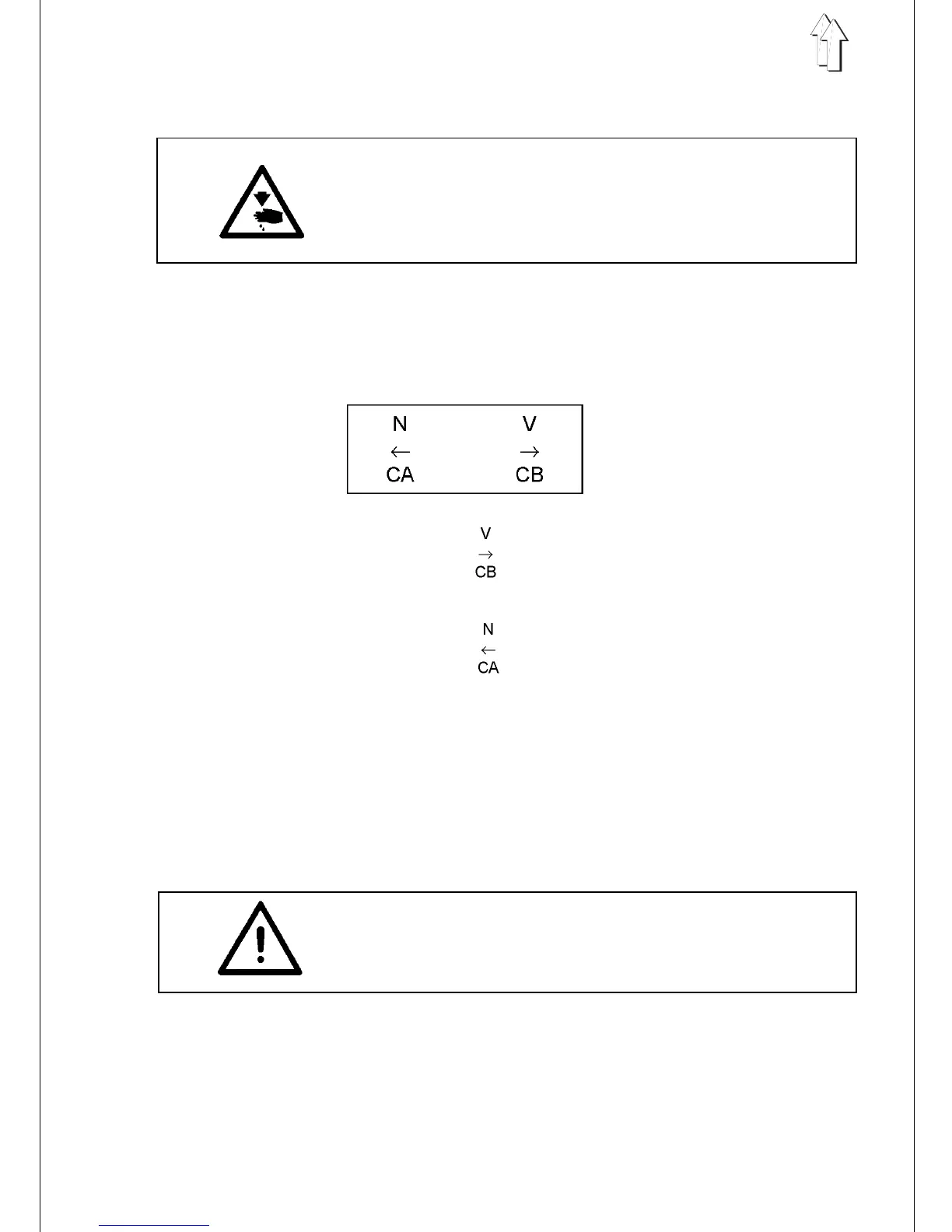

All machine elements which must be adjusted are marked by the following bi-lingual
sticker with the following meaning:
Adjustment in direction of arrow = cutting before sewing
Adjustment in direction of arrow = cutting after sewing
Note:
CA and CB are the English language abbreviations.
CA = Cut after CB = Cut before
Change-over to "cutting before" or "cutting after sewing"
The settings for cutting before and cutting after sewing are each limited by two stops.
ATTENTION !
The stops have been set.
They may not be altered !
1. Timing of the cut
–
Loosen screw 2.
–
Slide the turn-off bolt 1 in the appropriate arrow direction.
Press the high-speed wheel inward for easier setting of the turn-off bolt.
–
Tighten screw 2 again.
67
