5.6.2 Laying the Wiring

–

Pull the hand crank 17 from the shaft end.

–

Loosen nut 16 (

ATTENTION

: lefthand thread)

–

Loosen nut 13.

–

Pull off the high-speed wheel 15 with the drive bush 14.

–

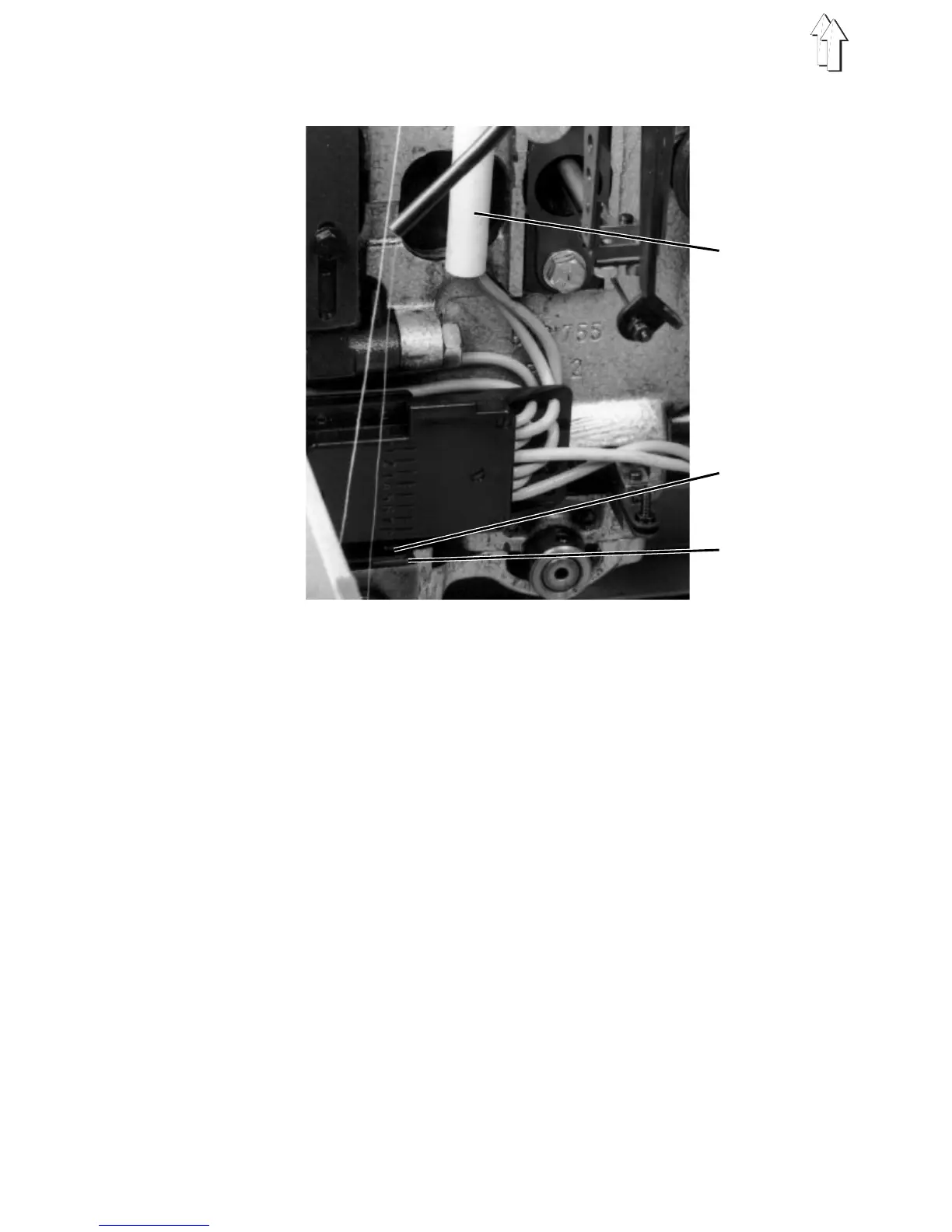

Attach the holder tube 11 with cables 1, 4 and 7 to the cover plate.

–

Reattach the high-speed wheel 15 again and tighten nuts 13 and 16.

Set a clearance of 1 mm between the latches (see Service Instructions 558).

–

Replace hand crank 17 again and let catch.

–

Mount angle 20 on the machine housing under the screws 21.

Thereby do not remove the baffle.

–

Mount the triangle plate 19 with distributor L1 on angle 20.

–

Fasten holder tube 1 with a hose clampto the machine housing.

–

Lay the cables 2 and 3 to the right.

(Continuation see next page)
