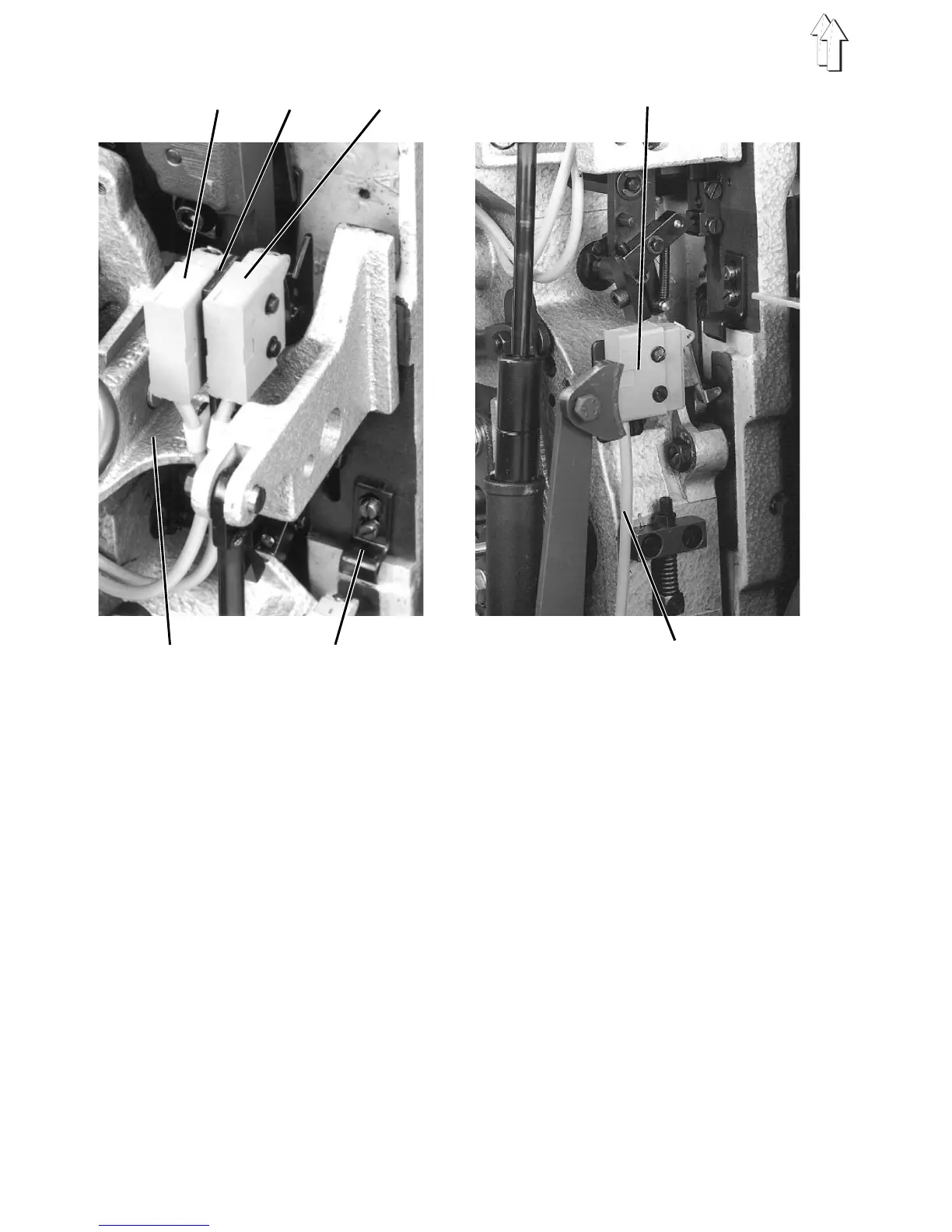

Fasten angle 21 with switches b1 and b2 to the support 22.
–
Attach the cable clips.
–
Mount switch b4 to the outside of the control curve housing.
–
Secure the cable 6 with a clamp.
–
Mount operator 23 for switch b4 centered in its slot under the material support
plate.
