15
DY CAT 48
Generator
As an option, on the boat can be installed a Generator of 12 kW of power. The generator is located
in the starboard engine room. Its function is to re-supply the batteries via the chargers and supply
220 V electricity on board.
STARTING OPERATION

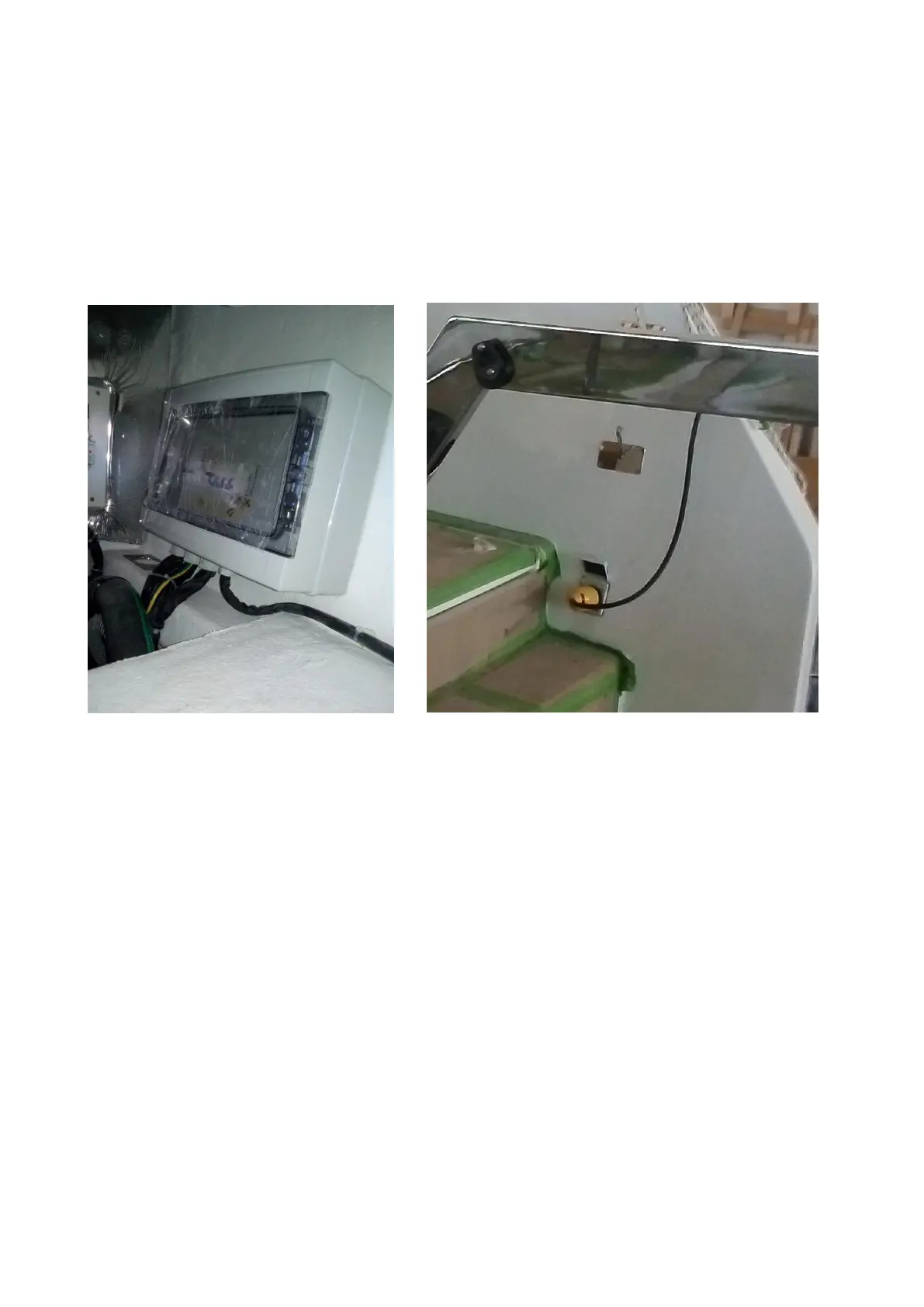

After having turned ON the cut-outs located in the starboard engine room, the generator can be
turned on either on the generator itself or using its control located in dinette near the charter table.
1. Oil level control (ideal level: 2/3 MAX). The level should be about 2/3 of the maximum level
of a cold engine. Further, if installed, the oil level of the oil-cooled bearing must be controlled
before each start - see sediment bowl at generator front cover.
