SECTION 5 | CONTROLS AND INDICATORS
403-624-00 P220 Pneumatic Ultrasonic Press System USER MANUAL
Press Controls and Indicators

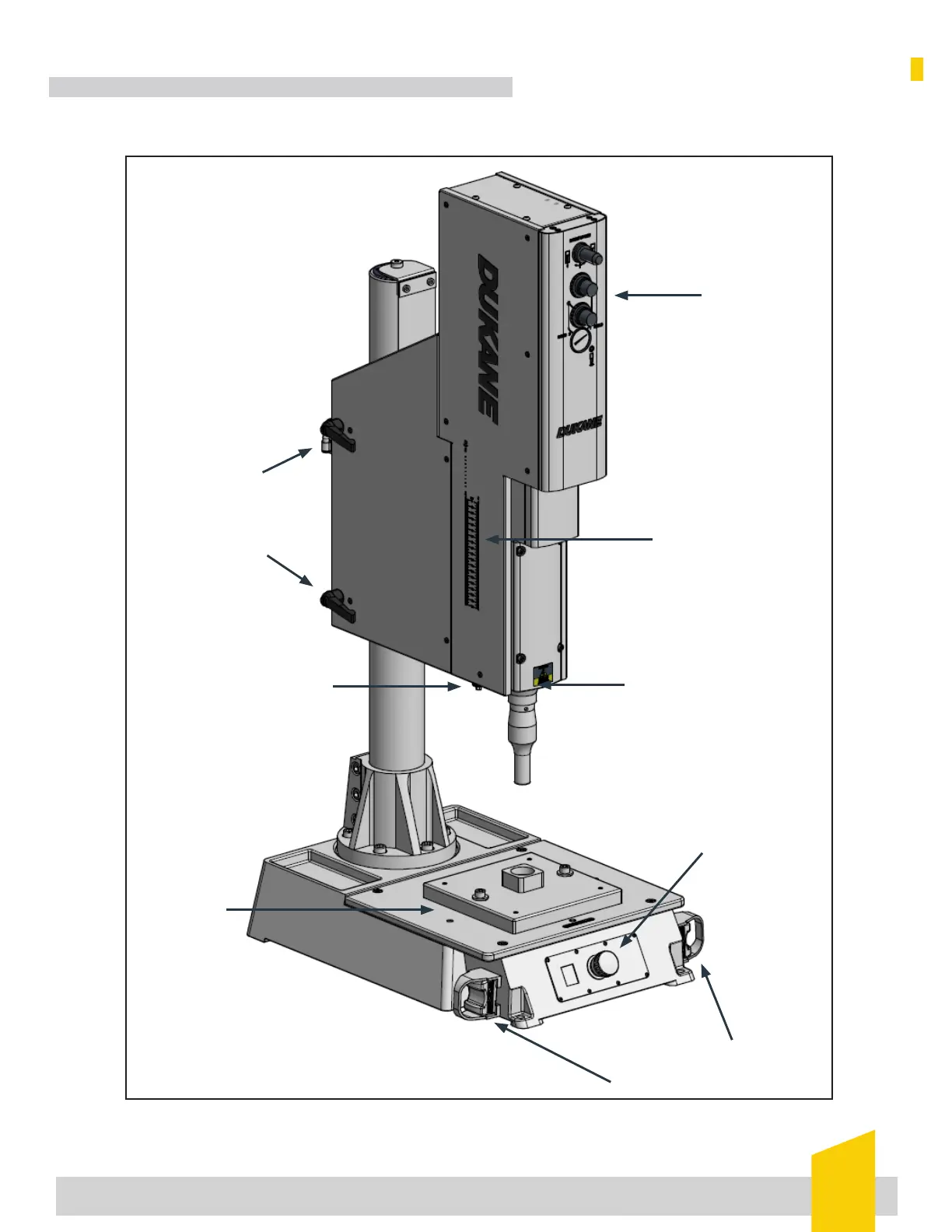

Figure 5-2 Thruster, Column, and Base
COLUMN
LOCK
HANDLES
HORN
PNEUMATIC
CONTROLS
AND GAUGE
FIXTURE
E-STOP
OPERATIONAL
SWITCHES
POSITION
INDICATORS
MECHANICAL STOP
