Dunkirk DKVLT-050 - Page 27

27

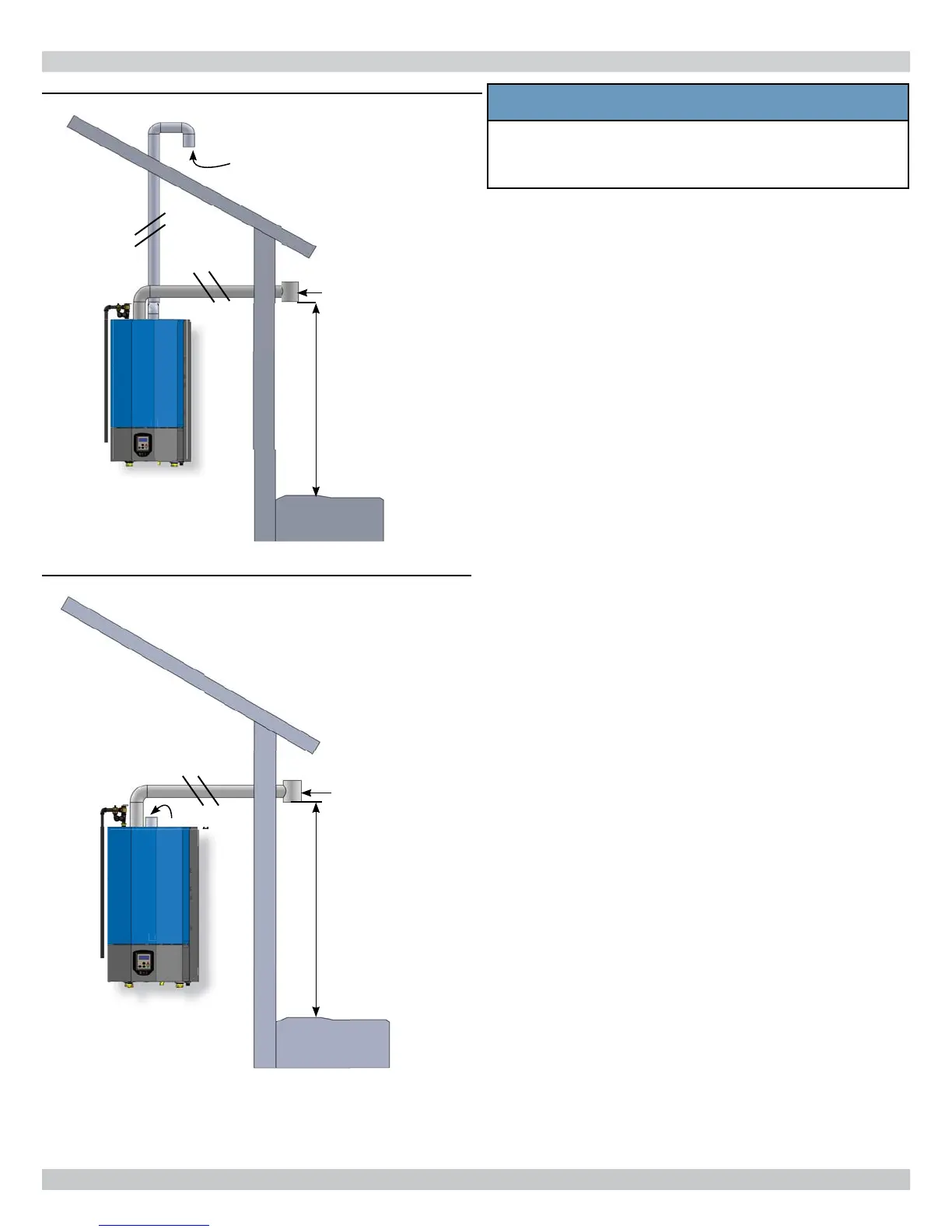

FIGURE 6-10 Flue on Sidewall, Combustion Air on Roof
FIGURE 6-11 Flue on Sidewall, Inside Combustion Air
Combustion
Air
Vent
12" (305mm)
Anticipated
Snow Line
6 - COMBUSTION AIR AND VENT PIPING
NOTICE
Confi gurations of single pipe vent with fl ue on the
sidewall, requires a tee as the vent terminal. See
fi gures 6-10 and 6-11.
Maintain 12"(305mm) US
(18"(457mm) Canada)
clearance above highest
anticipated snow level 24"
(610mm) above roof
Ground Level
12" (305mm)
Anticipated
Snow Line
Vent
Combustion
Air
Ground Level
Air
A
A
