1-9
11C-M12M0-0004-0
1-6. Folding Conveyance Mechanism
The flat belts sandwich and convey the paper single-folded by the folding roller.
Precautions on replacing the flat belt
Replace taking note of the rotating direction of the flat belt. (Arrow at the back of the flat belt)
Replace the flat belt in pairs.
1-7. Stopper Mechanism
The timing belt moves forward and backward from the rotating movements of the stepping motor, and the stopper
moves up and down.
Adjustments

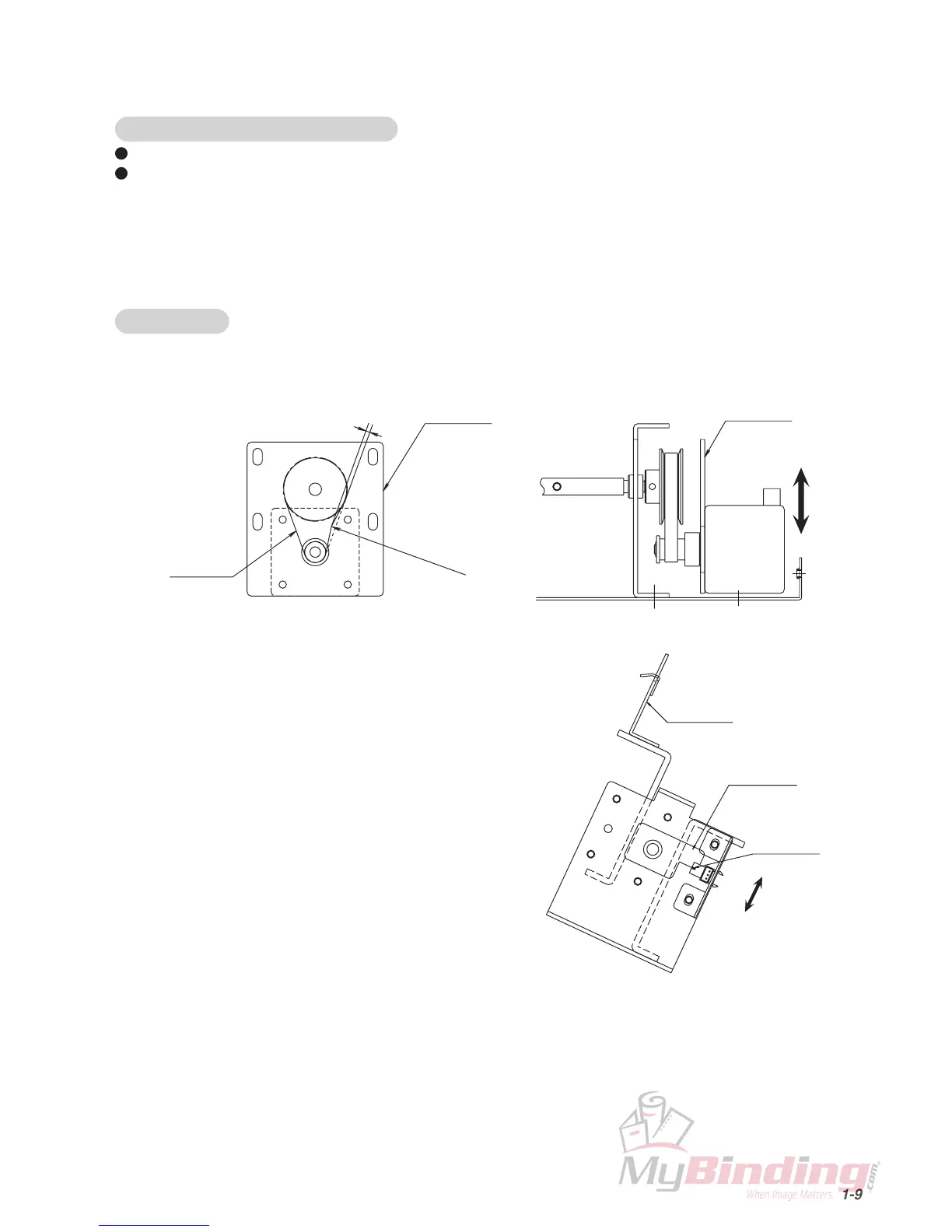

(1) Adjusting the tension of the STS belt
Adjust the position of the plate so that the belt slacks by 2 mm when a pressure of 1.96 N (200 gf) is applied.
Plate
11C-3644X
STS belt
014-10408
2mm
1.96 N (200 gf)
Plate
11C-3644X
(2) Adjusting the position of the stopper home
sensor
When the stopper ST is at the upper limit position,
adjust the photointerrupter so that the plate comes
to the position of the optical axis.
Optical axis
Stopper ST
11C-3607X
Plate
11C-3640X
To Next Page
