Duplo DocuCutter CC-330 Service And Parts Manual

19

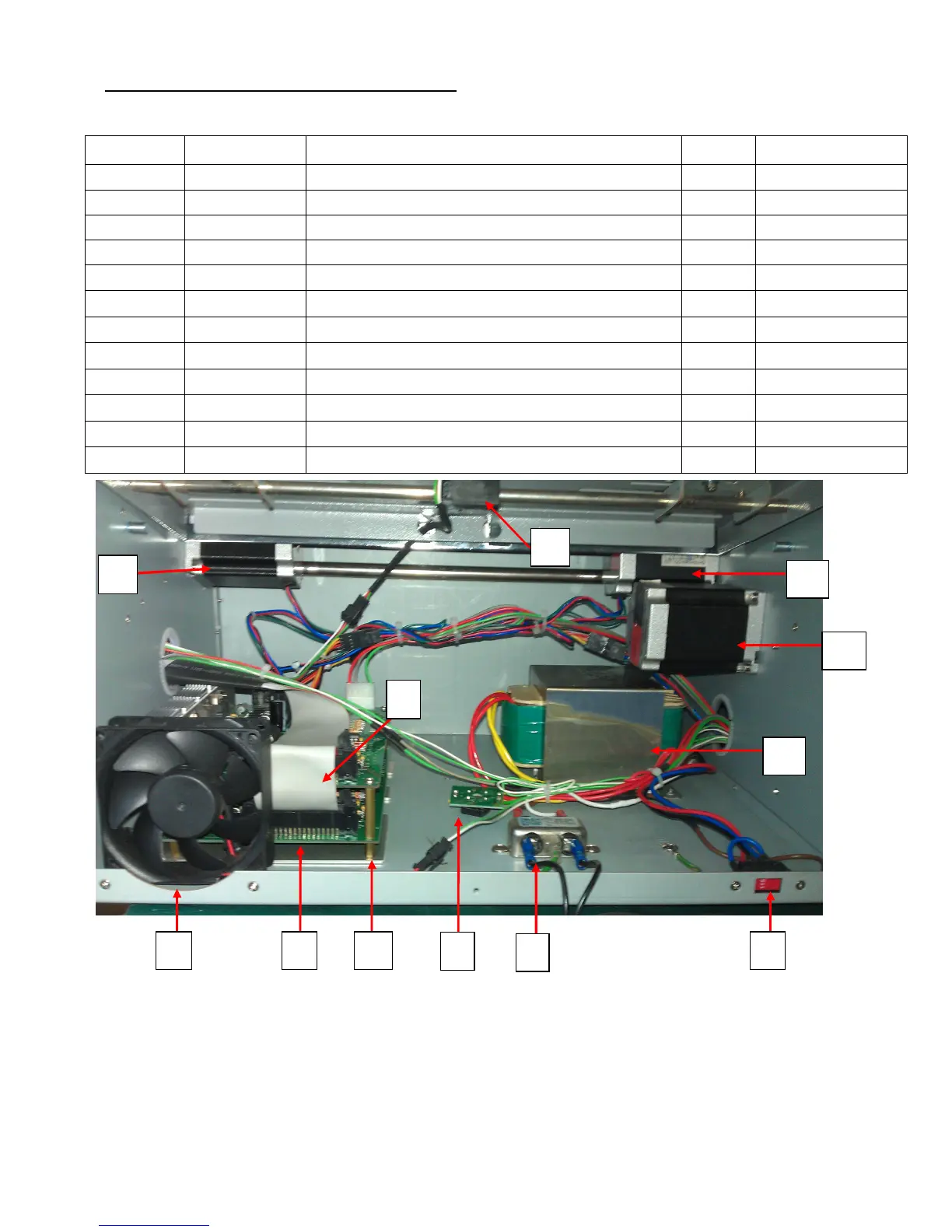

. PARTS UNDERNEATH OF THE FRAME
Index P/N Part Name Qty Remarks
1.5.01 00A-000-0207
Sensor, Black 1
1.5.02 00M-000-0403
Motor, SQ, 3A, 2.58V 1
1.5.03 00F-000-0003 Fan, DC 12V 1
1.5.04 00A-000-1402
Asm, PCB, Driver 2
1.5.05 00A-000-0161
Asm, Driver Box 1
1.5.06 00C-000-0081 Cable, 34P, Driver to Interface 1
1.5.07 00R-000-0301 Asm, PCB, Rectifier 1
1.5.08 00F-000-0401 Filter, AC Input 1
1.5.09 00S-000-6101 Switch, 115/230V Selectable 1
1.5.10 00T-000-1404 Transformer, 115/230V, 50/60HZ, SF-200 1
1.5.11 00M-000-0403
Motor, SQ, 75mm, 3A, 2.58V 1
1.5.12 00M-000-0403
Motor, SQ, 75mm, 3A, 2.58V 1
1
2
3 4 5
6
7
8
9
10
11
12
