Duplo DocuCutter CC-330 Service And Parts Manual

20

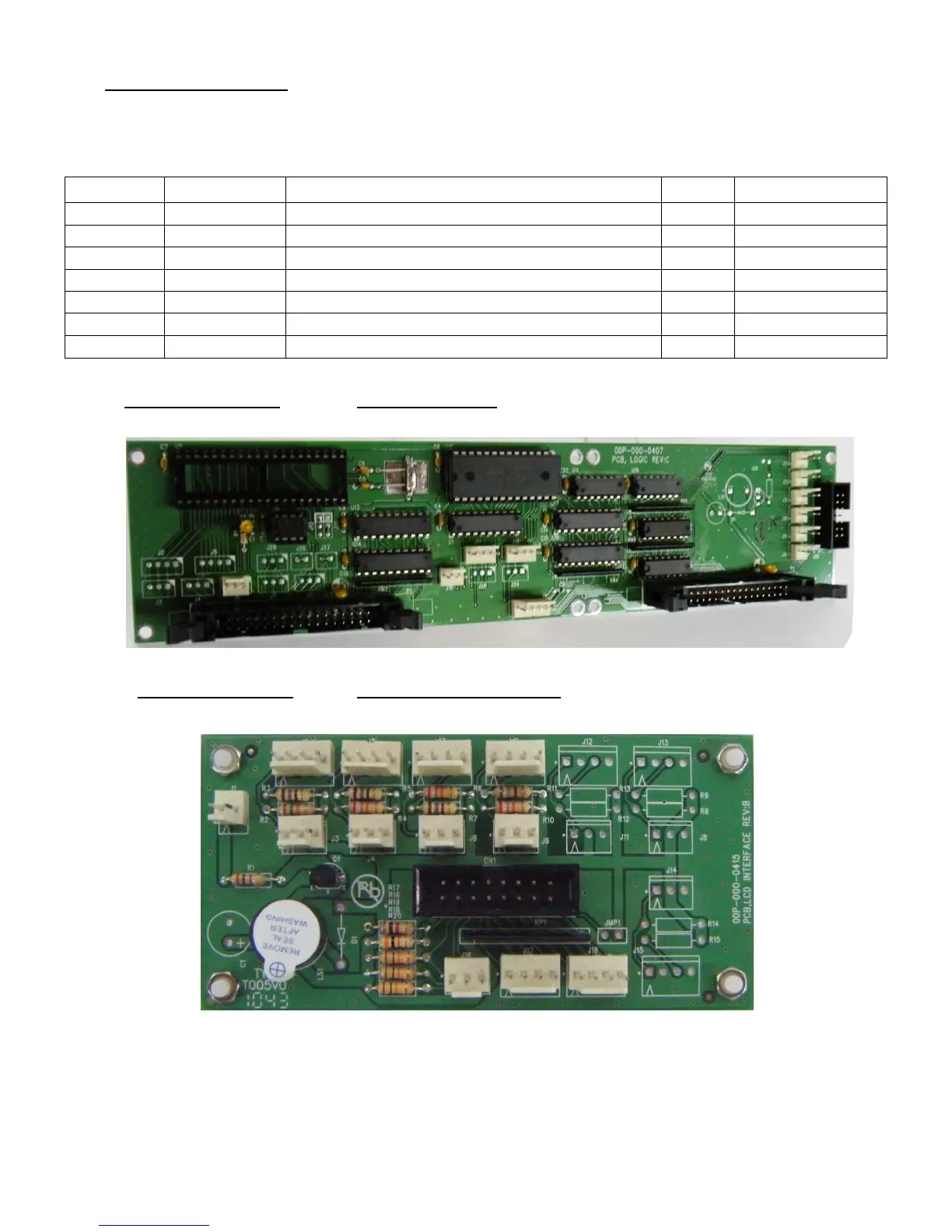

. ELECTRIC PCB ASM
P/N 00A-00C-1001 Assy, PWB, Logic , CC-330
P/N 00A-000-1601 Asm, PWB, LCD DISPLAY
Index P/N Part Name Qty Remarks
1.6.01 00A-00C-1001
Asm, PWB, Logic, CC-330 1
1.6.02 00A-000-1611
Asm, PWB, Display, LCD 1
1.6.03 00A-000-1121
Asm, PWB, Interface 1
1.6.04 00A-000-0161
Asm, Driver Box 1
1.6.05 00A-000-1211
Asm, PWB, Power 1
1.6.06 00A-000-1501
Asm, PWB, Control Panel 1
1.6.07 00A-000-1311
Asm, PWB, Relay, SF-205 1
