Duplo DocuCutter DPC-400 - Test Screen Interface; Test Screen Functions

18

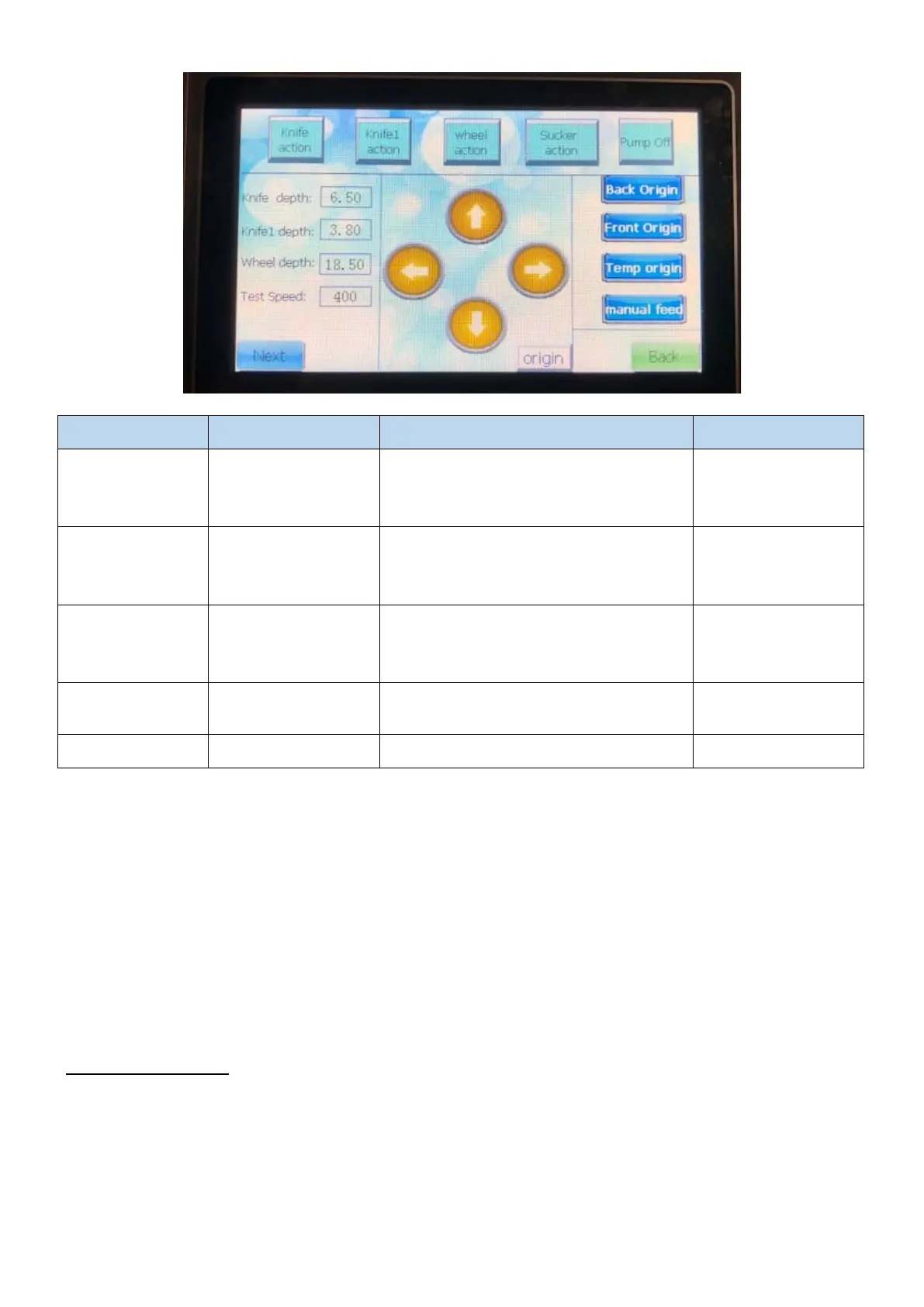

Test Motions Head Motion Depth Origin
Knife Action UP Arrow
Knife Depth: Adjusts the knife depth.
The higher the number the lower the
unit goes.
Back Origin: Head
Unit goes Feeder
postion
Knife1 Action DOWN Arrow
Knife1 Depth: Adjusts the Knife1
depth. The higher the number the
lower the unit goes.
Front Origin: Head
unit goes to Home
postion.
Wheel Action LEFT Arrow
Wheel Depth: Adjusts the Wheel
depth. The higher the number the
lower the unit goes.
Temp Origin: Sets
temporary home
postion.
Sucker Action RIGHT Arrow Test Speed: Speed of the Head Unit
Manual Feed: feeds
one sheet
Pump ON/OFF Origin
SETUP SCREEN
TOOLS TAB
