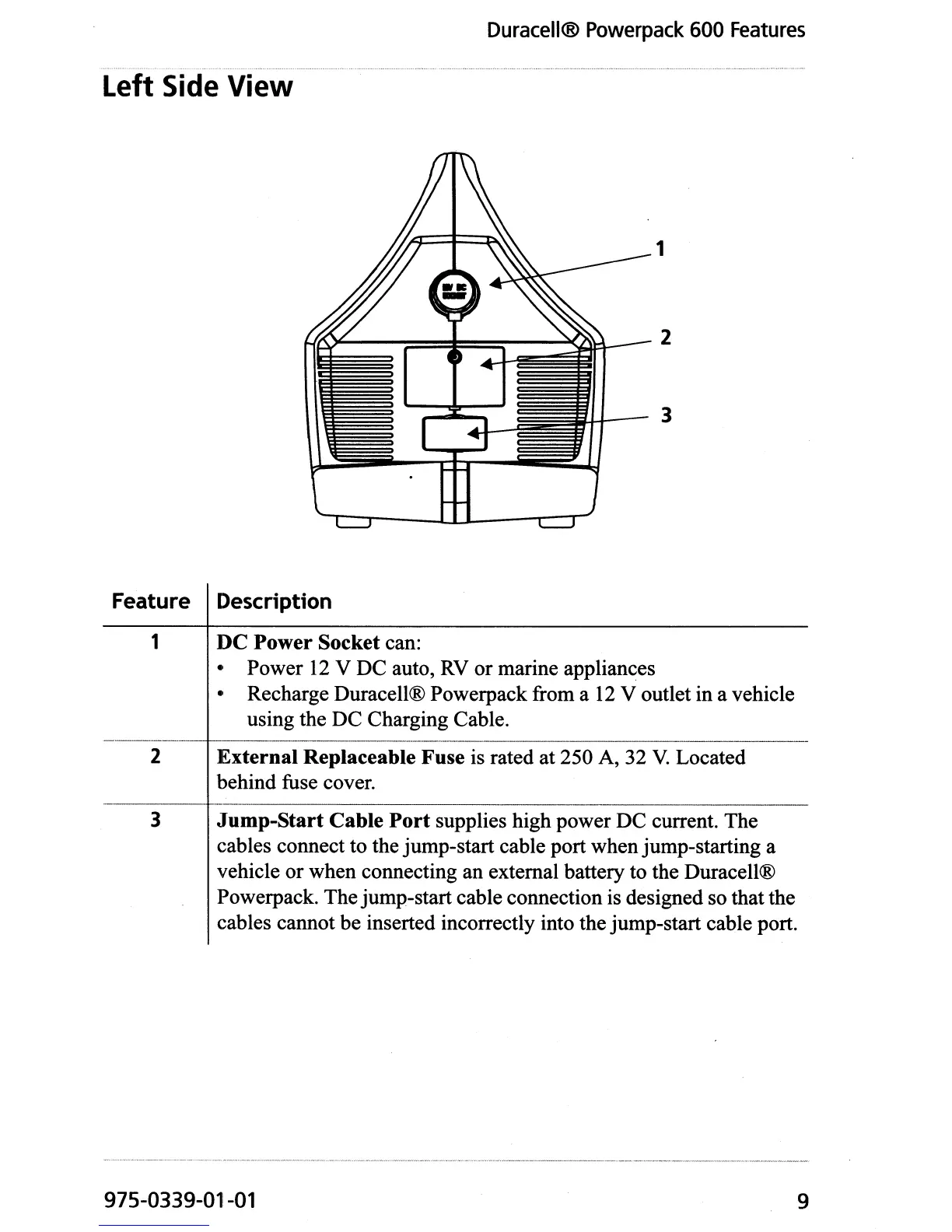

Duracell POWERPACK 600 - Left Side View

Duracell® Powerpack 600 Features
Left Side View
1
2
3
Feature Description
1 DC Power Socket can:
• Power
12 V DC auto, RV or marine appliances
• Recharge Duracell® Powerpack from a
12 V outlet in a vehicle
using the DC Charging Cable.
-------------- -------------
2 External Replaceable Fuse is rated at 250 A, 32 V. Located
behind fuse cover.
3 Jump-Start Cable Port supplies high power DC current. The
cables connect to the jump-start cable port when jump-starting a
vehicle or when connecting an external battery to the Duracell®
Powerpack. Thejump-start cable connection is designed so that the
cables cannot be inserted incorrectly into the jump-start cable port.
975-0339-01-01
9
