7 | Checking / setting parameters with D‑ESI 100
136
D-R 290
Setting path:
Sitemap > »Device (e.g. D‑R 290 ) > >
Common parameters > Current
output and Relay settings > Relay setup > [PARAMETER]
(Change value manually
/
Select settings from binary table)

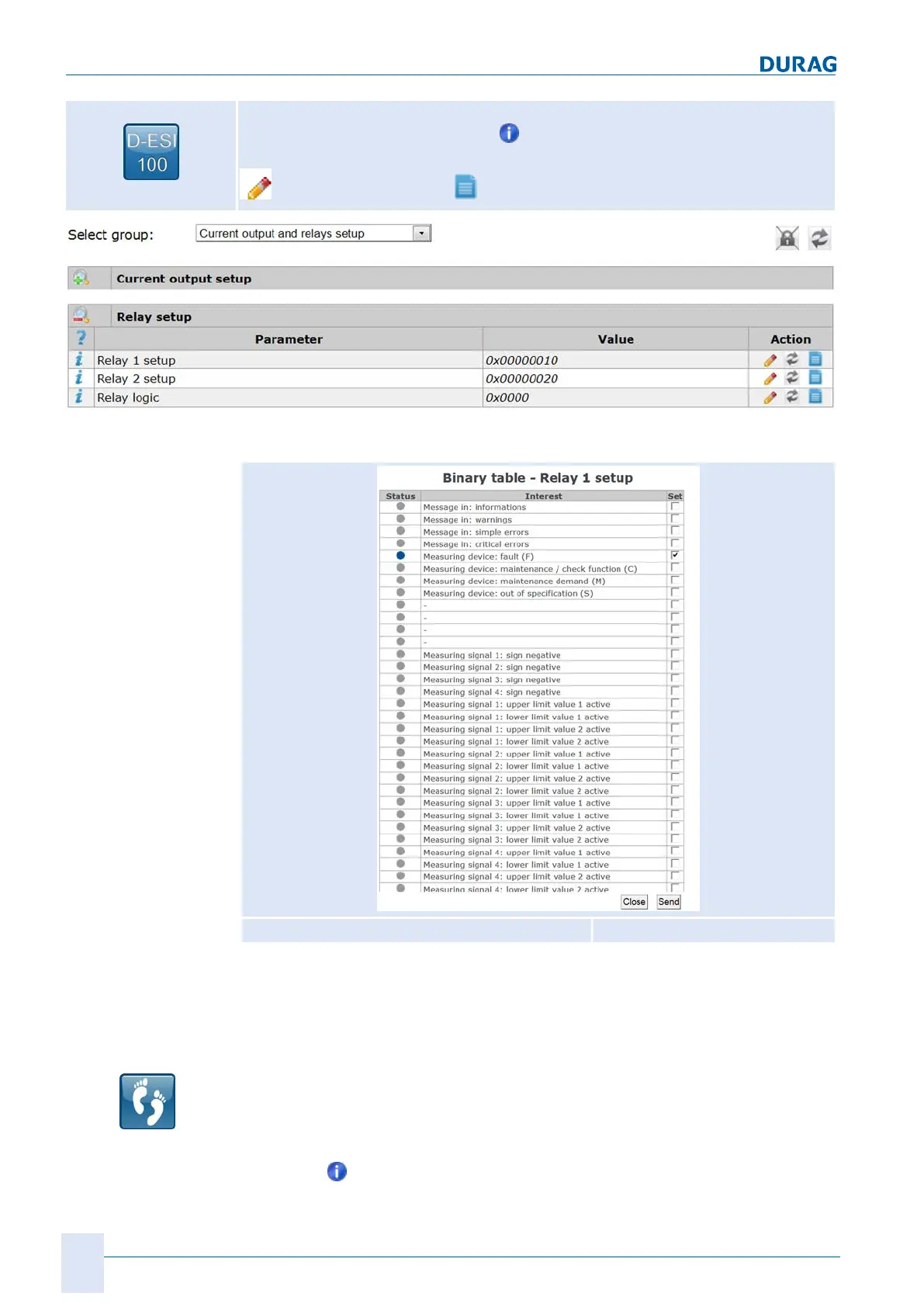

Fig. 7.10: Setting relay setup
The relays switch when triggered by the events assigned to them.
Close ≘ (abort and) close window Send ≘ load (temporarily)
Table 7.8: Relays, configuration of the outputs
Setting the relay outputs
Left click on "Device" in the sitemap.
Left click on
for the desired device in the device list.
Step 1
Step 2
To Next Page
