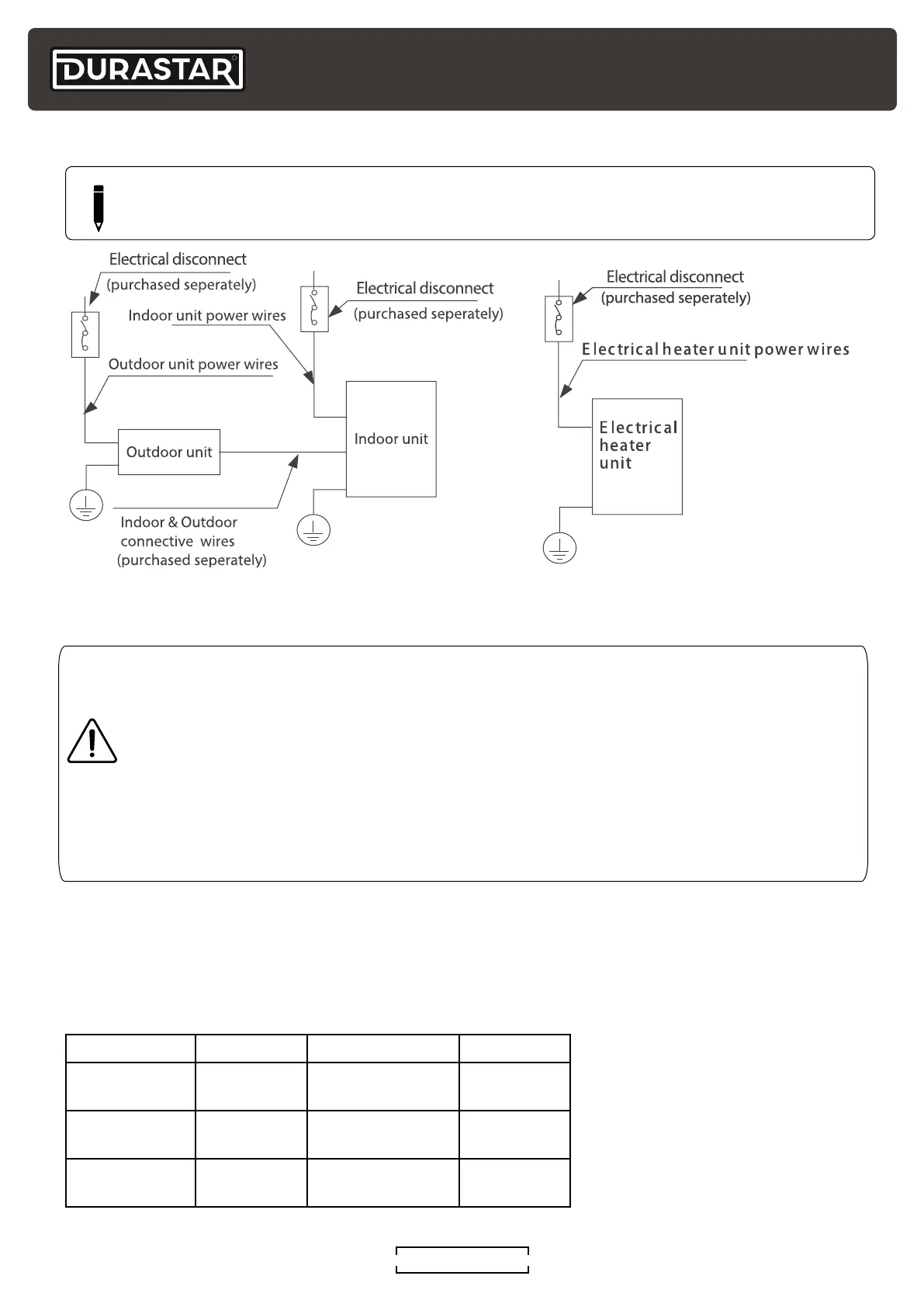

WIRING OVERVIEW
ELECTRIC HEATER INSTALLATION (OPTIONAL)
ACCESSORY QUANTITY ACCESSORY QUANTITY
Manual 2
Silicone Breaker
Cover
1
Gasket Seal 1 Wiring Diagram 1
Screws 7
Circuit Breaker
Label
1
For installations requiring supplemental heating, the optional Electric Auxiliary Heat Module
is available in sizes 5kW, 8kW, 10kW, and 15kW to accommodate the specific heat load and
electrical requirements of each installation. Please refer to the compatibility table below.
INCLUDED ACCESSORIES
CAUTION
• Installation must be performed by a licensed contractor. Use recommended PPE.
• Before installation, please confirm the electric auxiliary heat module and supplied
accessories are complete and free of damage. Do not install if any items
are damaged.
• Durastar factory approved heaters are UL rated with the equipment. DO NOT install
a non-approved heater, this can cause damage and will not be covered under
warranty.
• This heater is for installation in the air handler, DO NOT mount in the ductwork.
NOTE
The diagrams are for explanatory purposes only. Your unit may be slightly different.
