TOOLS NEEDED
The following tools are required for installation.
• Phillips screwdriver
• Drill with 2 1/2" or 3 1/2" (indoor unit model depending) core bit
• Vacuum pump
• HVAC manifold gauge set
• Micron Gauge
• Refrigerant leak detector
• Copper pipe cutter
• Flaring tool
• Burr reamer
• Crescent or spanner wrench
• Hexagonal wrench set
• Torque wrench
• Multimeter
• Electro-probe
• Level
• Hammer
• Wire strippers
• Wire crimper
A
B
C

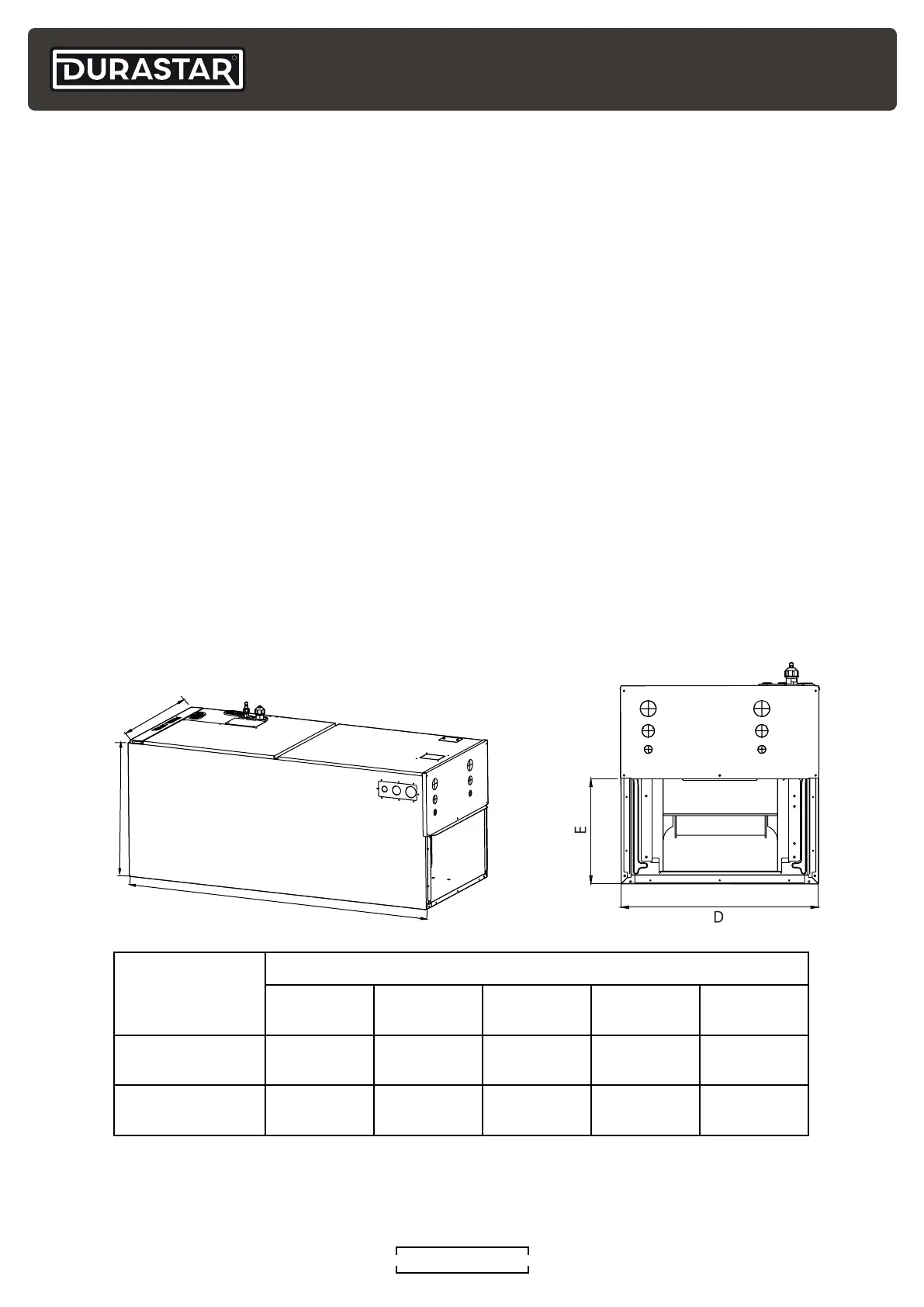

UNIT DIMENSIONS
Model BTU
Dimensions
A (Height)
in (mm)
B (Depth)
in (mm)
C (Width)
in (mm)
D
in (mm)
E
in (mm)
30K - 48K 49 (1245) 21 (533) 21 (533)
19-5/16
(490)
10-1/4
(260)
60K 53 (1346) 21 (533)
24-1/2
(622)
22-7/8
(580)
10-1/4
(260)
