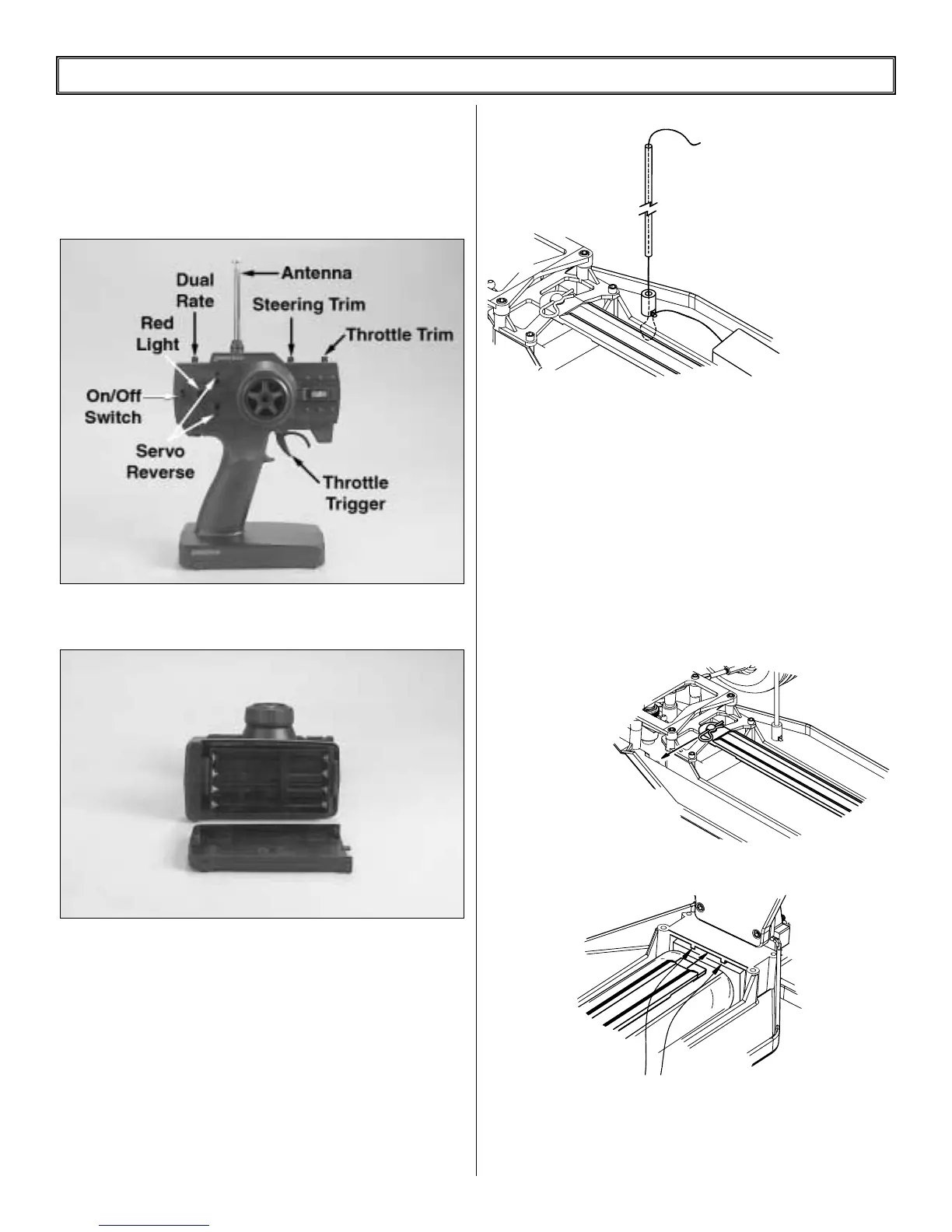

❏ 1. Remove the Evader ST and radio system from the box.
❏ 2. Charge the (not included) 6 or 7 cell battery on the (not
included) charger. See Safety Precautions before charging
and charge the battery according to the instructions that
came with your charger.
❏ 3. Install the transmitter antenna by screwing it into the
hole on the top of the transmitter.
❏ 4. Slide open the battery door on the bottom of the
transmitter. Install eight (8) “AA” batteries into the transmitter
in the configuration molded into the plastic on the battery
holder. Re-install the battery door.
❏ 5. Turn on the transmitter using the on/off (see step 3).
The red light on the transmitter should light up. If there is no
light on, turn the transmitter off and check to ensure that the
batteries are making contact with the metal contacts in the
battery holder. Make sure the batteries are installed
correctly. Turn the transmitter on and check for the red light.
If the red light appears, turn off the transmitter.If the red light
blinks, the batteries are low and should be replaced.
❏ 6. Straighten the receiver antenna. Route the receiver
antenna through the holes in the chassis as shown above.
Locate the antenna tube, and thread the receiver antenna
through the antenna tube. The antenna will be longer than
the antenna tube. DO NOT CUT OR COIL THE ANTENNA
WIRE. Press fit the antenna tube into the hole in the chassis.
Tip: Run the antenna wire through your fingers to
straighten out the kinks before running through the
antenna tube. Also, applying a small amount of soap
and water to the antenna wire will help lubricate the wire
for threading into the antenna tube.
❏ 7. Remove the body pin from the battery strap post, and
remove the battery strap from the Evader ST.
and then through the tube.
