5
❏

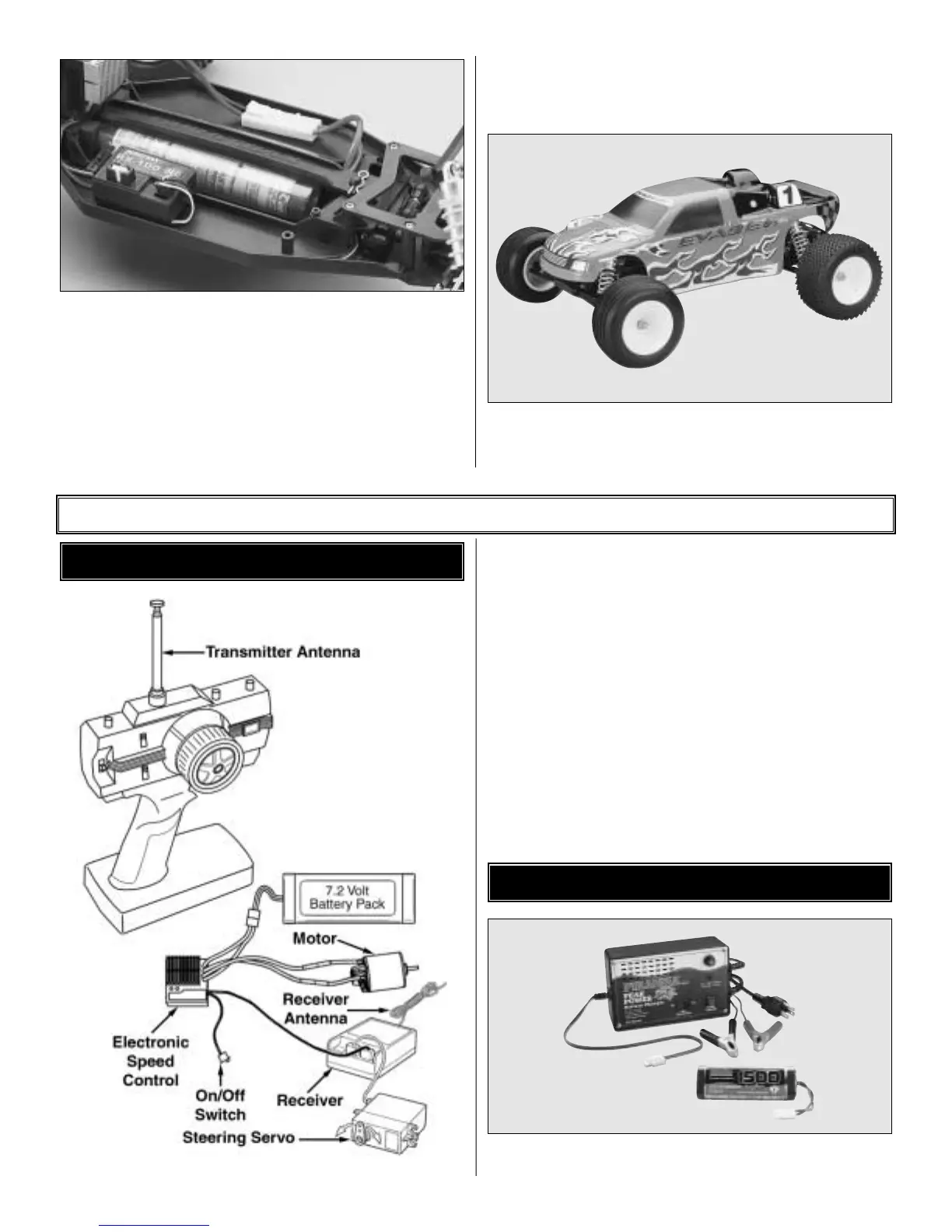

1. Install the “AA” batteries in the transmitter.
❏
2. Install and extend the transmitter antenna.
❏
3. Connect the steering servo and electronic speed control
to the receiver.
❏
4. Uncoil and extend the receiver antenna.
❏
5. Hook up the charged 6 or 7 cell battery to the electronic
speed control.
❏
6. Adjust the servo trims of the transmitter to the
neutral position.
❏
7. Switch on the transmitter.
❏
8.Switch on the electronic speed control.
❏
9.Operate the steering and throttle control. Make sure the
steering servo arm and motor move in proportion to the
movement of the steering wheel and throttle trigger.
❏
10.Switch off the receiver, then the transmitter.
❏
1.Charge the 6 or 7 cell battery (not included) on your charger
(not included). See Safety Precautions before charging.
CHARGE YOUR BATTERY
PREPARING THE RADIO SYSTEM
FINISHING THE EVADER ST PRE-BUILT VERSION (DTXC0020)
❏ 8. Install the charged 6 or 7 cell battery into the battery
slot. Re-install the battery strap onto the Evader ST. Note
that there is a channel in the chassis for the battery
strap to rest in. Re-install the body clip into the battery
strap post.
❏ 9.The transmitter features a dual rate knob labeled “D/R”
on the top of the transmitter. Turning it fully clockwise will
give you the greatest amount of steering travel. Turning it
counterclockwise will reduce the amount of steering travel.
If you are just learning to drive R/C you may want to use less
steering travel at first.
❏ 10. Decal the body as desired.
❏ 11. Proceed to page 8 for Maintenance Tips.
