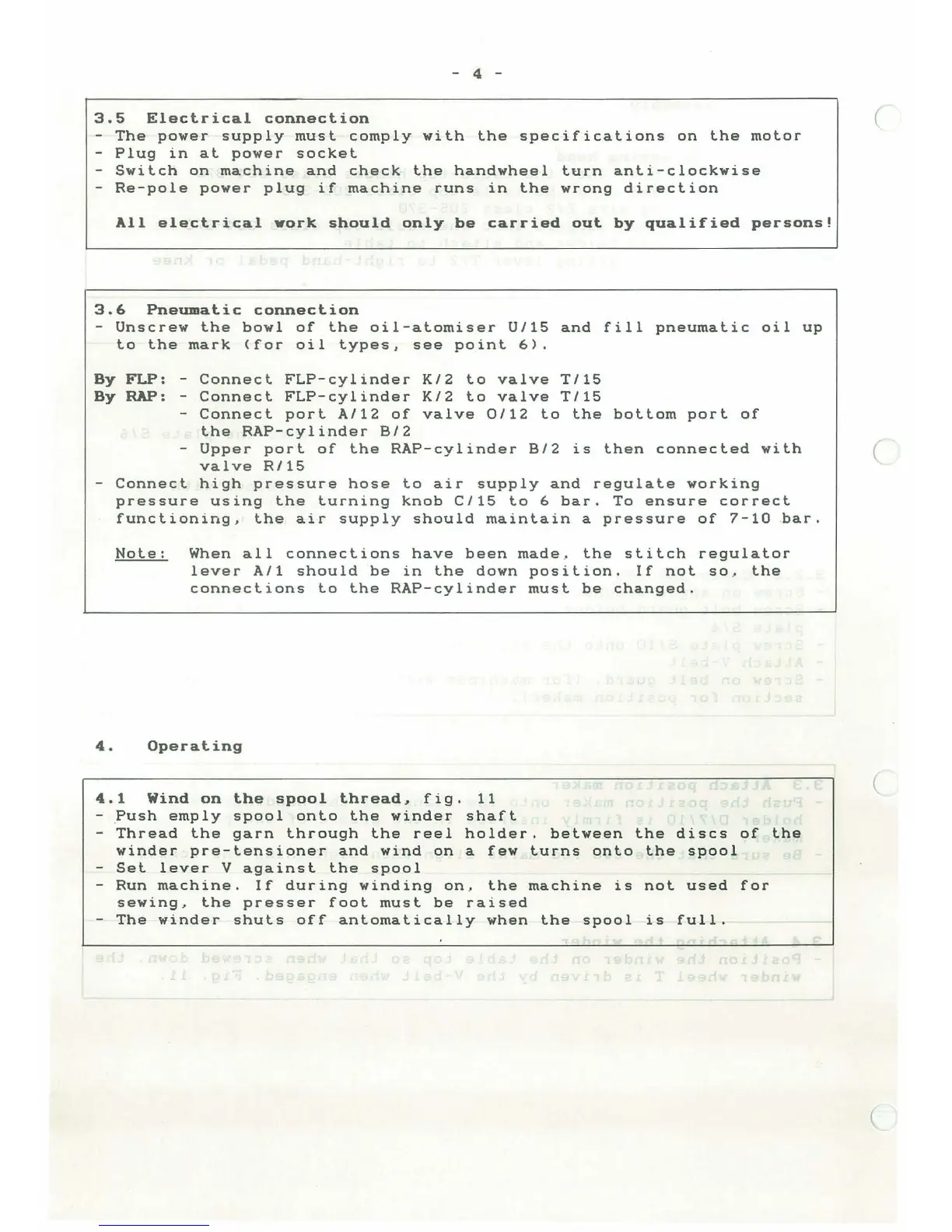

3.5 Electrical connection
- The power supply must comply with the specifications on the motor
- Plug in at power socket
- Switch on machine and check the handwheel turn anti-clockwise
- Re-pole power plug if machine runs in the wrong direction
All electrical work should only be carried out by qualified persons!
3.6 Pneumatic connection
- Unscrew the bowl of the oil-atomiser U/15 and fill pneumatic oil up
to the mark <for oil types, see point 6).
By FLP: - Connect FLP-cylinder K/2 to valve T/15
By RAP: - Connect FLP-cylinder K/2 to valve T/15
- Connect port A/12 of valve 0/12 to the bottom port of
the RAP-cylinder B/2
- Upper port of the RAP-cylinder B/2 is then connected with
valve R/15
- Connect high pressure hose to air supply and regulate working
pressure using the turning knob C/15 to 6 bar. To ensure correct
functioning , the air supply should maintain a pressure of 7-10 . bar .
Note: When all connections have been made, the stitch regulator
lever A/1 should be in the down position . If not so , the
connect i ons to the RAP-cylinder must be changed.
4. Operating
4.1 Wind on the spool thread, fig. 11
- ~ush emply spool onto the winder shaft
-Thread the garn through the reel holder. between the discs of the
winder pre-tensioner and wind on a few turns onto the spool
Set lever V against the spool
- Run machine . If during winding on, the machine is not used for
sewing , the presser foot must be raised
-The winder shuts off antomatically when the spool is full.
(
(
(
(
