Fitting the sewing lamp
Additional Instructions 581 - 00.0 - 02/2015 5
2.1 Removing components
A description of how to remove the clamping plates is provided in the
Operating Instructions.
To remove the other components:
Step
1. Remove the screws (2).
2. Remove the finger protection (1).

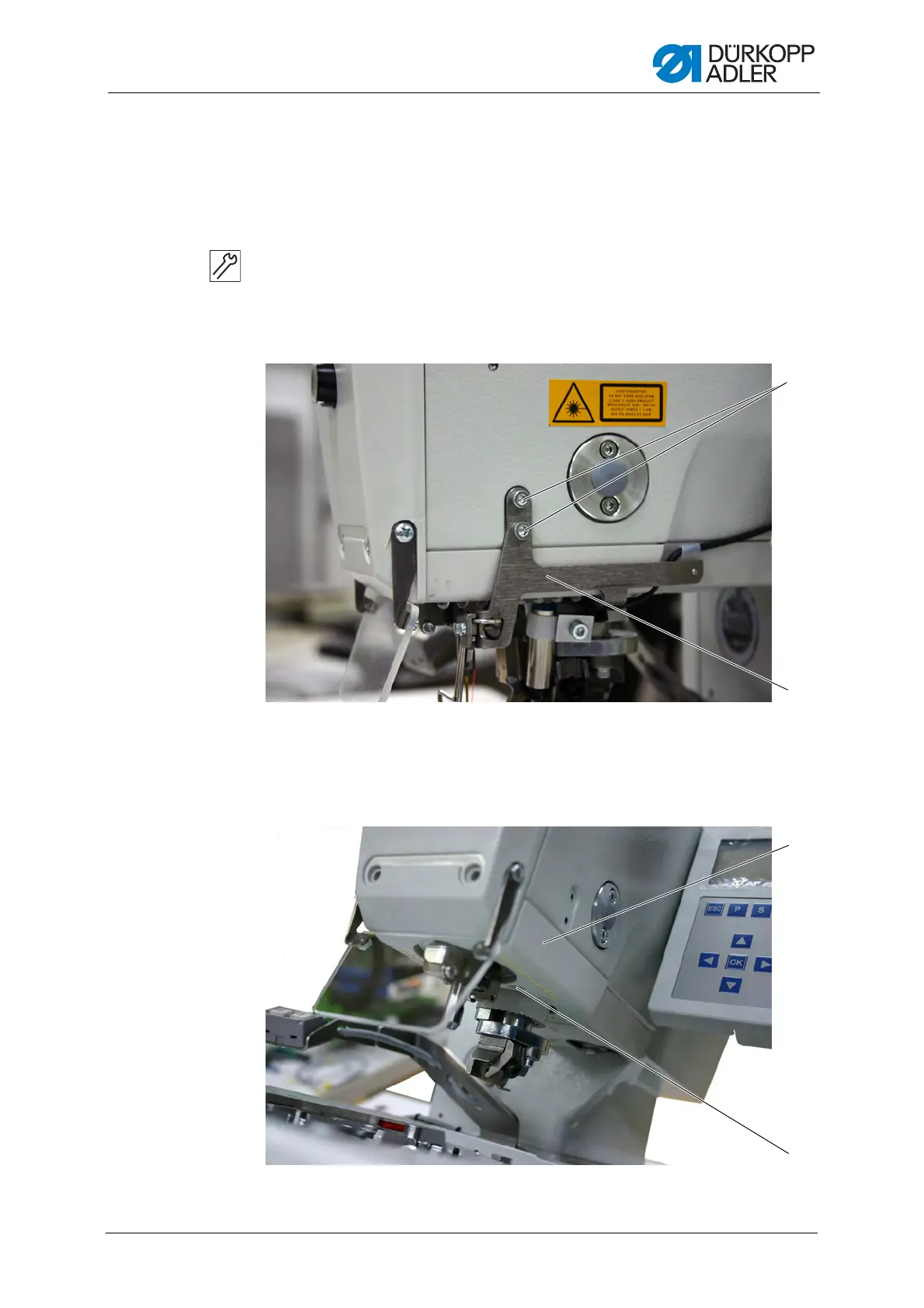

Fig. 2: Removing the finger protection
3. Remove 3 screws (3) (width across flats 3) from the housing for the
drive belts (4).
Fig. 3: Detaching the housing
(1) - Finger protection (2) - Screws
(3) - Screws (4) - Housing
