Fitting the sewing lamp
Additional Instructions 581 - 00.0 - 02/2015 7
2.2 Fitting the housing with printed circuit board
Step
1. Place the housing (1) with preassembled printed circuit board under
the sewing
head.

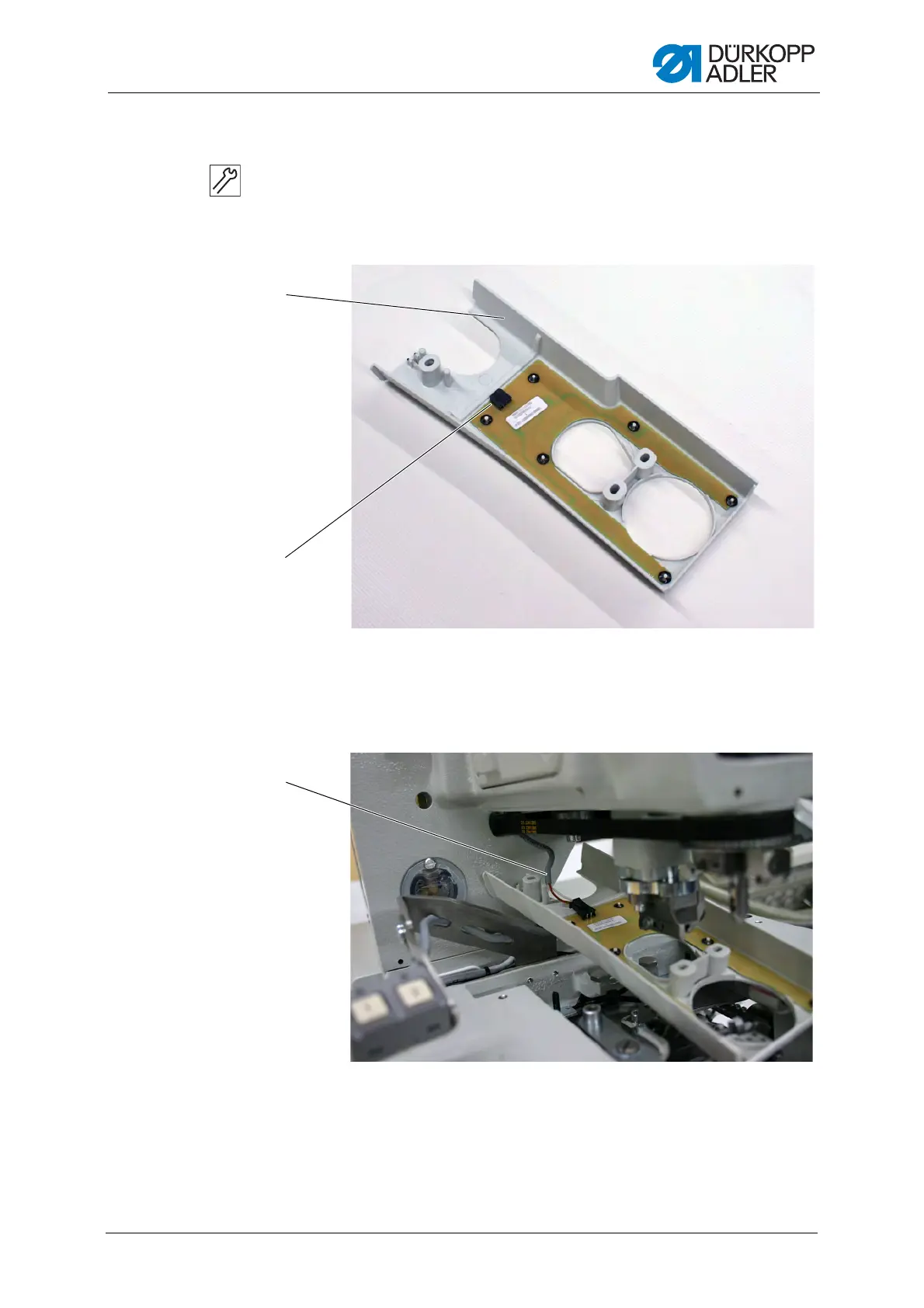

Fig. 5: Housing with printed circuit board
2. Connect the X411 cable (3) to the tab connector of the printed circuit
board (2).
Fig. 6: Connecting the cable
3. Secure the housing with the 3 screws ( 2.1 Removing components,
pg. 5).
(1) - Housing (2) - Printed circuit board
(3) - X411 cable
