Plumbing Connections –
Collectors

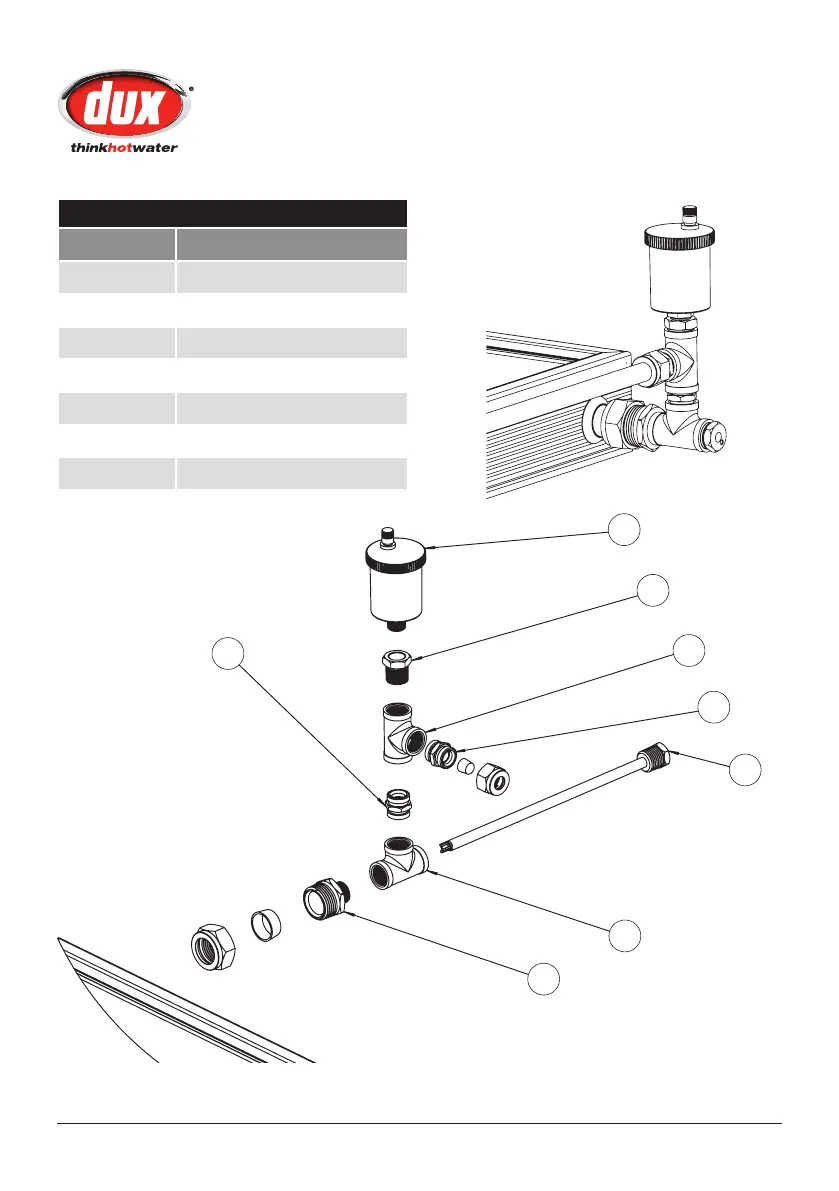

System Components
Component Description
1 Air bleed valve
2 Bush
3 15mm Female Tee
4 Union 15mm M × 15mm C
5 Sensor Dry Well
6 Hex nipple
7 Union 1" C × 1/2" M
1
2
3
4
5
6
3
7
