Installation – Collectors
Collector Mounting Kits
The Collector Mounting Kits are
designed for mounting the solar
collectors to most common Australian
roong types. The kit consists of
specially designed rails that are bolted
to the collector then xed to the roof
structure using standard roong screws
or bolts.
Please refer to the collector
mounting kit instructions located in
the mounting kit box. The mounting
kit instructions can also be obtained
from Dux Service 1300 365 115.
For installations requiring three
collectors, an additional Collector
Mounting Kit is required as an extension
to increase the mounting capacity from
two to three collectors.
Collector installation
After selecting the solar collector
location, the nal check before
installation is that the available roof
space is sufcient for the solar collectors
being installed. For a two solar collector
installation the available roof space must
be at least 3 metres wide and for a three
solar collector installation the available
roof space must be at least 4 metres
wide.
Roof areas smaller than these minimum
measurements will make installation,
and later service work, difcult.

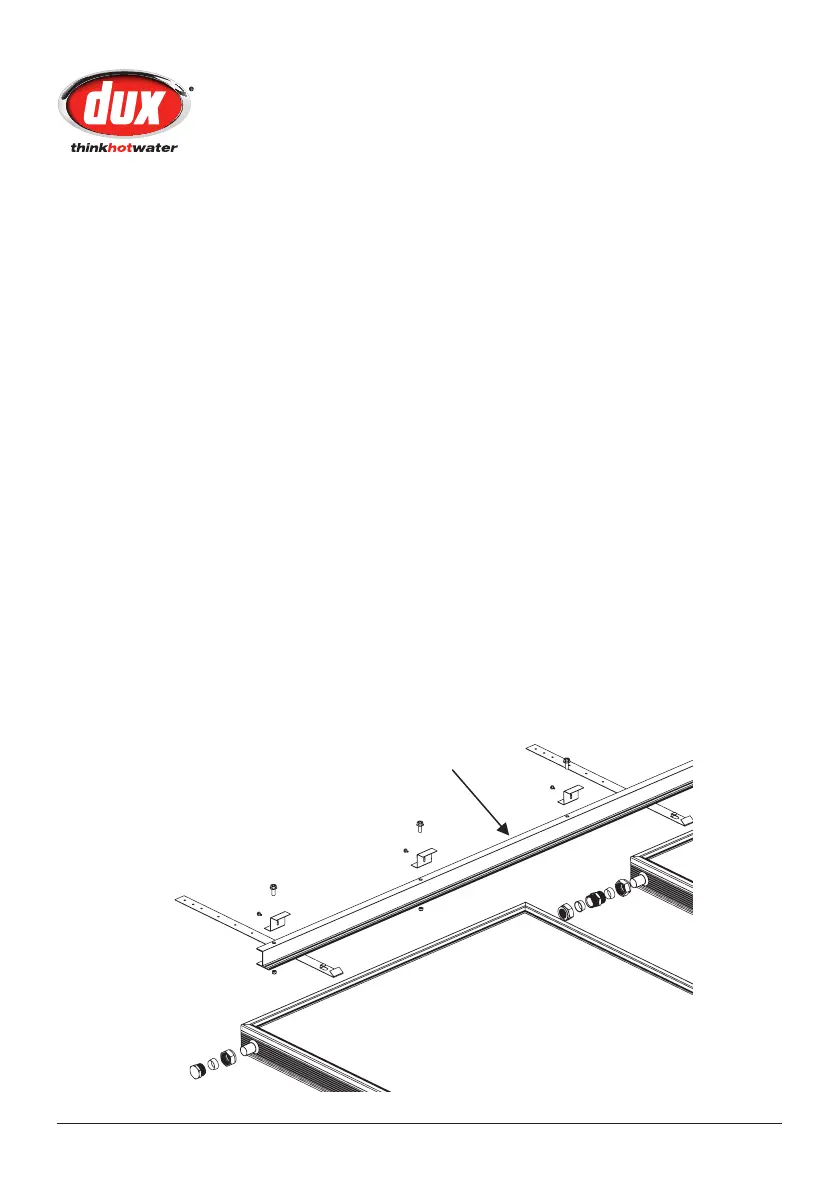

Collector mounting rails
