Owner’s Manual – Electric Boosted Solar
17
Part No: H3100
Version: 10346D
Hotlogic Connections
Hotlogic™ Solar Pump
And Controller Module
The Hotlogic box should be plugged
in to a weatherproof approved power
outlet for 10amps, 230 to 250 volt, 50Hz
supply.

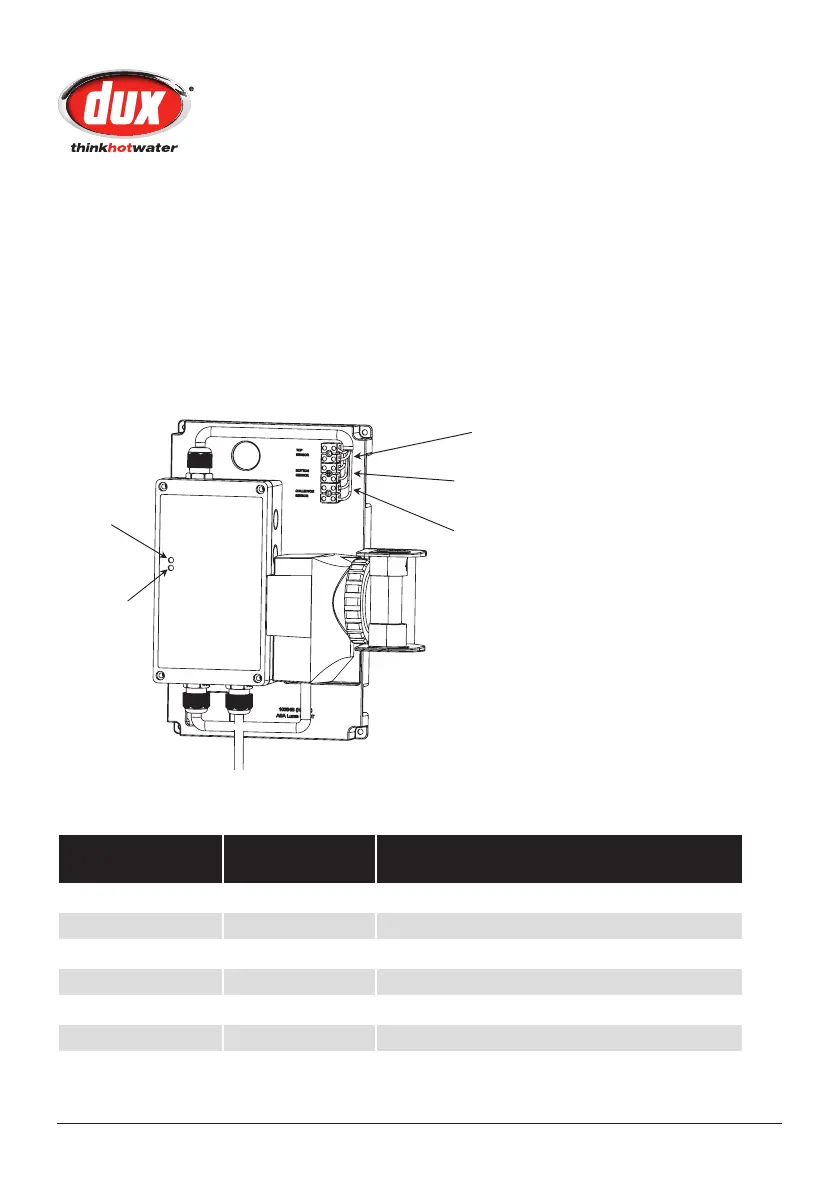

The Hotlogic controller must be wired
according to the diagram below.
Power
LED
(Green)
Status
LED
(Red)
Bottom Tank Sensor (BLACK)
Collector Sensor
(2 Core Speaker Wire)
Top Tank Sensor (GREY)
Hotlogic Diagnosis Codes
Power LED
(Green)
Status LED
(Red)
Explanation
Alternating Power on initialisation (LEDs blink alternately)
On Off All sensors normal, pump off
On On All sensors normal, pump on or booster on
Flashing Off Sensor error (collector or tank)
Off Flashing Tank bottom sensor error
Flashing Flashing Tank top sensor error
Note: If any sensor is open circuit, the system will indicate a Green only flashing LED.
