Owner’s Manual – Electric Boosted Solar
15
Part No: H3100
Version: 10346D
Connections At The Ground
Mounted Storage Tank
Note: The tank has been pre congured
for the hot collector return to be
connected to the right hand side of
the tank (as marked). The left hand hot
outlet is for the hot water supply to the
house.
Finally, take the collector temperature
sensor cable and pass them through the
bottom of the Hotlogic™ module, then
up into the upper section.
Connect the collector temperature
sensor cables to the vacant terminals
(refer to page 17 Hotlogic module
connections).
The polarity of the connections is not
important.
Non Return Valve
The hot water return pipe from the solar
panel should have a solar non return
valve tted where the pipe enters the
tank.
Note: Dux recommends an RMC non
return valve, product code SNR502. All
pipe work must be insulated.

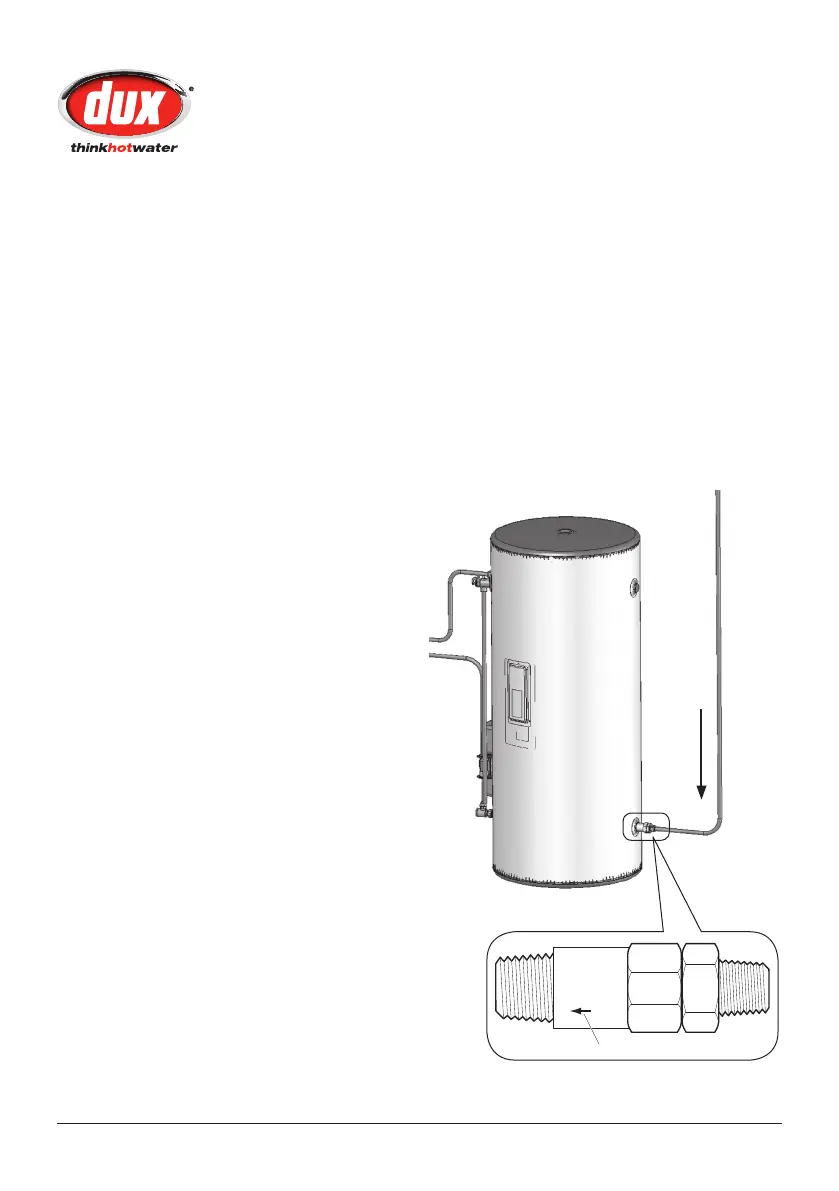

Ensure the non return valve is installed
according to the ow direction arrow on
the valve.
Hot
Water
Flow
Direction
RELIANCE
FLOW
Flow Direction Arrow
Plumbing Connections –
Tank To Collectors
To Next Page
