7 DISPLAYS
7.1 NBB RADIO CONTROL DISPLAYS
Indicator (11) flasher - Radio Control power on indicator
Radio controll emits a high pitch tone - Radio Control battery low voltage
warning
7.2 HETRONIC RADIO CONTROL DISPLAYS
LED flashes green – Radio Control power on indicator
LED flashes yellow – Radio Control battery low voltage indicator

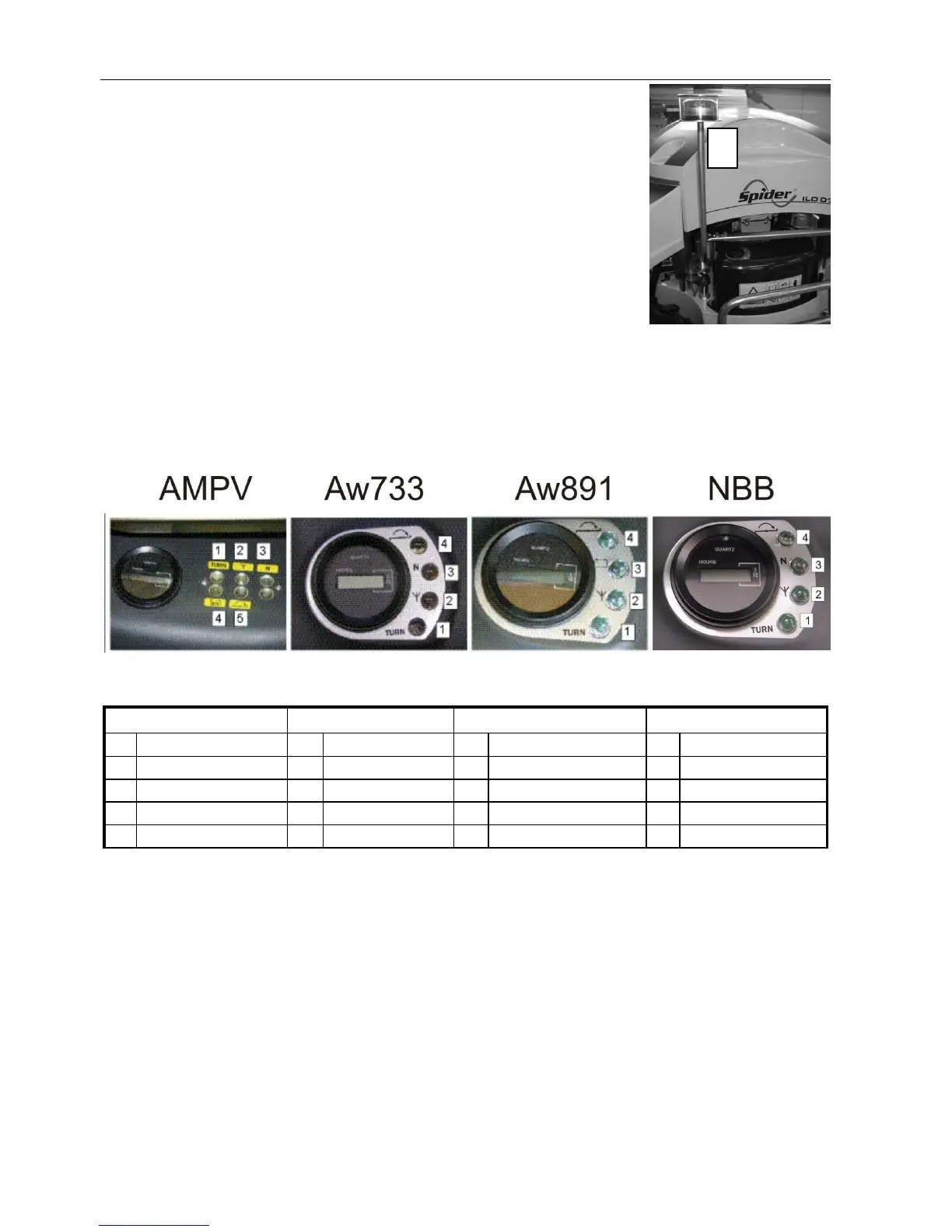

7.3 MOWER DISPLAYS
AMPV AW 733 AW 891
NBB
1 Power Indicator 1 Power Indicator 1 Power Indicator 1 Power Indicator
2 Signal Reception 2 Signal Reception 2 Signal Reception 2 Signal Reception
3 Neutral 3 Neutral 3 Battery Charge 3 Neutral
4 Battery Charge 4 Blade 4 Blade 4 Blade
5 Blade
On the cover of the battery there are a number of warning LEDs and an hour meter. Identify the version you
have.
The displays signal the following states:
Power Indicator: Illuminated green when the EMERGENCY STOP on the top of the mower is unlocked.
Beacon is flashing when the EMERGENCY STOP on the top of the mower is
unlocked.
Signal Reception Illuminated green when the radio link between the RC and the receiver is established
and correct.
Neutral: Illuminated green when the transmission is in a neutral position.
Battery charge: Illuminated red when there is a charging fault or when the engin is switched off.
Blade: Illuminated red when the blade is engaged.
