11.14 FUSES

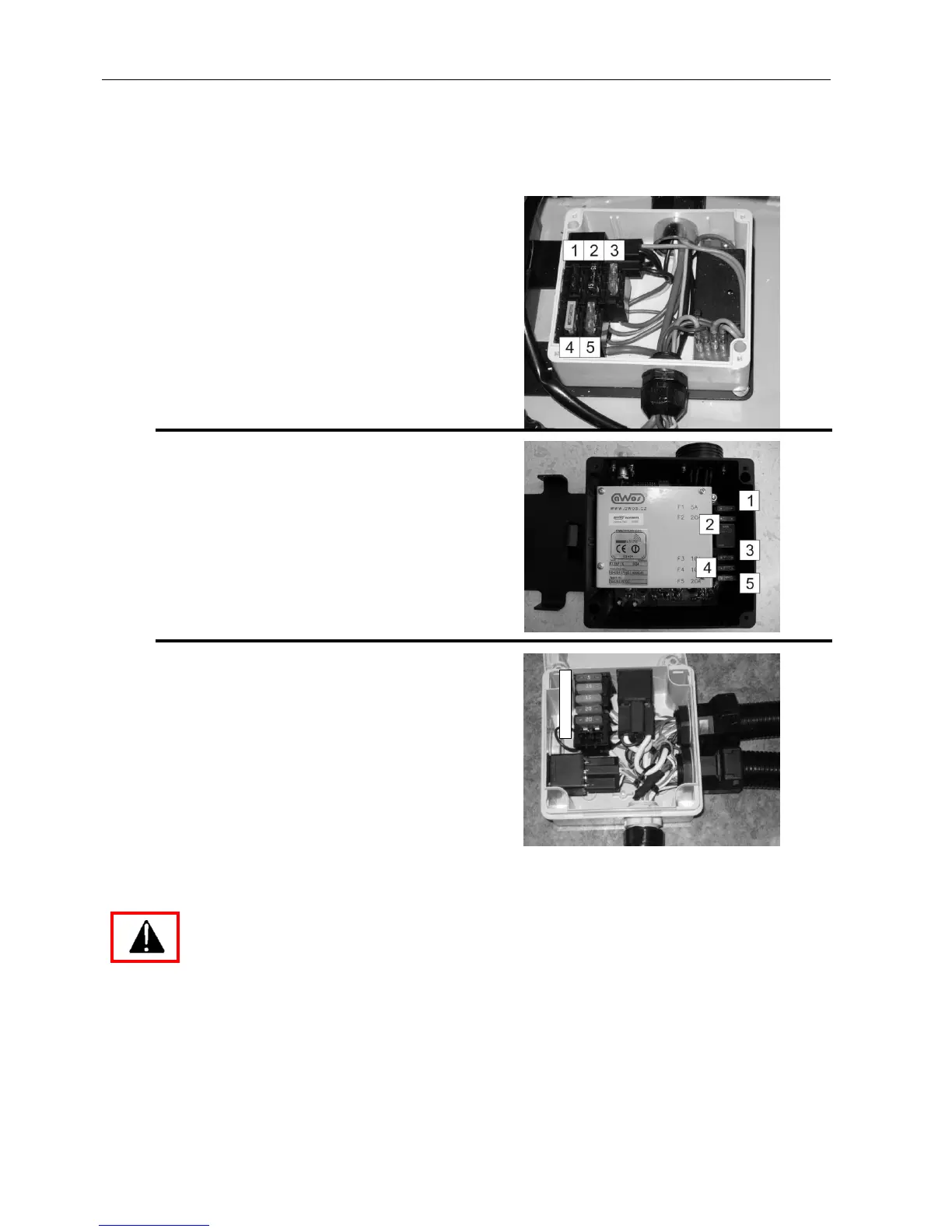

The fuse box is placed in the space next to the
battery. Inside the fuse box you can find fuses for
individual circuits:
1 10 A – Control panel, carburettor solenoid
2 15 A – Control unit, travel control, mower
elevation
3 20 A – Steering servomotor
4 30 A – Main fuse
5 20 A – Battery charging, blade clutch
1 5 A – Control Unit, Accelerator Servo,
Control Panel, Moving Servo
2 20 A – Alternator
3 10 A – Starter, Blade Clutch, Horn
4 10 A – Linear Electric Motors
5 25 A – Steering servo
1. 5 A - Control panel
2, 3. 2 x 15A - Battery charging
4, 5. 2 x 20 A - Parallel protection of the main circuit
When changing fuses follow the electric current
value for which the fuses are designed. Do not
replace damaged fuses with fuses with a higher or
lower electric current value. These could cause
damage or even a fire in the mower!
