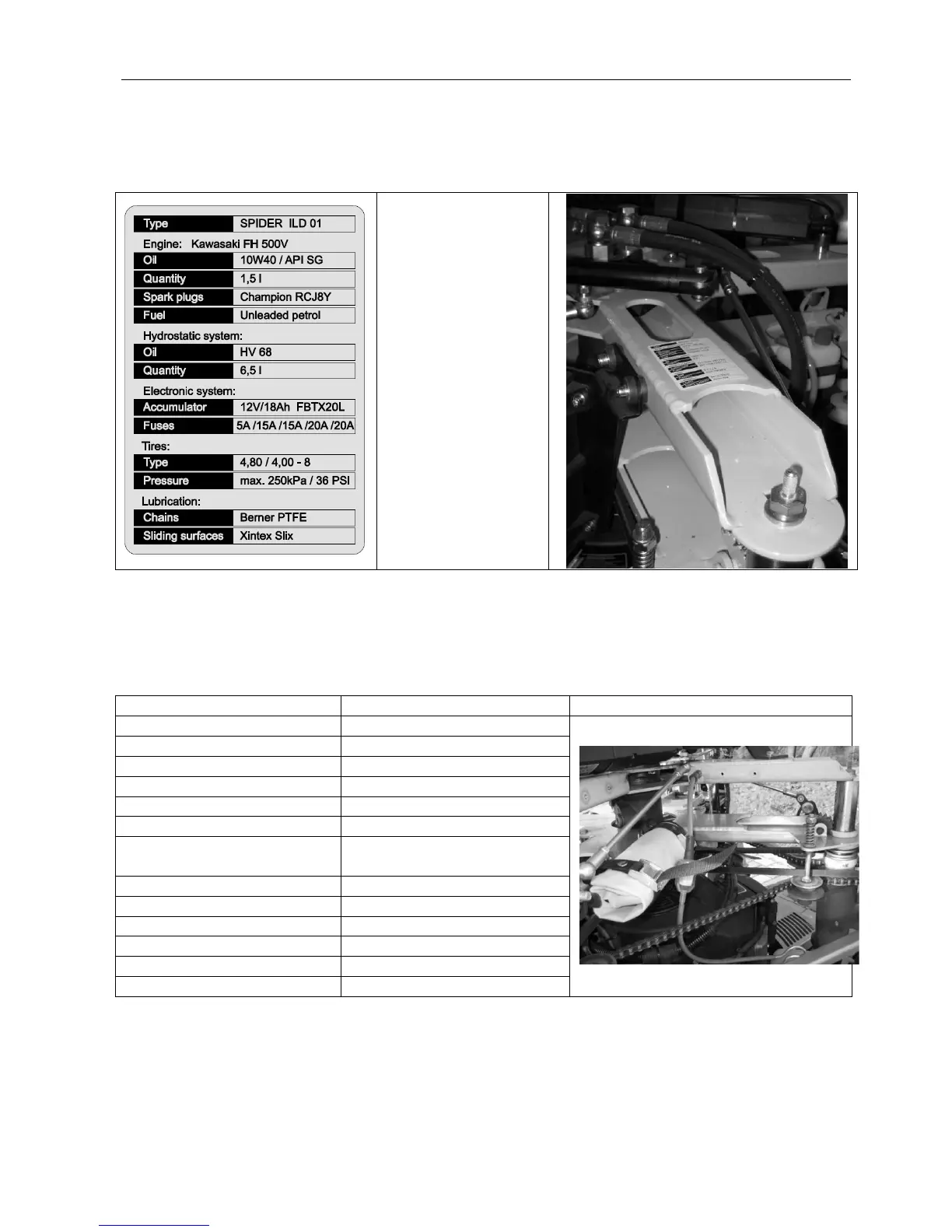

11.23 TECHNICAL PLATE
The technical plate provides information on mower fillings and basic information for machine
maintenance. The technical plate is placed on the machine girder.
- Engine
- Engine oil
- Oil quantity
- Spark plug
- Fuel
- Hydraulic system
- Hydraulic oil
- Oil quantity
- Electronic system
- Battery
- Fuses
- Tires
- Tire type
- Maximal pressure
- Lubrication
- Chain gears
- Sliding surfaces
11.24 TOOLS
Spider ILD01 is equipped with a basic set of tools, which allow regular maintenance and basic servicing. The
tools are based under the side cover upon to the Fuel tank (see figure below). The tool roll is also equipped with
a pocked for the business card of your local authorized service/dealer.
List of tools
Use
Placement on the machine
Spark plug spanner 19, 21 mm
Spark plugs
Socket head 19 mm
Change of blades
Socket head 17 mm
Change of wheels
Socket head 15 mm
Tightening of drive belts
Lever handle
-
Flat spanner 10-13 mm
Tightening of drive belts
Flat spanner 16-17 mm
By-pass, tightening of steering
chain
Hex-wrench IMBUS 3 mm
Wheel suspension
Hex-wrench IMBUS 5 mm
Wheel suspension
Hex-wrench IMBUS 6 mm
Wheel suspension
Hex-wrench IMBUS 8 mm
Tightening of steering chain
Screwdriver flat-tip / crossshead
Fuse box
Fuses 5A, 20A
Fuse box
