Operation manual - Spider ILD01
27 / 52 rev. 10-01-05-2011

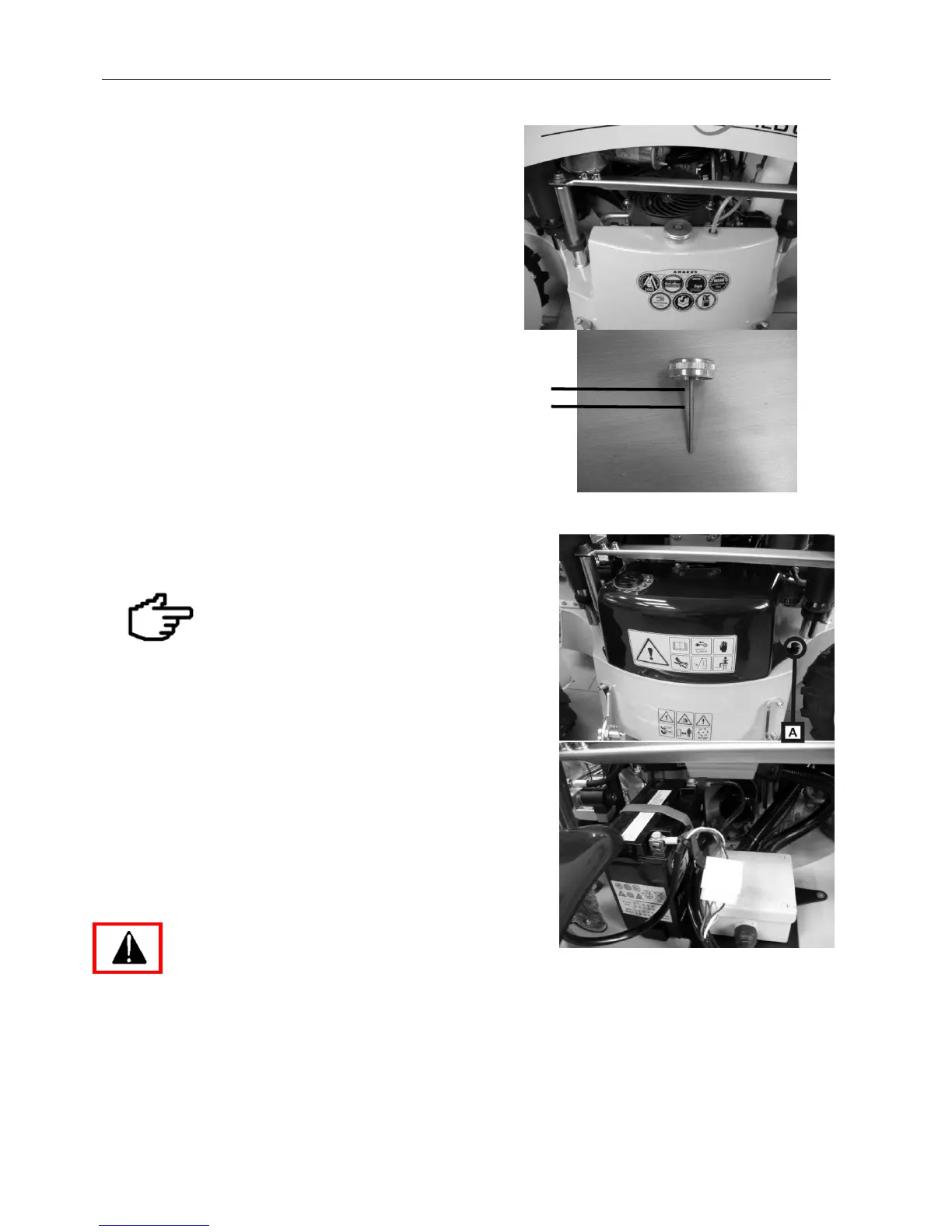

9.4 CHECKING HYDRAULIC DRIVE OIL LEVEL
Oil level should only be checked when the oil is cold.
Clear debris from around the cap, unscrew the
cap on the hydraulic oil tank on the side of the
mower.
Using the dipstick check the oil level. It must be
between the limit marks.
If the level is above this range, the oil may
overflow from the breather pipe in the tank
when hot. If the level is below the lower limit,
the hydraulic drive may be damaged.
Refill with oil if necessary (HM 68 according to
ISO 6743 or HLP 68, CLP 68 according to DIN
51502).
When finished, refit the cap back on the oil tank.
9.5 PREPARING THE BATTERY
SPIDER ILD – 01 mower uses a gel battery model 6E12,
12 V, 18 Ah
Do not fill the battery with electrolyte! The
machine construction uses a dry type of
battery. If recharging, use a maximum electric
current of 1,4 A.
Unscrew the thumb wheel (A) and move aside the
battery cover (see the figure).
Remove/insert and fasten the battery
Attach the terminal connectors according to polarity.
First (+) then (-).
Secure the battery against movement with a rubber band.
Screw back the battery cover.
When disconnecting and removing the battery, proceed
in reversed order.
NEVER START THE MOWER WHEN A
CHARGER IS CONNECTED TO THE
BATTERY.FOR CHARGING USE ONLY
SPECIAL CHARGERS PREVENTING THE
EXCESS OF THE GASSING VOLTAGE. WHEN
CHARGING THE BATTERY, MAKE SURE THAT
CABLES CONNECTING THE BATTERY TO THE
MOWER ARE DISCONNECTED.
min
max
