Dyna-Glo DGP321SNN - Page 10

10
M
N
AA
AA
M6x16
Bolt x2
AA
Hardware Used

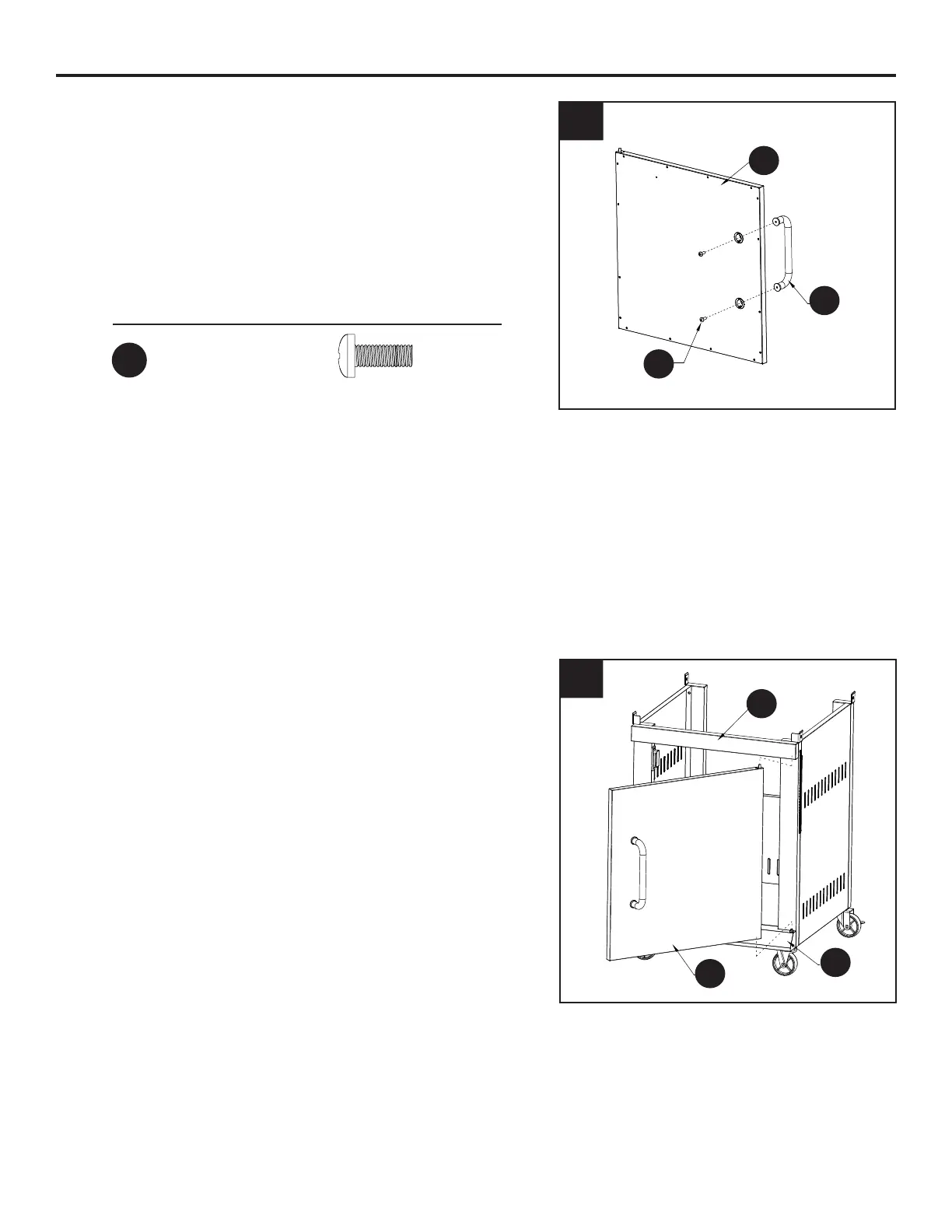

ASSEMBLY INSTRUCTIONS
8. Insert the bottom hinge pin of the cart bottom
panel skirt (K) into the lower hole on the door
assembly (M), then press the upper door spring
hinge pin into the hole on the upper front door
brace (V) as shown.
7. Attach the door handle (N) to the door
assembly (M) with two M6x16 bolts (AA).
7
Hardware Used
AA
N
M
8
V
K
M
AA
M6x16 Bolt
x 2
