Dyna-Glo DGP552SSP - Step 9: Attach Hood Handle; Step 10: Mount Temperature Gauge

11
B

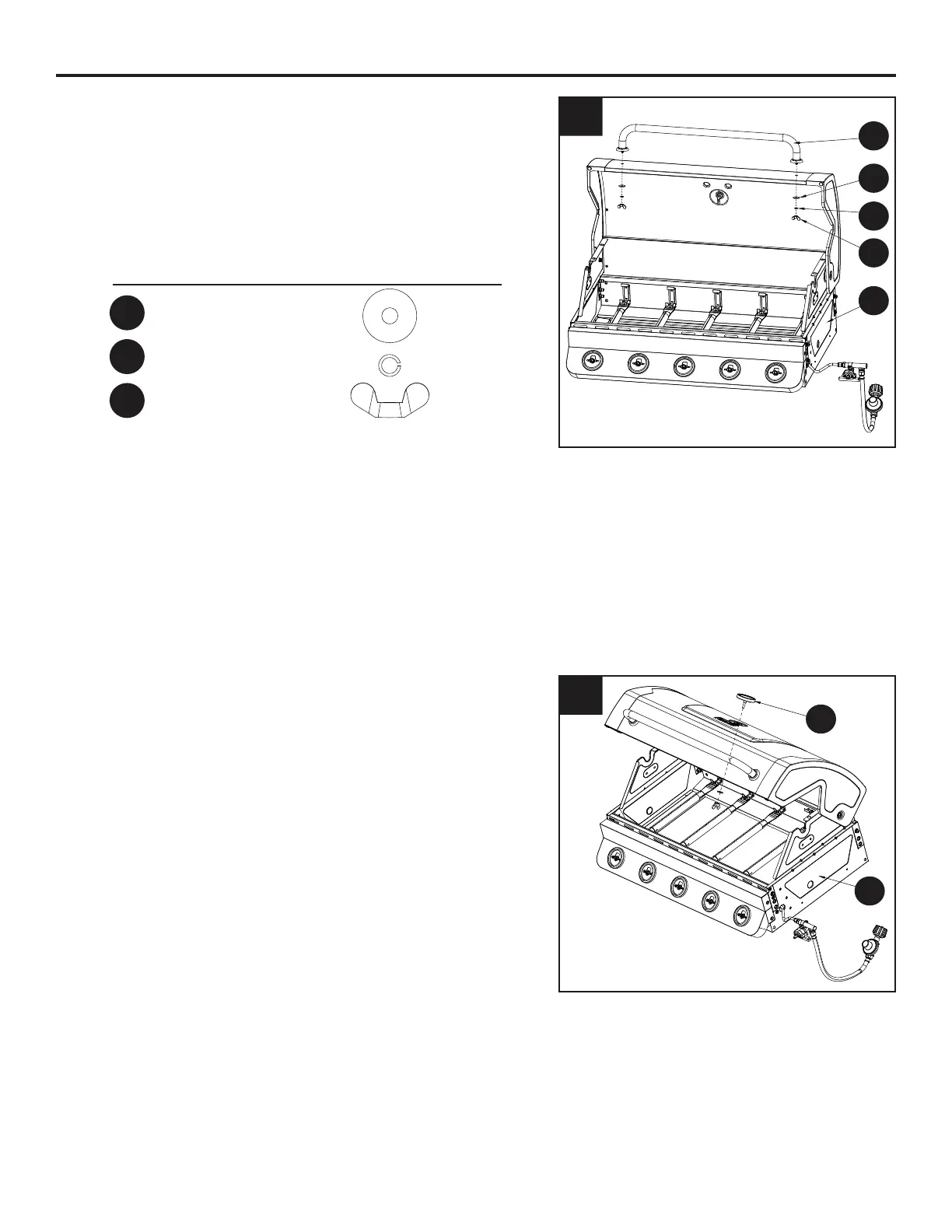

ASSEMBLY INSTRUCTIONS
9. Attach the hood handle (A) to the grill body
assembly (C) with two M6 wing nuts (EE), two
M6 spring washers (DD) and two M6 plain
washers (CC).
9
10. Remove pre-assembled wing nut and plain
washer from the temp gauge (B), then attach
the temp gauge (B) to the grill body assembly
(C). Secure the temp gauge (B) with wing nut
and plain washer removed earlier in this step.
10
Hardware Used
CC M6 Plain Washer x 2
DD M6 Spring Washer x 2
EE M6 Wingnut x 2
B
C
DD
CC
EE
A
C
A
CC
DD
EE
C
