ASSEMBLY INSTRUCTIONS

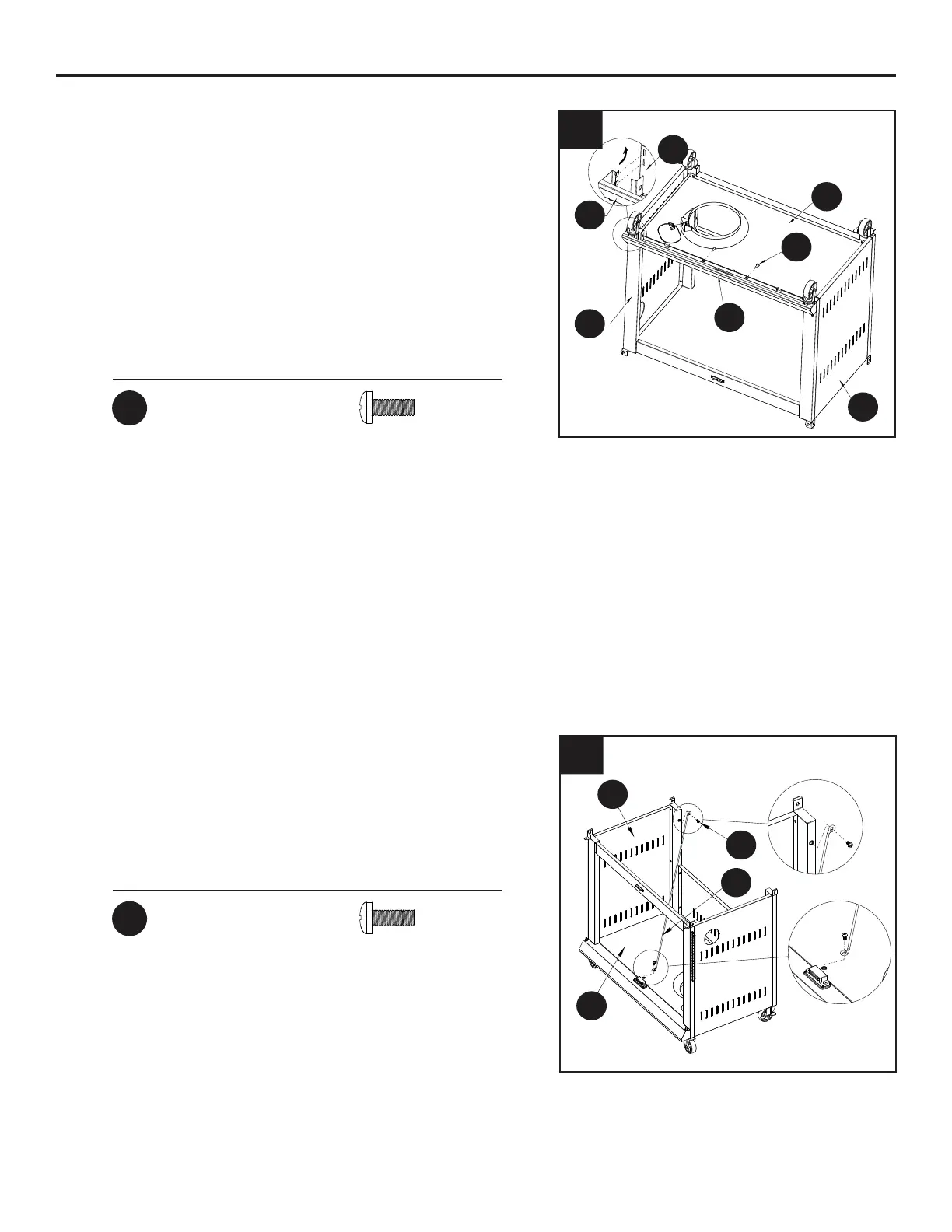

5. Insert the hook on the bottom panel skirt
assembly (O) into the slot on the cart left side
panel assembly (P) and the cart right side panel
assembly (L) as shown. Attach the bottom panel
skirt assembly (O) to the cart bottom shelf (A1),
cart left side panel assembly (P) and the cart right
side panel assembly (L) with four M6x16 bolts
(AA).
Tighten ALL bolts from step 2 securely.
6. Attach the cylinder blocking bar (R) to the cart
left side panel assembly (P) and the cart bottom
panel shelf (A1) with two M6x16 bolts (AA).
5
6
Hardware Used
Hardware Used
AA
AA
M6x16 Bolt
M6x16 Bolt
x 4
x 2
