Dyna-Glo DGW1904BDP-D - ASSEMBLY INSTRUCTIONS; Attach Legs and Burner Assembly

9
ASSEMBLY INSTRUCTIONS
.
1
CAUTION: Remove the upper (P) and lower (Q)
doors before beginning assembly.

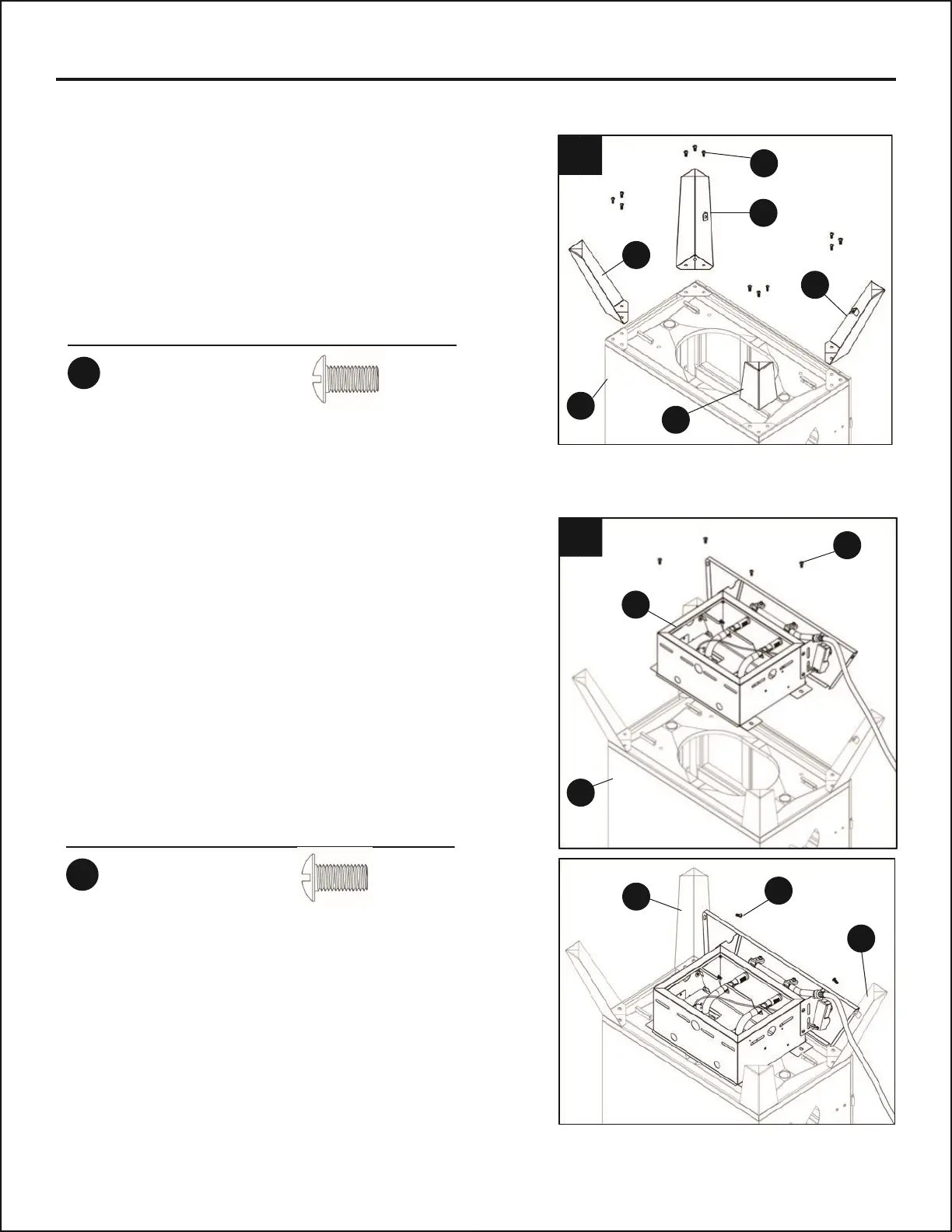

Attach rear legs (H) & right-front leg (M) & left –front
leg (N) to smoker body (G) using twelve M6x12
screw (AA).
Hardware Used
AA
x12
M6x12 Screw
. Turn the burner and control unit (L) upside down
2
and place it on the bottom of the smoker body (G).
Align the six mounting holes on the burner and
control unit (L) with the holes on the smoker
body (G). Secure with six M6x12 screw (AA).
Tighten all screw.
Note:
The control knob should be on the same
side as the door. Check that the burner is properly
installed on the orifice before attaching the burner
and control unit (L).
2
H
H
AA
N
AA
Hardware Used
AA
x6
M6x12 Screw
1
G
M
N
M
L
G
AA
