C Series amplifier

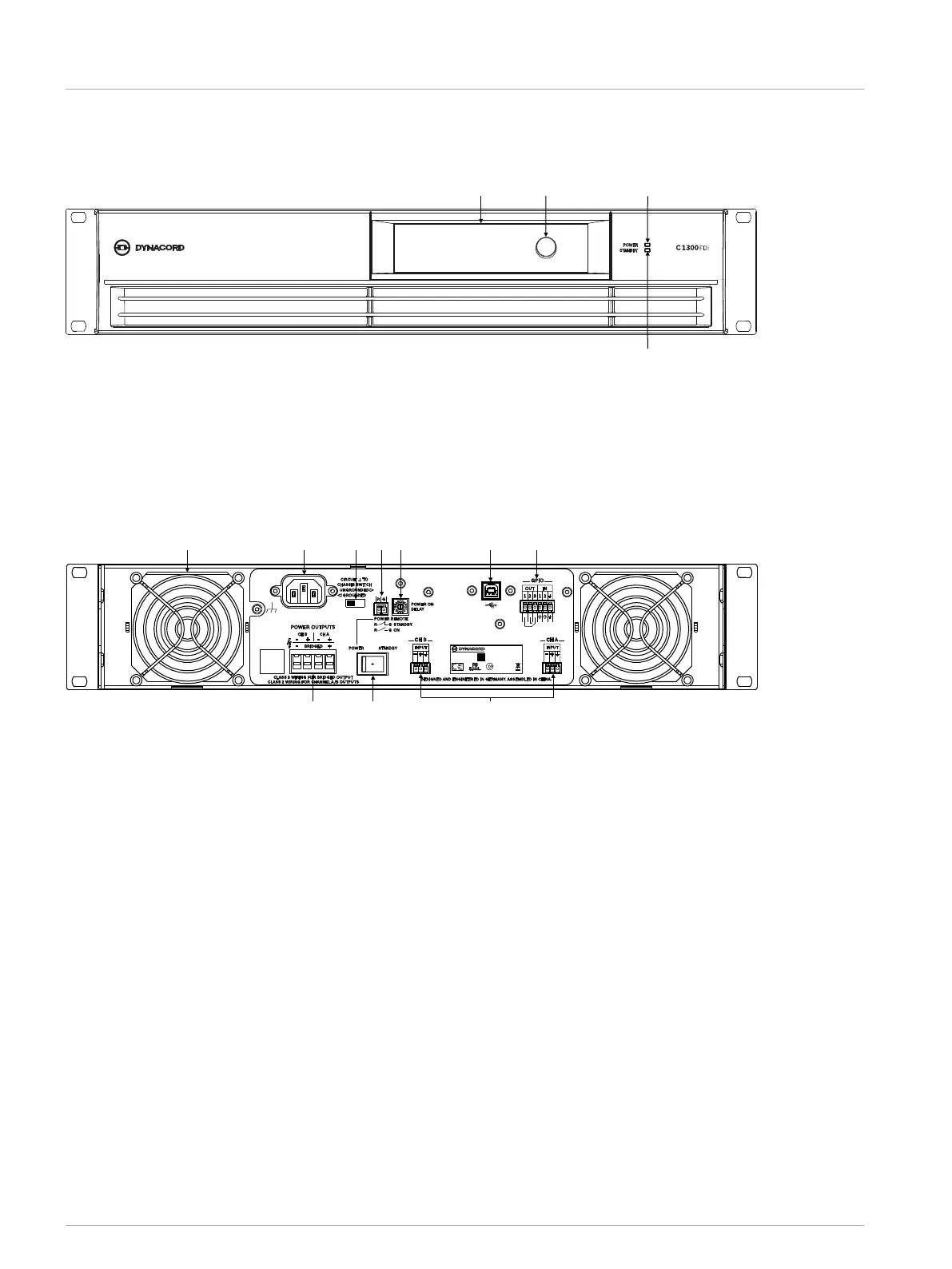

Front view
1 2 3
4
1. LCD - LCD control and monitoring interface.
2. Encoder knob - Scroll through the DSP menu and select the available choices. Push the
encoder knob to enter the DSP menu.
3. POWER - Power on/off indicator.
4. STANDBY - standby indicator.
Rear view
1 2 3 4 5 6 7
8 9
10
HIGH-Z MODE
BRIDGET
1 x 70 V
1 x 900 W
Bosch Security Systems BV
Tor
enallee 49, NL-5617BA Eindhofen
Quality by Bosch
Made in China
S/N: PPBTTTTDDDLLLLSSSS
RC-1.3K2-EU
Mat/N: F01U314181
N633
230V~50-60 Hz / 550W
1. FAN - Exhaust air vent for amplifier cooling. Do not obstruct!
2. MAINS IN - AC mains input socket.
3.
Groundlift switch (CIRCUIT TO CHASSIS SWITCH) - Switch allows eliminating hum
noise loops.
4. POWER REMOTE connector
5. POWER ON DELAY - power on delay selection switch.
6. USB type B connector.
7. GPI/GPO
8. POWER OUTPUTS
9. POWER/STANDBY switch
10. INPUT - audio inputs for channels A or B (CH A, CH B).
Fan cooling
The power amplifier has two fans. The fans are switched in three performance-optimized
levels, for example they are not running permanently but the speed of the fans is controlled
depending on the temperature. That in return ensures very silent operation during idle state.
The temperatures of the power amp's channels are supervised and monitored individually.
6.2
6.3
18 en | Controls, indicators and connections
L Series and C Series FIR-Drive Power
Amplifiers
2017.10 | 02 | F.01U.327.801 Installation manual Bosch Sicherheitssysteme GmbH
