Paging Console
Owner‘s Manual 7

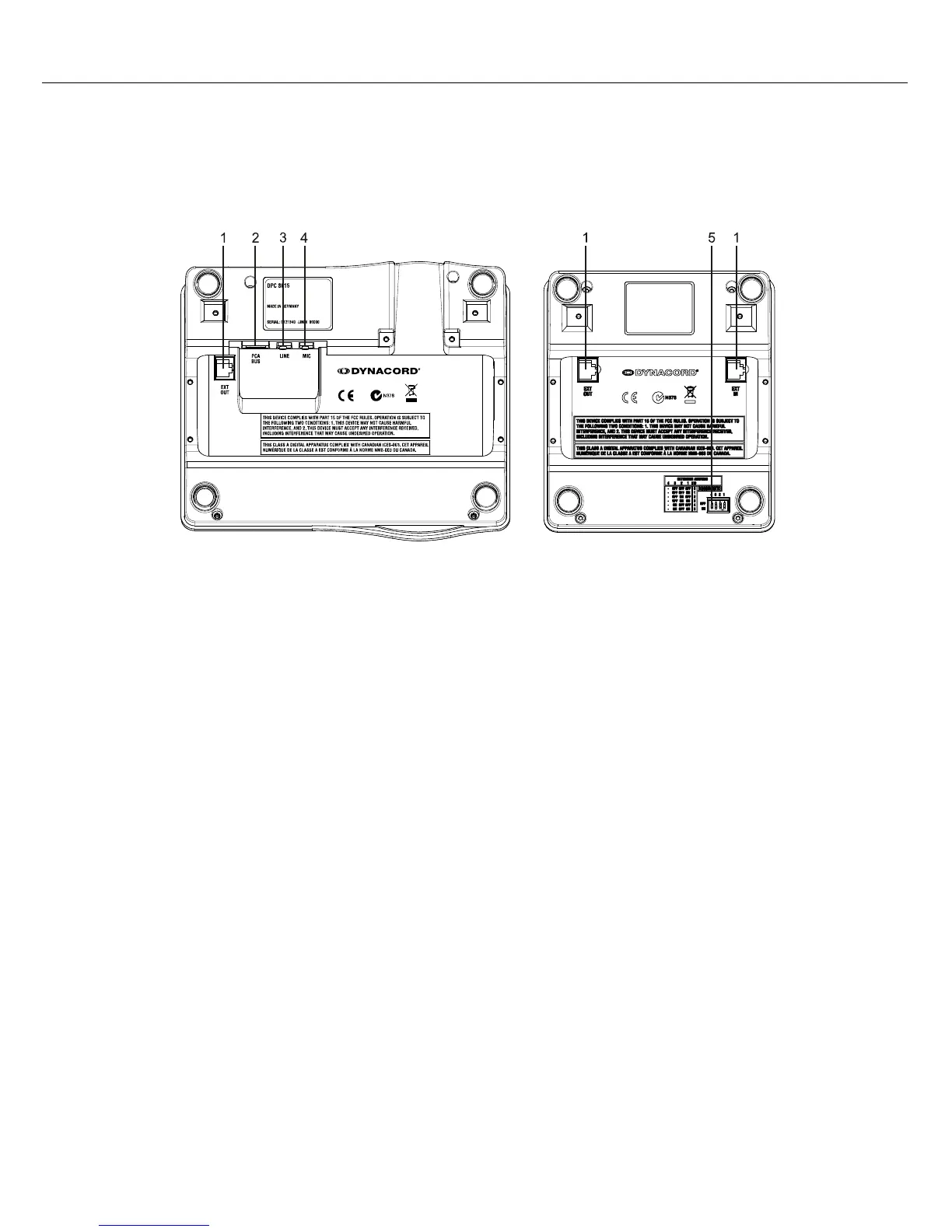

Bottom view
1 EXT interface Interface for DPC 8120 paging console extension
2 PCA BUS port Interface for PROMATRIX 8000 System Controller
3 LINE/PTT interface Interface for external audio source or PTT switch
4 MIC interface Interface for external microphone
5 EXTENSION ADDRESS DIP switch for address selection of paging console extension
