will not increase any further. This creates a dead-band in throttle operation. However,
below the speed limit the behaviour of the throttle does not change.
Scale — Scales the throttle output. This means that if SRW Speed Scale is set to 50%, the
throttle will only ask for 50% speed at full deflection. This does not create a throttle dead-
band. However, it changes the behaviour of the throttle over the full range of deflection.

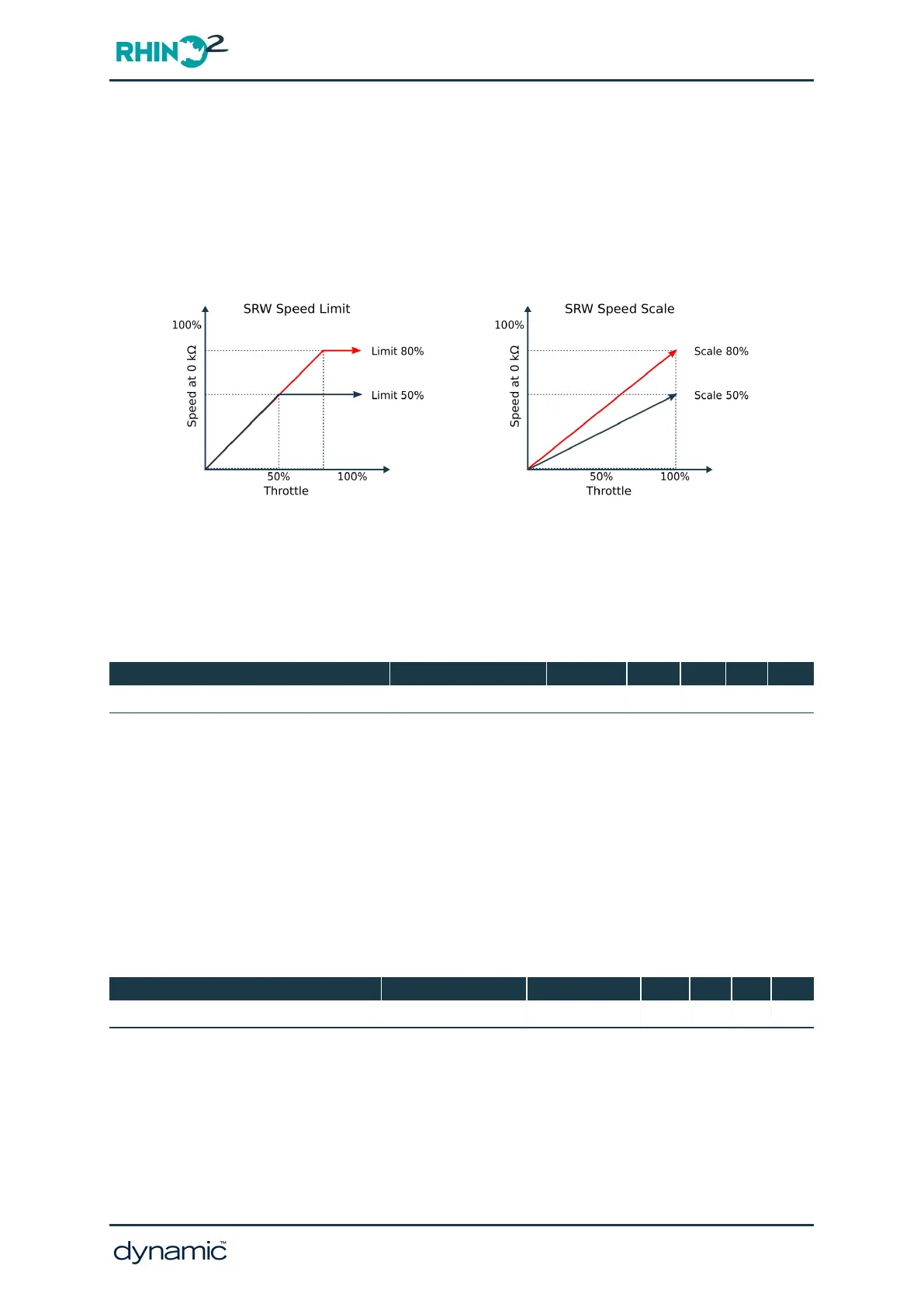

Figure 54: SRW Speed Limit and Speed Scale
All four parameters reduce the speed simultaneously and independently of each other. If
any of the parameters is set to 100%, it disables the reduction effect of that specific
parameter.
6.5.3.16 SRW Scaling Resistor (Ohm)
Parameter Possible Values Default HHP Lite Std Adv
SRW Scaling Resistor (Ohm) 400 - 25500Ω 3200Ω
✓ ✓
Sets the maximum resistor value to be used in the SRW circuit when Pin [x] Function, where
‘x’ is 4, 6 or 12, is set to SRW (variable). Its range is 400 to 25500Ω in steps of 100Ω. The
value set here corresponds to the input resistance that results in no reduction in speed.
Note that this value must be set at least 5% lower than the actual maximum resistor value
connected to the pin to allow for component tolerance, otherwise, maximum speed might
not be achieved.
This parameter is only available for editing if Pin [x] Function, where ‘x’ is 4, 6 or 12, is set
to SRW (variable).
6.5.3.17 SW Current Limit Decel Scalar
Parameter Possible Values Default HHP Lite Std Adv
SW Current Limit Decel Scalar 6 – 94% 75% (DS90)
✓
This parameter is applied if the software current limit is exceeded due to regenerative
currents. When applied, it will reduce the deceleration rate of the scooter in an attempt to
slow down the current increase. This parameter should be set as high as possible to
minimise the impact on stopping distance.
GBK51948 RHINO2
Installation Manual Issue 5
Programming - Page 91
