20 CA 252/302/402 M252EN6
EVERY 250 HOURS OF OPERATION (Monthly)
1
Drum cartridge
– Checking the oil level
Position the machine level so that the indicator pin (1)
on the inside of the drum is aligned with the top of the
drum frame.
Fig. 26 Left side of drum
1. Indicator pin

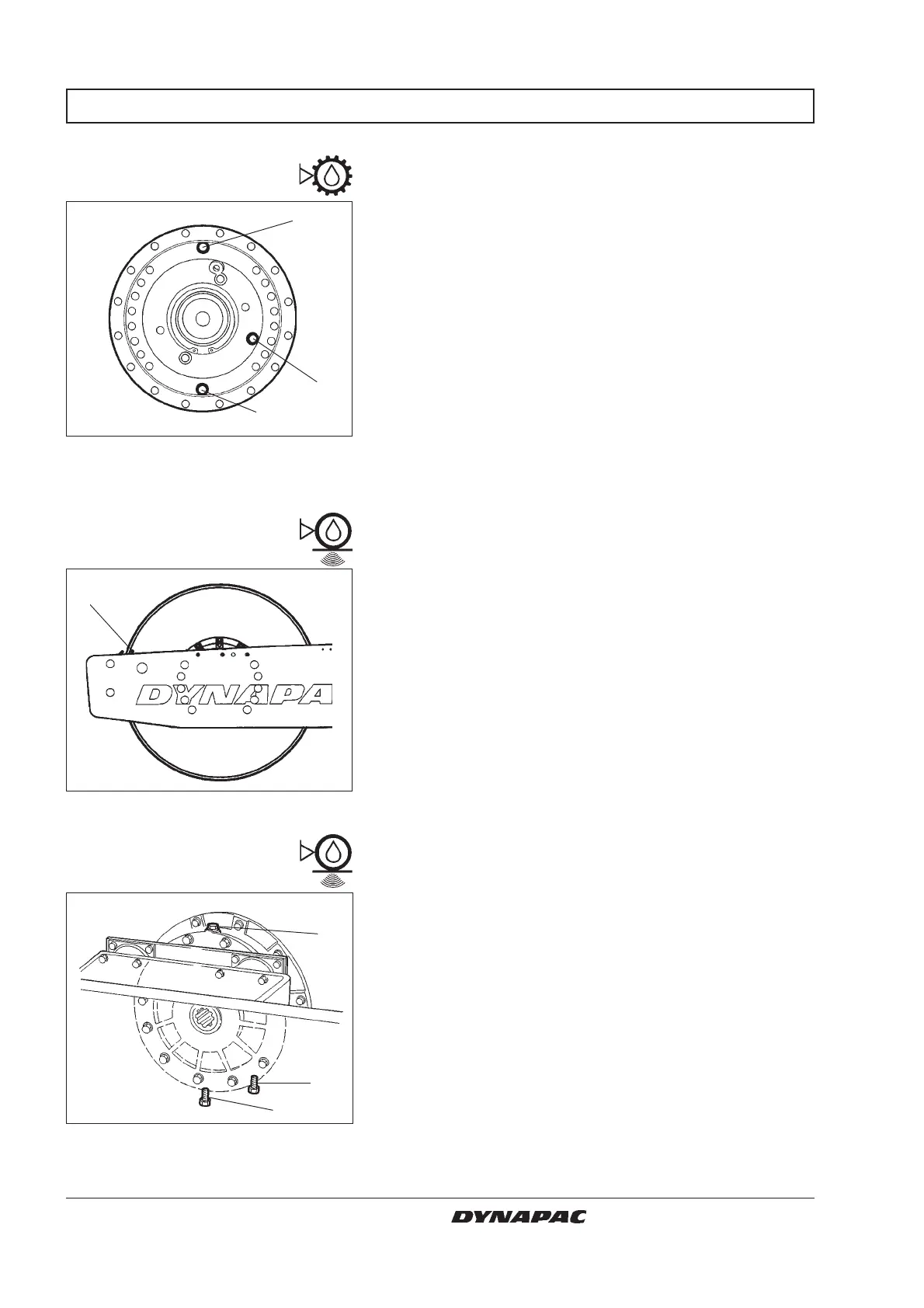

Fig. 25 Oil level check – Drum gearbox
1. Oil level plug
2. Filler plug
3. Drainplug
Drum gearbox
– Check oil level
1
2
Wipe clean the area around the plug (1) and then undo
the plug.
Ensure that the oil level reaches up to the lower edge of
the plug hole.
Top off with oil to the right level if the level is low. Use
transmission oil according to the lubricant specification.
Position the roller with the filler plugs (2) straight up.
Clean and screw in the plugs tightly.
3
Fig. 27 Roller, right-hand side
1. Filler plug
2. Drain plug
3. Level plug
Drum cartridge
– Checking the oil level
1
2
Wipe the filling plug and level plug clean from dirt.
Unscrew the filling plug (1)
3
