Dynapac CA 252 - Maintenance Schedule

8 CA 252/302/402 M252EN6
MAINTENANCE SCHEDULE
1 2 3 4 5 6 7 8 9 10 38 39 37 11 12 13
26 25 24 23 22 21 20 19 36 35 34 18 17 16 15
14
33
32
31
30
29
28
27

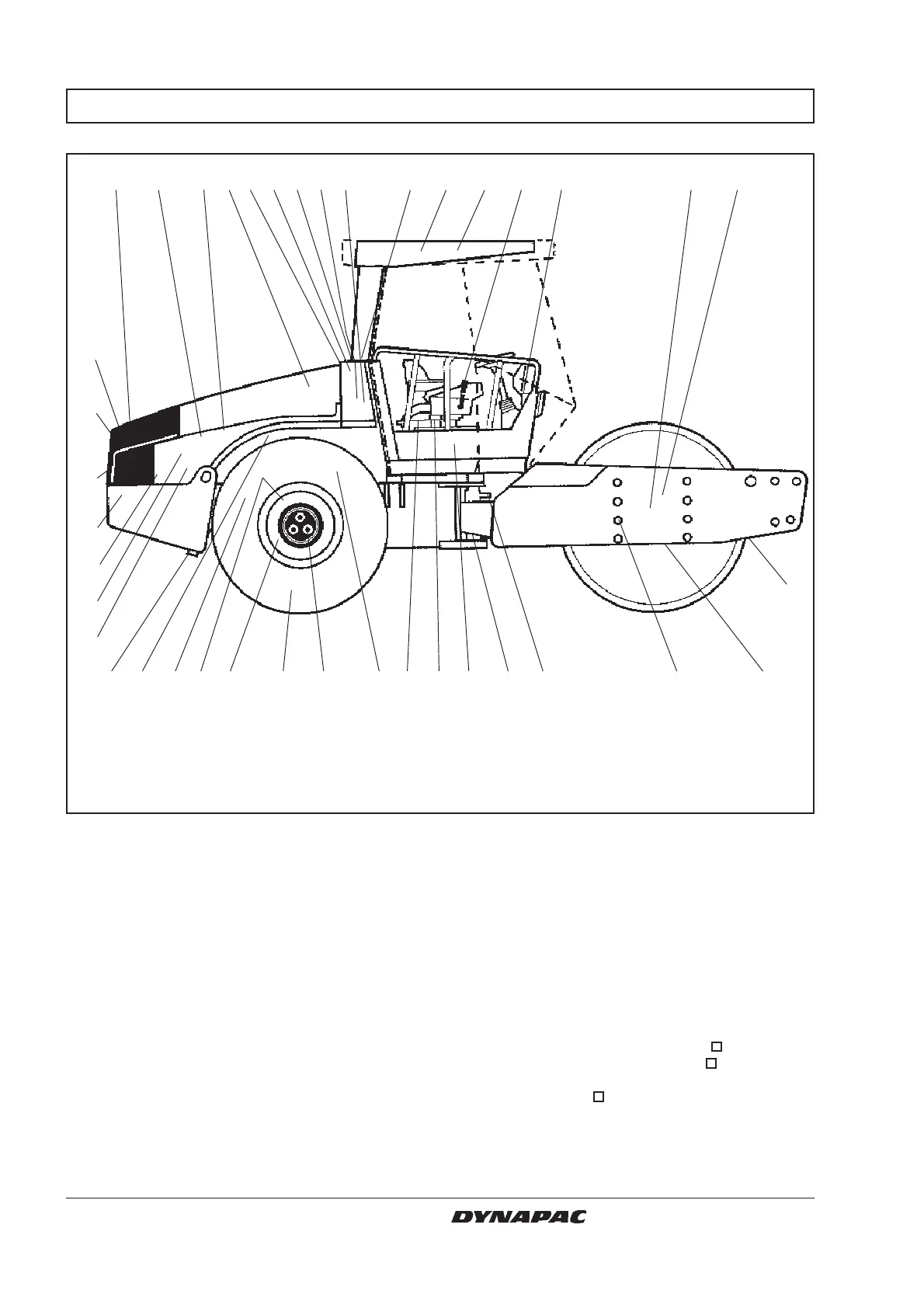

Fig. 1 Service and maintenance points
1. Radiator grille
2. Oil level, diesel engine
3. Fuel filter, initial fuel filter
4. Air filter
5. Engine cover, hinges
6. Hydraulic fluid reservoir,
sightglass
7. Bleeding filter
8. Hydraulic fluid filters (2 filters)
9. Drainage, hydraulic fluidreservoir
10. Hydraulic fluid, filler
11. Fuse-box
12. Drum cartridge, filling, 2 fillers
13. Drum gearbox
14. Scrapers
15. Drum cartridge oil, level plugs, 2 pcs.
16. Rubber elements and attachment
screws
17. Steering joint
18. Steering cylinders, 2 pcs.
19. Flywheel casing, hydraulic pumps
20. Wheel nuts
21. Tires, pressure
22. Rear axle, differential
23. Rear axle, planetary gears, 2 pcs.
24. Rear axle suspension, 2 sides
25. Oil filter, diesel engine
26. Drainage, fuel tank
27. Diesel engine mountings, 4 pcs.
28. Feed pump, fuel
29. Diesel fuel, filler
30. Battery
31. Radiator
32. Hydraulic fluid cooler
33. Drive belts, cooling, alternator
34. Steering chain
35. Seat bearing
36. Steering chain
37. Forward/Reverse lever
38. Air conditioner
39. Fresh air filter
= Optional
