The machine is equipped with a 12 V electrical system
and an alternator.
Connect the battery to the correct polarity (- to
ground). The cable between battery and
alternator must not be disconnected while the
engine is running.
Before doing any electric welding on the
machine, disconnect the battery ground cable
and then all electrical connections to the
alternator.
Flat pin fuses located in the fuse boxes protect the
electrical regulating and control system. The fuse
boxes indicated by the figures are located in the
steering column.
Fuses

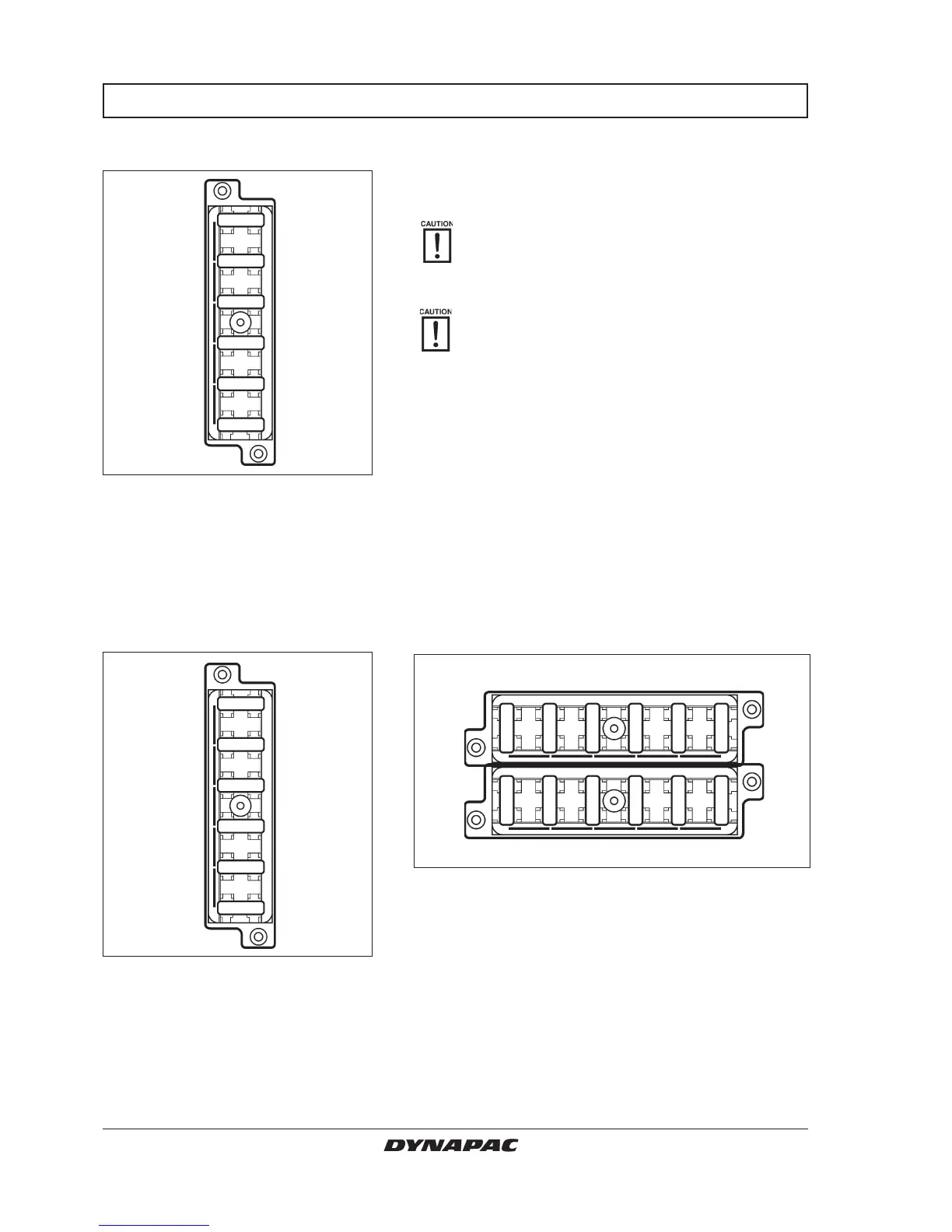

Fig. 54 Left fuse box (standard)
10 A 1. Brake valve, warning panel,
hourmeter
7.5 A 2. Vibration relay
10 A 3. Water pump, neutral relay
7.5 A 4. Horn, fuel gauge
7.5 A 5. Water pump (combo),
speedometer
7.5 A 6. Reversing signal, flow manifold,
frequency meter
Fig. 55 Right fuse box (accessories)
15 A 1. Front headlight, L position lights,
R taillight
15 A 2. Rear headlight, R position lights,
L taillight, license plate lighting
5 A 3. Direction indicator, right
5 A 4. Direction indicator, left
10 A 5. Hazard beacon
10 A 6. Flasher relay
The figure shows the ampere rating and function of the
different fuses.
The left fuse box is found in all machines.
The right fuse box is provided only in machines
equipped with electric accessories. The figures show
the fuse boxes located in the cab, if fitted.
Fig. 56 Fuse boxes in cab (accessories)
10A 1. Front working lights
15A 2. Front wiper
3A 3. Front washer
15A 4. Fan
10A 5. Rear working lights
15A 6. Rear wiper
7.5A 7. Hazard beacon
3A 8. Interior lighting
5A 9. Radio connection
10. –
11. –
25 A 12. Radio memory, heater
1 2 3 4 5 6
7 8 9 10 11 12
1
2
3
4
5
6
1
2
3
4
5
6
ELECTRICAL SYSTEM, FUSES
