Miscellaneous
ICC1200-1EN2.pdf 2011-03-21
1 2
3

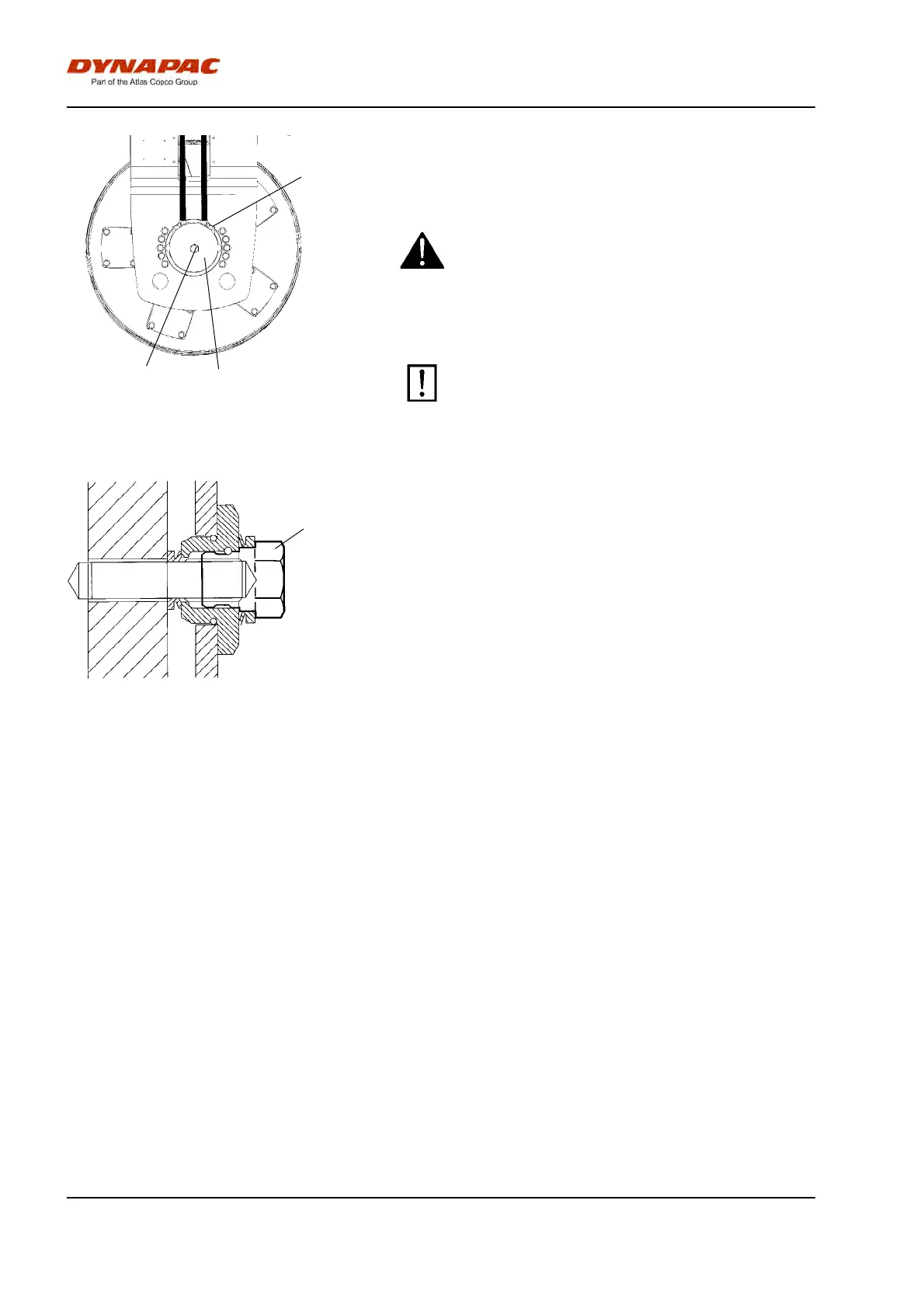

Fig. Left drum side
1. Release screw
2. Brake housing
3. Drive motor
Releasing the brake, High torque motor
(Optional) (p/n 4700380594)
Activate the parking brake, and stop the engine.
Block the drum with a chock to prevent movement;
the roller can start rolling when the brakes are
released.
Activate the parking brake, and stop the engine.
Block the drum with a chock to prevent movement;
the roller can start rolling when the brakes are
released.
The disc brakes in each drive motor must be
released mechanically as shown below before the
towing the roller.
The disc brakes in each drive motor must be
released mechanically as shown below before the
towing the roller.
1
Fig. Brake housing
1. Release screw
Use a key with an 18 mm socket.
Disengaging the brakes
Turn the same screws a 1 1/2 turn anticlockwise to
activate the brakes again after towing.
50
