Dynapac CC1200 User Manual

Maintenance - 10h
ICC1200-1EN2.pdf2011-03-21

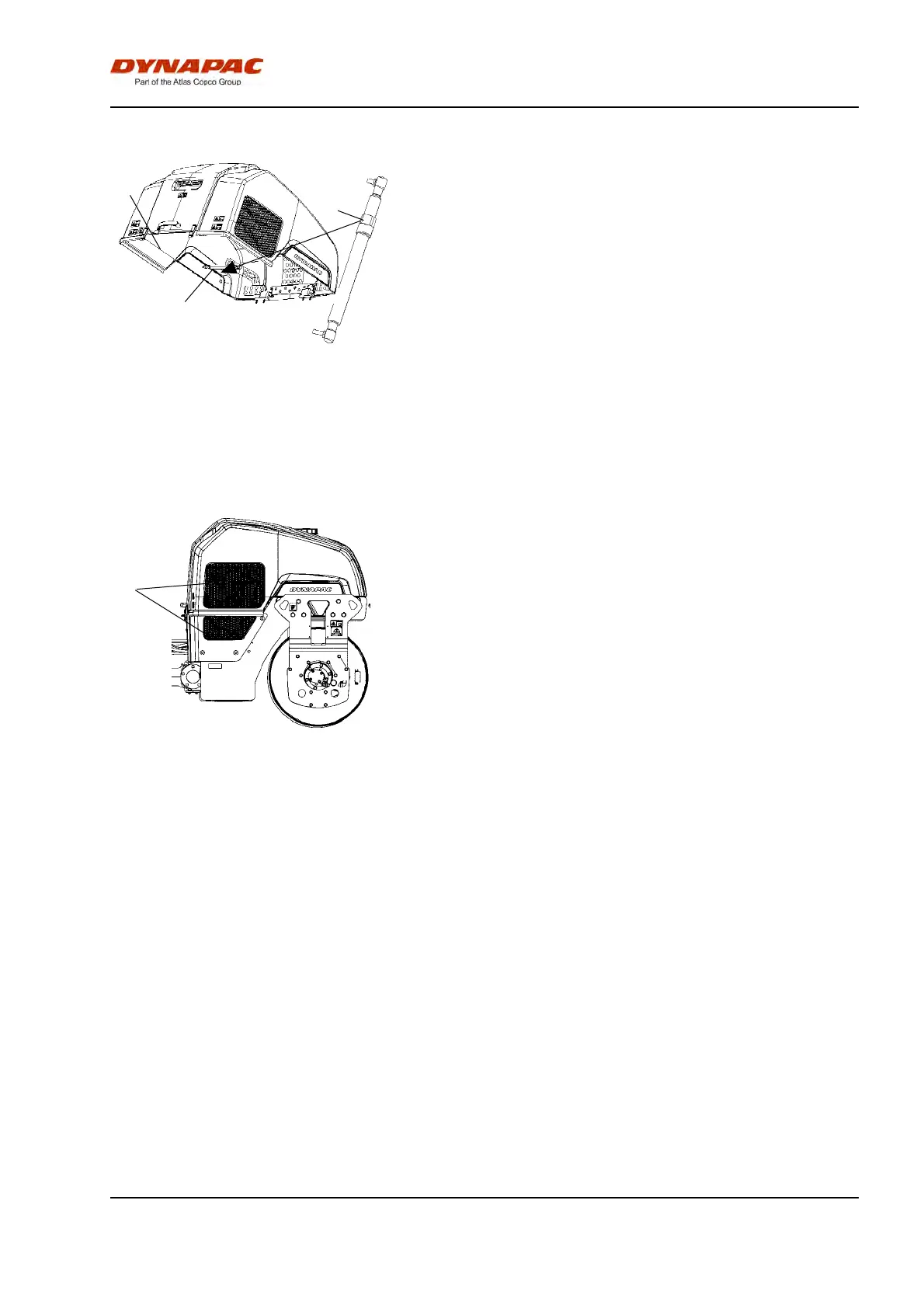

Lowering of engine hood
Fig. Engine compartment
1. Engine hood
2. Gas spring
3. Button
1
2
3
Stand on the left side of the engine hood. Press in the
red button (3) and carefully lower the engine hood
until the gas spring (2) goes into the slot. Release the
red button (3) and then lower down the engine hood
completely.
Stand on the left side of the engine hood. Press in the
red button (3) and carefully lower the engine hood
until the gas spring (2) goes into the slot. Release the
red button (3) and then lower down the engine hood
completely.
Air circulation - Check
Fig. Right drum side
1. Cooling air grille
1
Check that the engine has free circulation of cooling
air through the grille (1) in the engine compartment.
65
