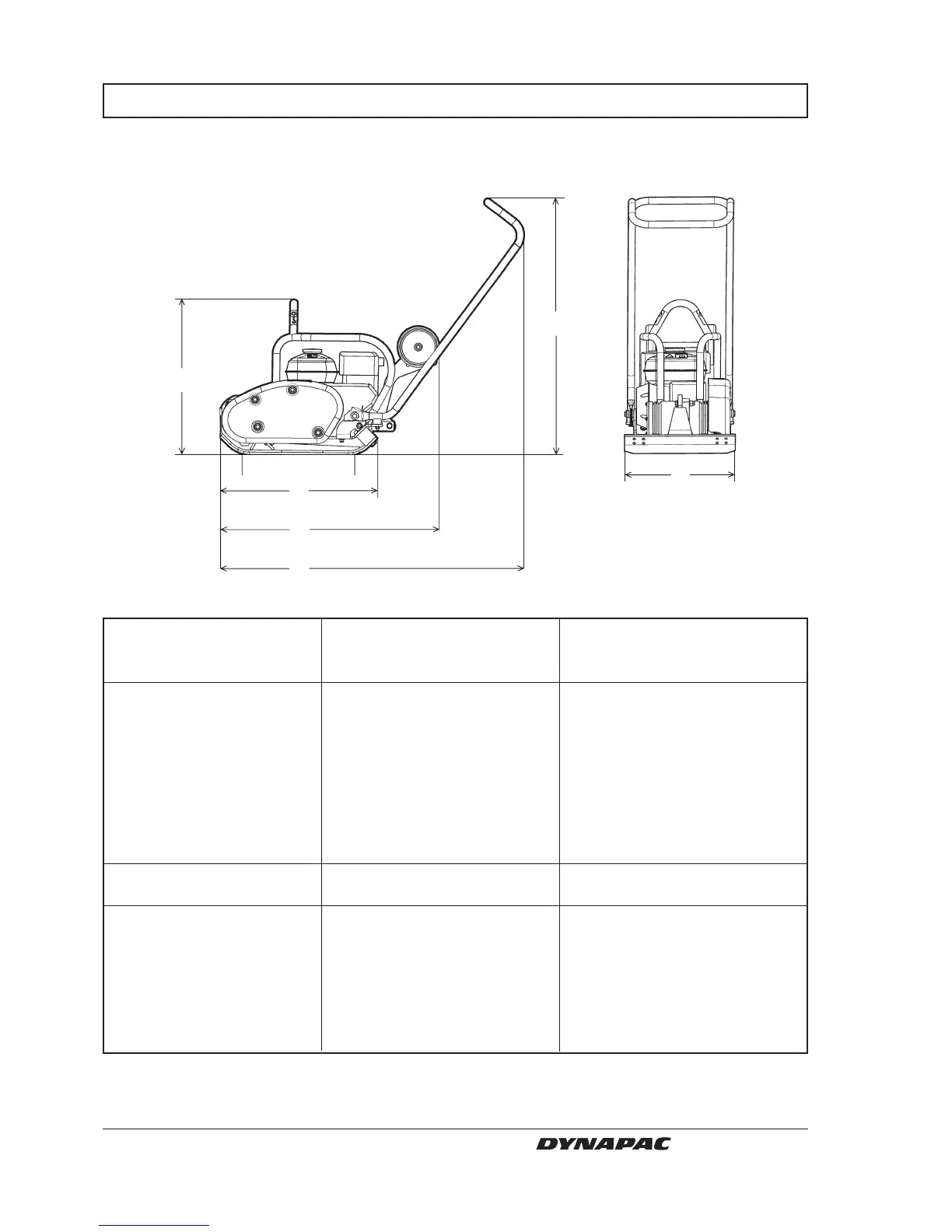

TECHNICAL DATA – DIMENSIONS
CONTACT AREA
B
D
E
C
L000603A
L000599A
A
F
LF90 LF90
Honda Hatz
A mm (inch) 1152 (45.4) 1152 (45.4)
848 (33.4) (Handle raised) 848 (33.4) (Handle raised)
B mm (inch) 505 (19.9) 505 (19.9)
C mm (inch) 591 (23.3) 630 (24.8)
D mm (inch) 950 (37.4) 950 (37.4)
E mm (inch) 647 (25.5) 647 (25.5)
F mm (inch) 848 (33.4) 848 (33.4)
Contact area, m
2
(sq feet) 0,25 (2.7) 0,25 (2.7)
Accessories Water sprinkler for Water sprinkler for
asphalt work asphalt work
Transport wheels Transport wheels
Catalytic converter Paving brick kit
Paving brick kit Vibration-damped handle
Vibration-damped handle
