15LF90 ILF090EN2
LIFTING, SALVAGING AND TRANSPORT
Lifting/Salvaging
Transportation
Never walk or stand underneath a hoisted
machine.
Use only the frame lifting hook (1) to lift the
machine.
All lifting equipment must be dimensioned in
conformance with current regulations. Ensure
before lifting that the shock absorbers (2) are
securely fixed and undamaged.
Always secure the machine firmly during
all transportation. Place lashing band in a
U shape around the bottom plate and
secure both front and rear.

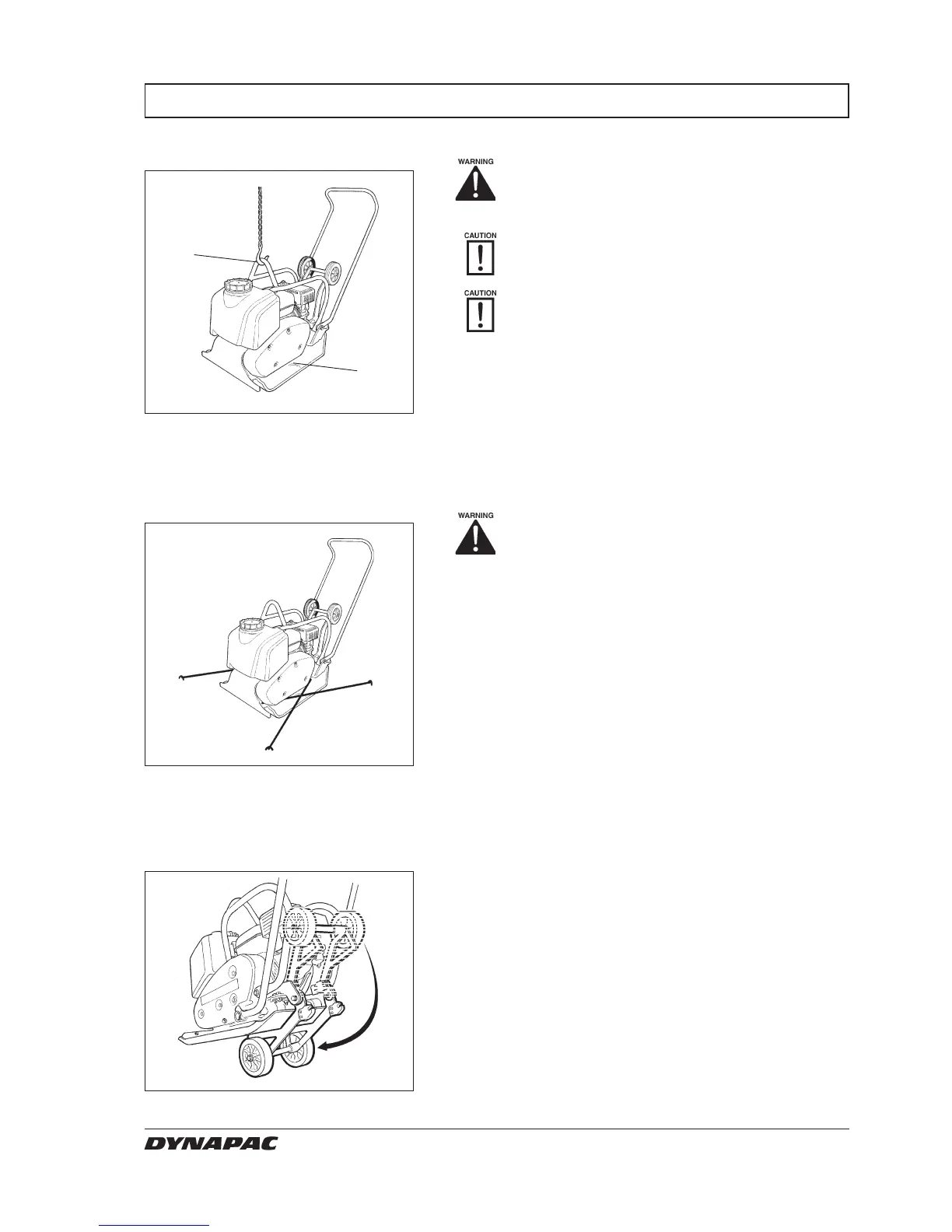

Machine ready for lifting
1. Lifting hook
2. Shock absorbers
Machine ready for transportation
1. Lashing strap
Transport wheels (Optional)
Fold the wheels in under the bottom plate to facilitate
manual transport.
Transport wheel set art. no.: 38 86 84.
L000590A
1
2
L000605B
L000606B
