Dynapac LH 700 - Technical Data - Dimensions

12
LH 300/700 ILH300EN4
LH 300 LH 700
A mm (inch) 1430 (56) 1880 (74)
B mm (inch) 450 (18) 660 (26)
C mm (inch) 720 (28) 795 (31)
D mm (inch) 1090 (43) 1180 (46)
E mm (inch) 820 (32) 1050 (41)
Contact area,
m
2
(sq feet) 0,173 (1.86) 0,290 (3.12)
Tillbehör LH 300 LH 700
Extension plates
Width, mm (inch) 2x75=150 (2x3=6) / 2x75=150 (2x3=6) /
2x125=250 (2x5=10) 2x150=300 (2x6=12)
Weight, kg (lbs) 9.2 (20) / 13.6 (30) 14.6 (32) / 24.6 (54)
Contact area, Width Width
m
2
(sq feet) 150 (6): 0.231 (2.49) 150 (6): 0,356 (3.83)
250 (10): 0.270 (2.91) 300 (12): 0.422 (4.54)

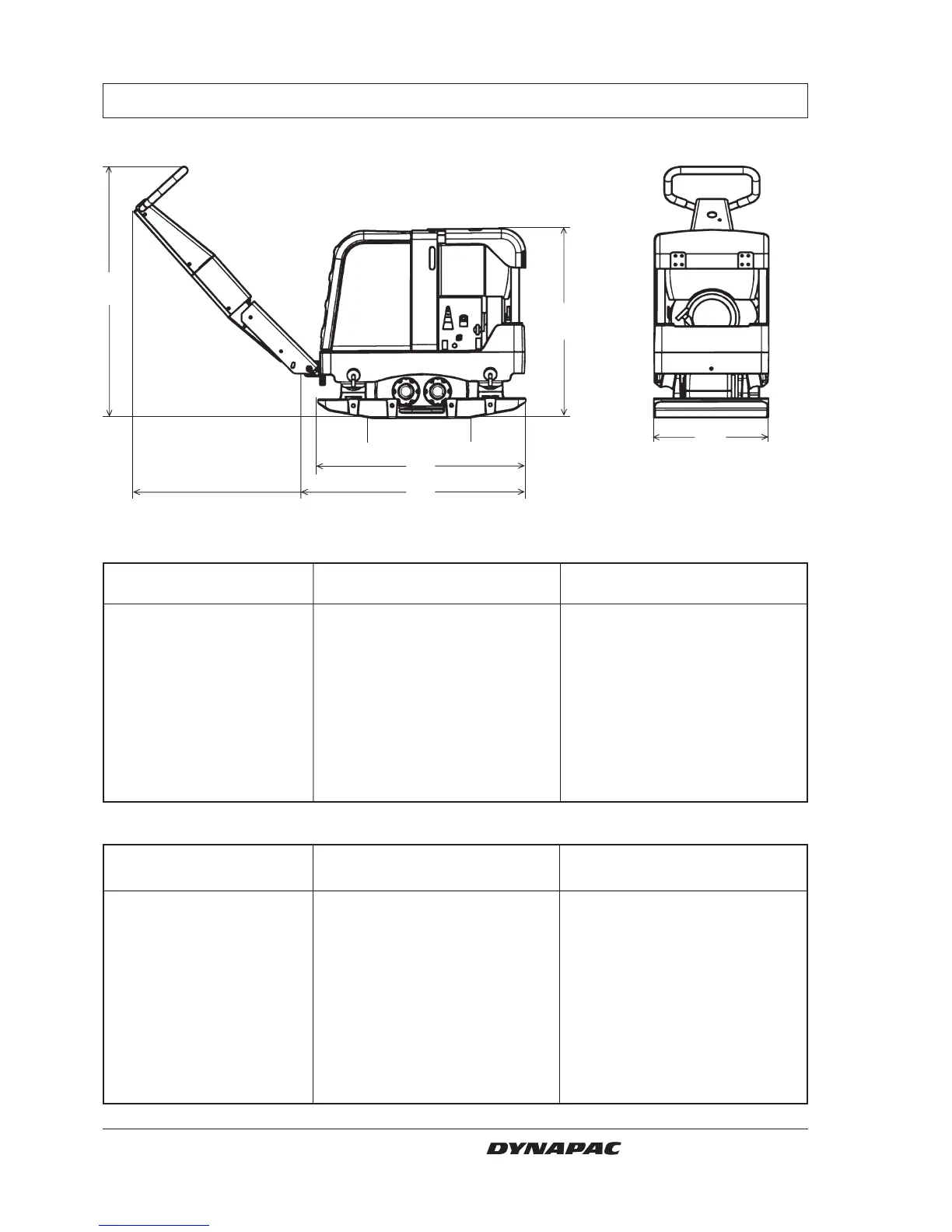

TECHNICAL DATA – DIMENSIONS
B
CONTACT AREA
E
D
A
C
L000436
L000425A
