Dynapac LH 700 - Handle Adjustments; Kontrollampor - LH 700

14
LH 300/700 ILH300EN4

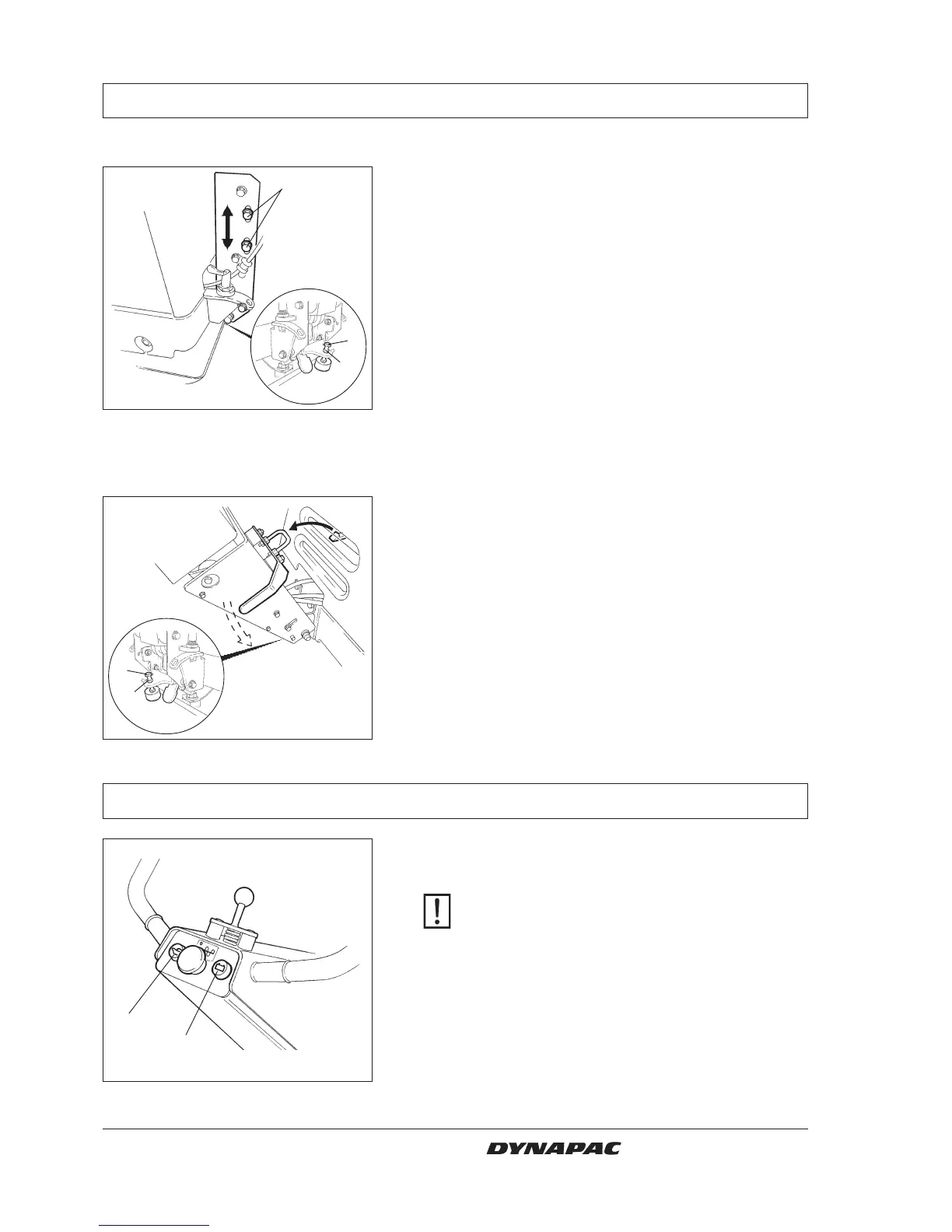

HANDLE ADJUSTMENTS
LH 700
LH 300
1
KONTROLLAMPOR – LH 700
2
1
3
2
3
2
L000439
L000438
L000439
L000440
L000441
LH 300 and 700
The operation angle of the handle can be adjusted
by loosening the bolt (2) and tightening it in desired
position. Loosen the bolt and lock nut (3) and pull
them to the desired position.
LH 300
Handle stiffness can be adjusted by loosening the
bolts (1). The flex of the shock absorbers can be
adjusted by moving the pins outward for a stiffer
handle with more control, or inward for a softer but
more de-vibrated handle.
1. Stiffness adjustment bolt
2. Angle adjustment bolt
3. Lock nut
2. Angle adjustment bolt
3. Lock nut
The LH 700 has two warning lamps, one for oil pres-
sure (1) and one for charging (2).
The charging and oil pressure lamps must be
extinguished during normal operation. If the
lamps do not go out, stop the machine and
take corrective action.
1. Oil pressure lamp
2. Charging lamp
CAUTION
