19
LH 300/700 ILH300EN4

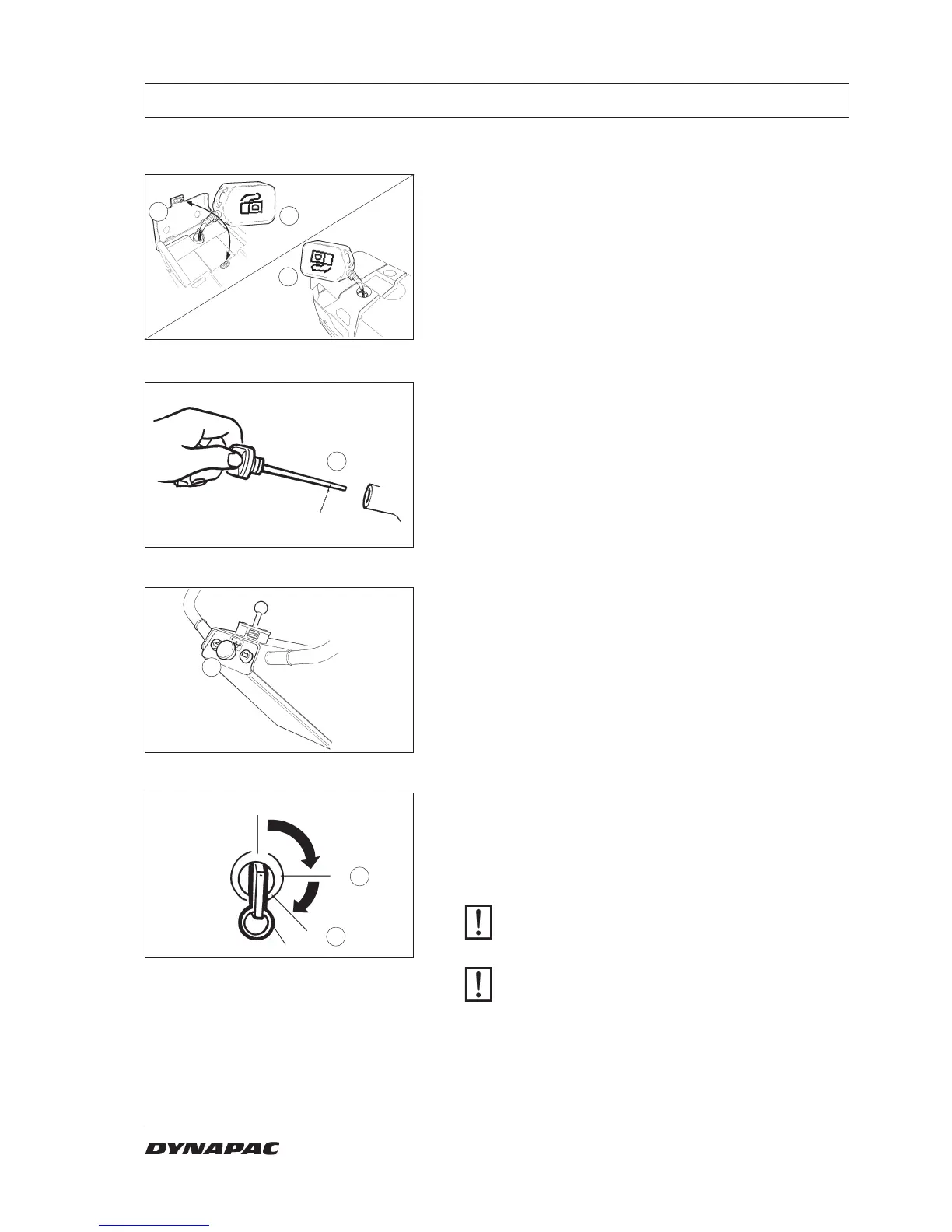

OPERATION – HATZ 1B30, 1D90V, EL.START
Max.
2
Hatz 1B30
Hatz 1D90V
2
3
5
I
II
O
6
III
LH 700
4
L000450
L000455
L000456
L000457
1
L000454
1. Hatz 1B30; open upper cover by pulling it for-
ward.
2. Fill the fuel tank.
Tank volume: Hatz 1B30 5.0 lit. (5.3 qts)
Hatz 1D90V 7.0 lit. (7.4 qts)
Before start
Starting the engine
3. Check the engine oil level.
Oil volume: Hatz 1B30 1.1 lit. (1.2 qts)
Hatz 1D90V 1.9 lit. (2.0 qts)
4. LH 700: Press the emergency knob (vibration
OFF).
5. Insert the starter key and turn it to position I.
Charging and oil pressure indicators light up.
6. Turn the starter key through position II to III.
Release the key as soon as the engine runs.
Ensure that the key stays at mode II.
The charging and oil pressure lamps must be
extinguished during normal operation. If the
lamps do not go out, stop the machine and
take corrective action.
CAUTION
CAUTION
