DI651ST2 User Manual 23

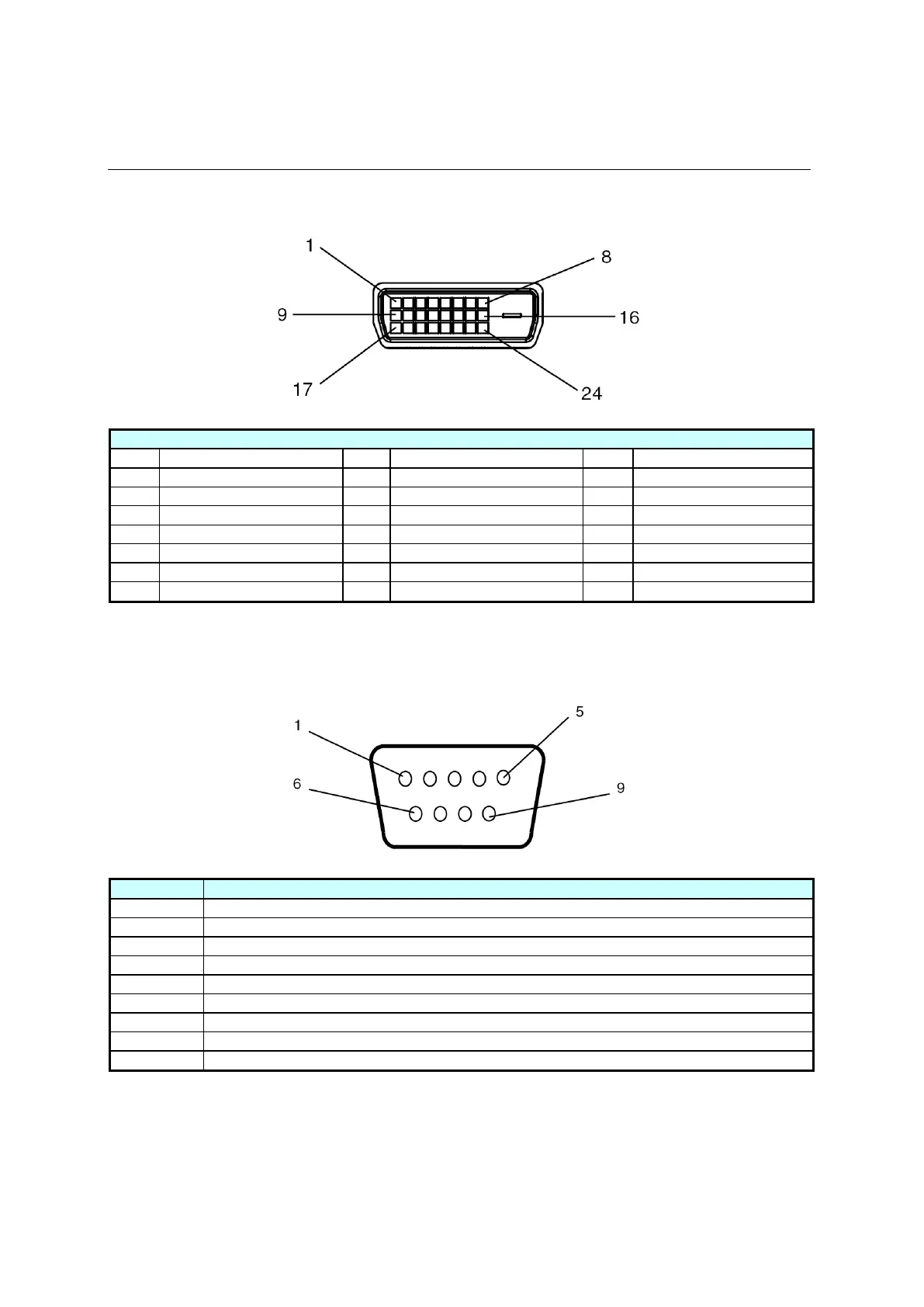

Pin Assignments
Digital RGB Input (DVI-D): DVI
PIN ASSIGNMENT OF DVI CONNECTOR
01
RX2-
09
RX1-
17
RX0-
02
RX2+
10
RX1+
18
RX0+
03
Shield (RX2 / RX4)
11
Shield (RX1 / RX3)
19
Shield (RX0 / RX5)
04
NC
12
NC
20
NC
05
NC
13
NC
21
NC
06
DDC-Serial Clock
14
+5V power
22
Shield (RXC)
07
DDC-Serial Data
15
Ground
23
RXC+
08
NC
16
Hot plug detect
24
RXC-
RS-232 Input
PIN No.
NAME
01
Connected to 7&8
02
TXD
03
RXD
04
Connected to 6
05
GND
06
Connected to 4
07
Connected to 1&8
08
Connected to 1&7
09
NC
