AIR setups
Dynaudio Professional AIR reference manual – 2014-09-28 31
Stereo setup – digital or analog
Stereo setup – digital or analog
Master
Left
System Ctrl.
L + R
Digital (AES) or analog audio signals
Slave
Right

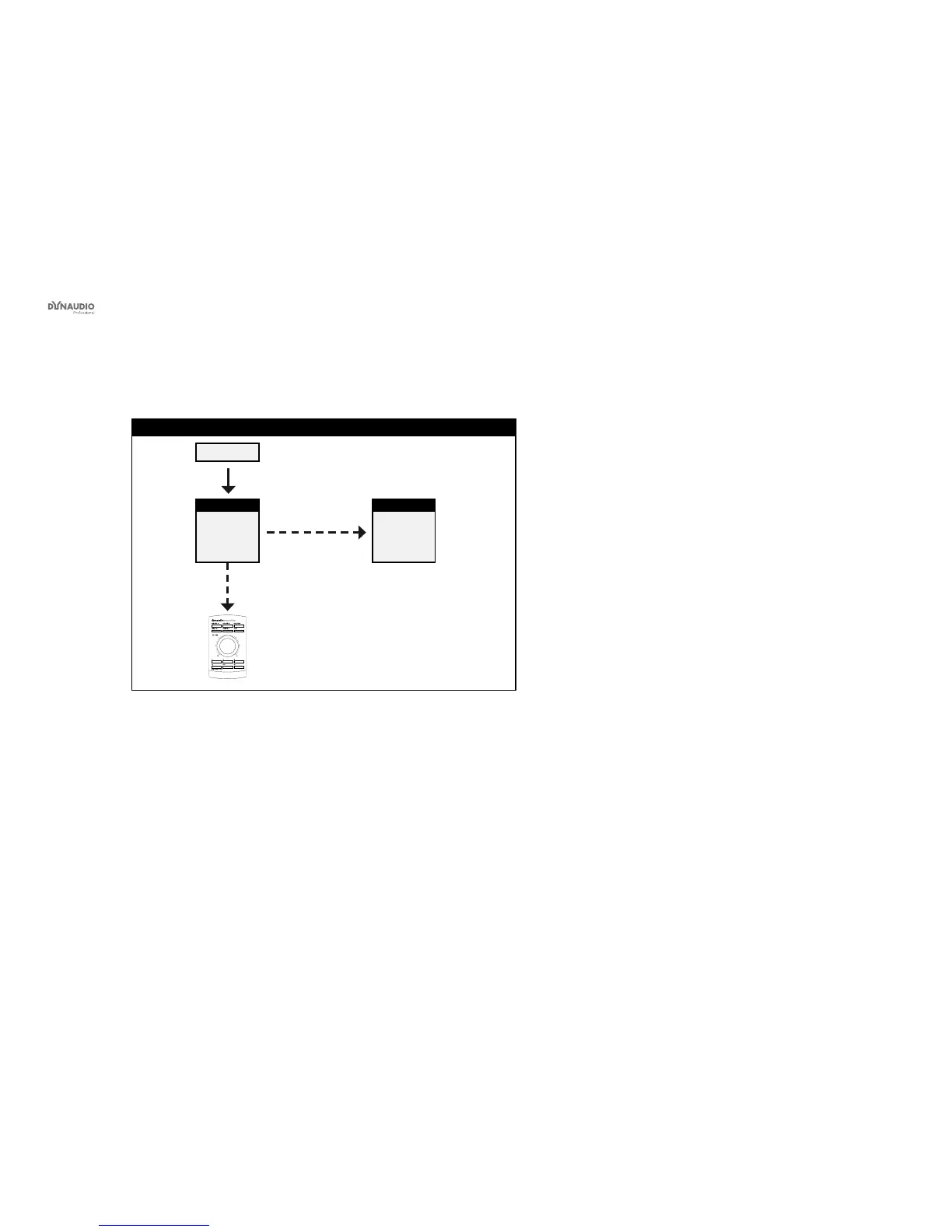

Fig. 13: This illustration shows how to connect a standard stereo setup.
Understanding and using this setup
►
Audio signals are represented by solid lines.
►
TC link signals are represented by dashed lines.
►
The left monitor is set as the System Controller by
setting the TC Link button on the rear panel to the
“out” position.
►
The left monitor receives both the left and right
input signals.
►
The right monitor receives audio via the TC-LINK
RJ-45 connection.
►
The AIR Remote or a computer running the AIR
Control software (both optional) can be connected
to any available TC LINK Out connection.
